MD-224 Hardware Manual Display Control Interface
5-3

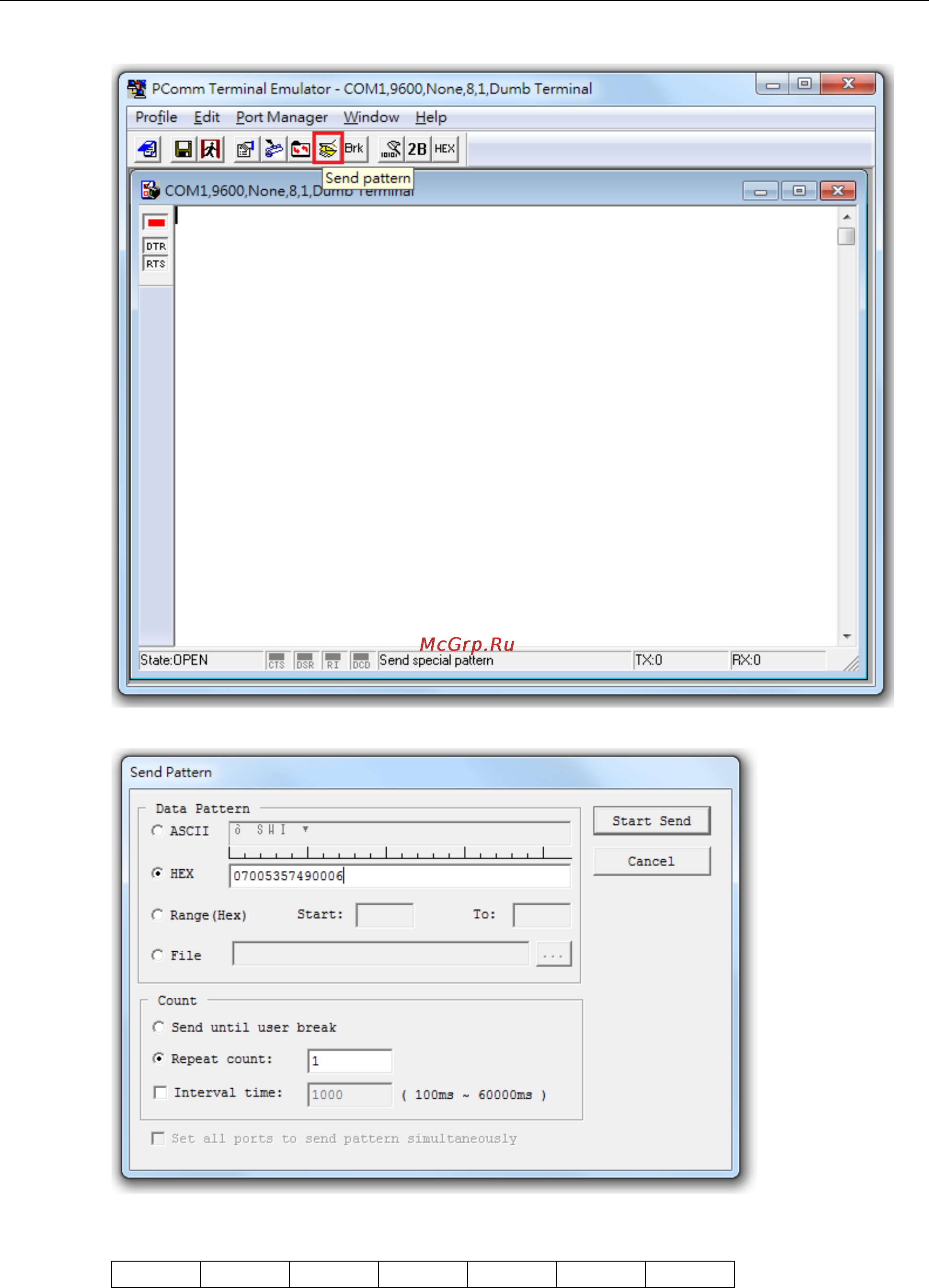

3. After successfully connecting, select the Send pattern tab.
4. At this point, you may enter a command in the HEX field, and then click Start Send to send the command.
The following example queries the firmware version on the scalar board.
Example: Querying the scalar board’s firmware version
0x07 0x00 0x53 0x57 0x49 0x00 0x06
