MC-4510-C23 HW User’s Manual BIOS Setup
4-4

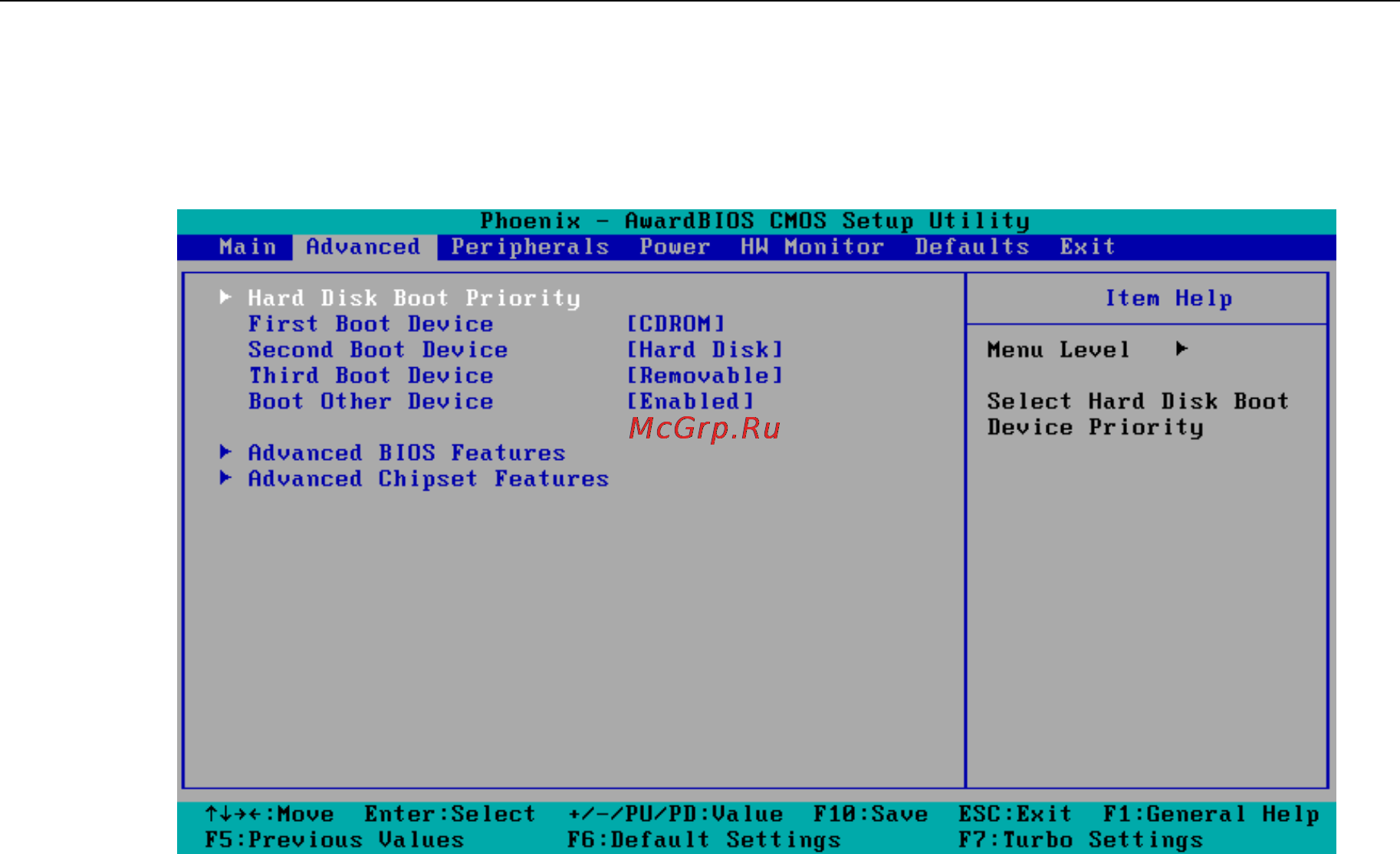

Advanced Settings
The “Advanced Features” screen will appear when choosing the “Advanced” item from the main
menu.
Hard Disk Boot Priority
First/Second/Third Boot Device
This option allows users to select or change the device boot priority. You may set 3 levels of
priority to determine the boot up sequence for different bootable devices, such as a hard drive,
CD-ROM, and removable devices. Select the order in which devices will be searched in order to
find a boot device. The available options are “CDROM (default for first boot device),”
“Removable” (default for third boot device), “Hard Disk” (default for second boot device) and
“Disabled.”
