W321/341 Hardware Setting Up the W321/341

3-2

Installing the W321/341

Wall or Cabinet Mounting

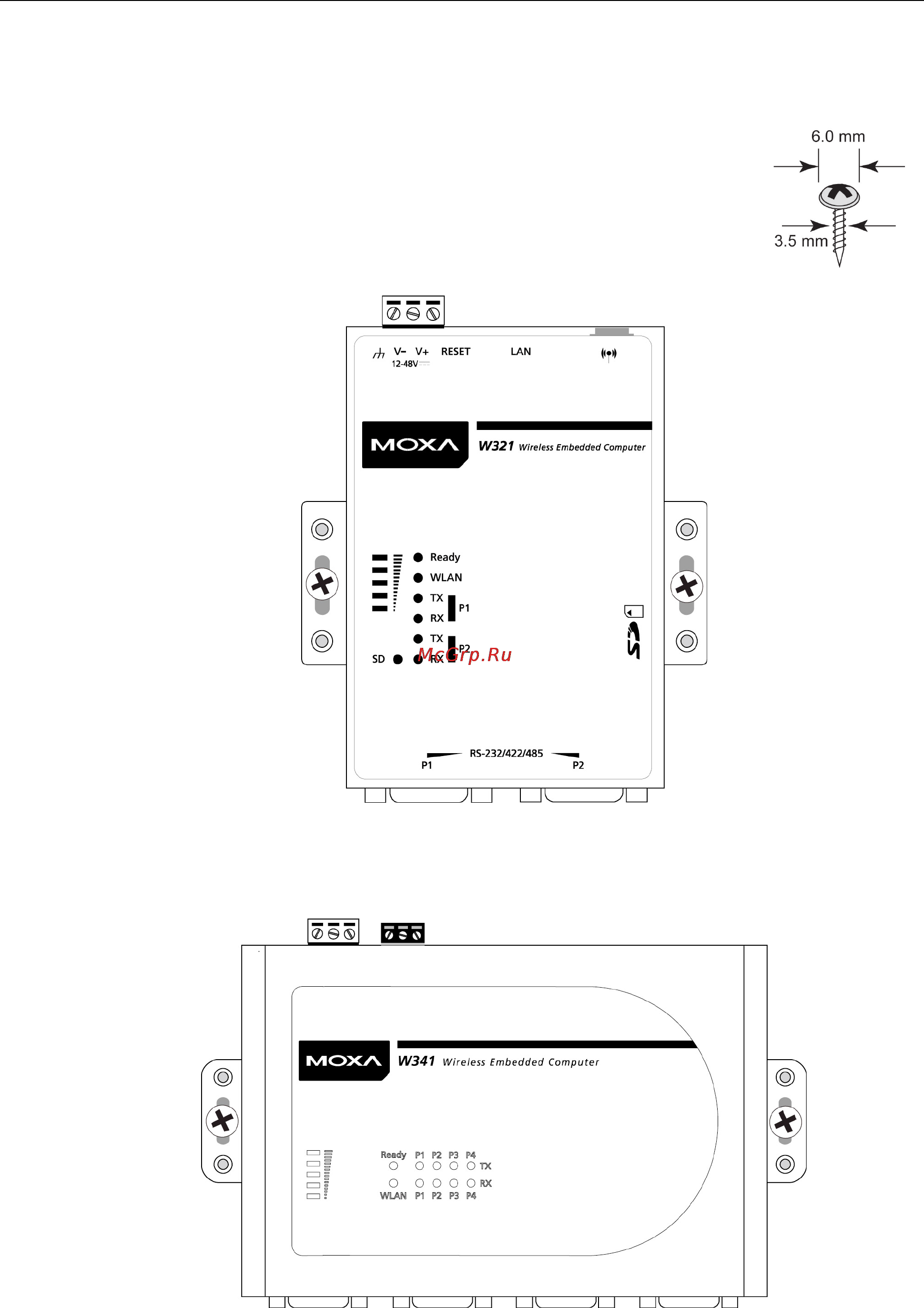

The W321/341 embedded computers have built-in “ears” for attaching the computers

to a wall or inside a cabinet. We suggest using two screws per ear to attach these

computers to a wall or cabinet. The heads of the screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5 mm in diameter, as shown by the

figure at the right.

The W341 comes with two metal attachment plates (“ears”) for attaching the embedded computer to a wall or

the inside of a cabinet. First, use two screws per bracket to attach the brackets to the rear of the W341. Next,

use two screws per bracket to attach the W341 to a wall or cabinet.
