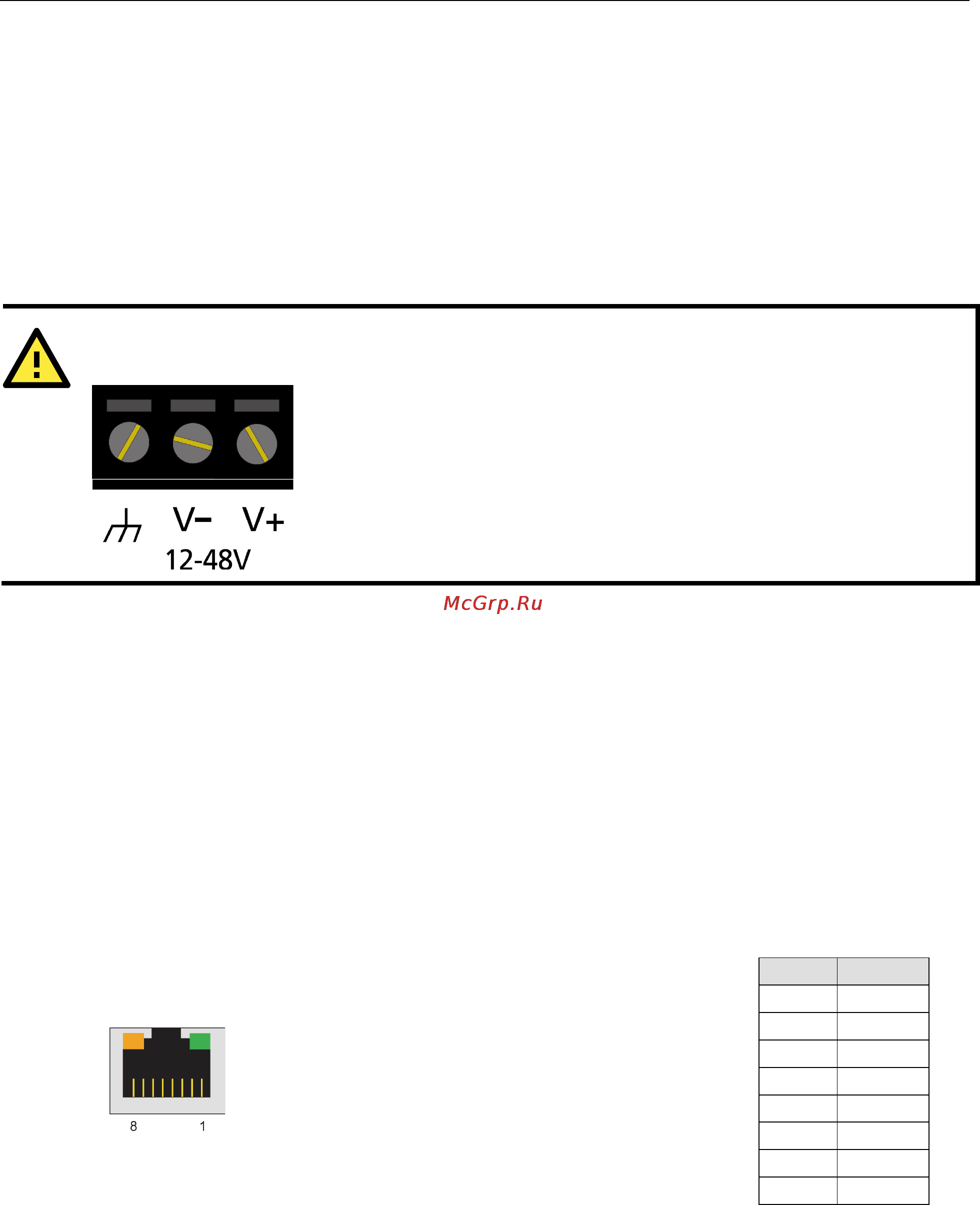

W321/341 Hardware Setting Up the W321/341
3-4
Connecting the Power
Connect the “live-wire” end of the 12-48 VDC power adapter to the embedded computer’s terminal block. When
power is properly supplied, the Ready LED will glow a solid green after a 30-to-60 second delay.
Grounding the Unit
Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Before
connecting any devices, run a ground wire from the ground screw to the grounding surface.
ATTENTION
This product should be mounted to a well
-grounded mounting surface such as a metal panel.
SG:
The
Shielded Ground
(sometimes called Protected Ground) contact
is the left most contact of the 3
-
pin power terminal block connector,
as viewed from the angle shown here. Connect the SG wire to an
appropriate grounded metal surface.
Connecting Data Transmission Cables
This section describes how to connect cables for the network, serial devices, and serial COM terminal.
Connecting to the Network
Plug your network cable into the embedded computer’s Ethernet port. The other end of the cable should be
plugged into your Ethernet network. When the cable is properly connected, the LEDs on the embedded
computer’s Ethernet port will glow to indicate a valid connection.
The 10/100 Mbps Ethernet LAN port uses 8-pin RJ45 connectors. The following diagram shows the pinouts for
these ports.
The LED indicator
on the right glows a solid green color when
the cable is properly connected to a 100 Mbps Ethernet
network. The LED will flash on and off when Ethernet packets
are being transmitted or received.
The LED indi
cator on the left glows a solid orange color when
the cable is properly connected to a 10 Mbps Ethernet network.
The LED will flash on and off when Ethernet packets are being
transmitted or received.
Pin Signal
1 ETx+
2 ETx-
3 ERx+
4 ---
5 ---
6 ERx-
7 ---
8 ---
Connecting to the WLAN
The wireless embedded computer is WLAN ready and includes an 802.11 b/g/n WLAN module. It supports WEP,
WPA and WPA2 data encryption. To verify WLAN operation, first configure your WLAN settings on the
embedded computer using the serial console or a wired network connection. Please refer to the software user’s
manual for further detail.
