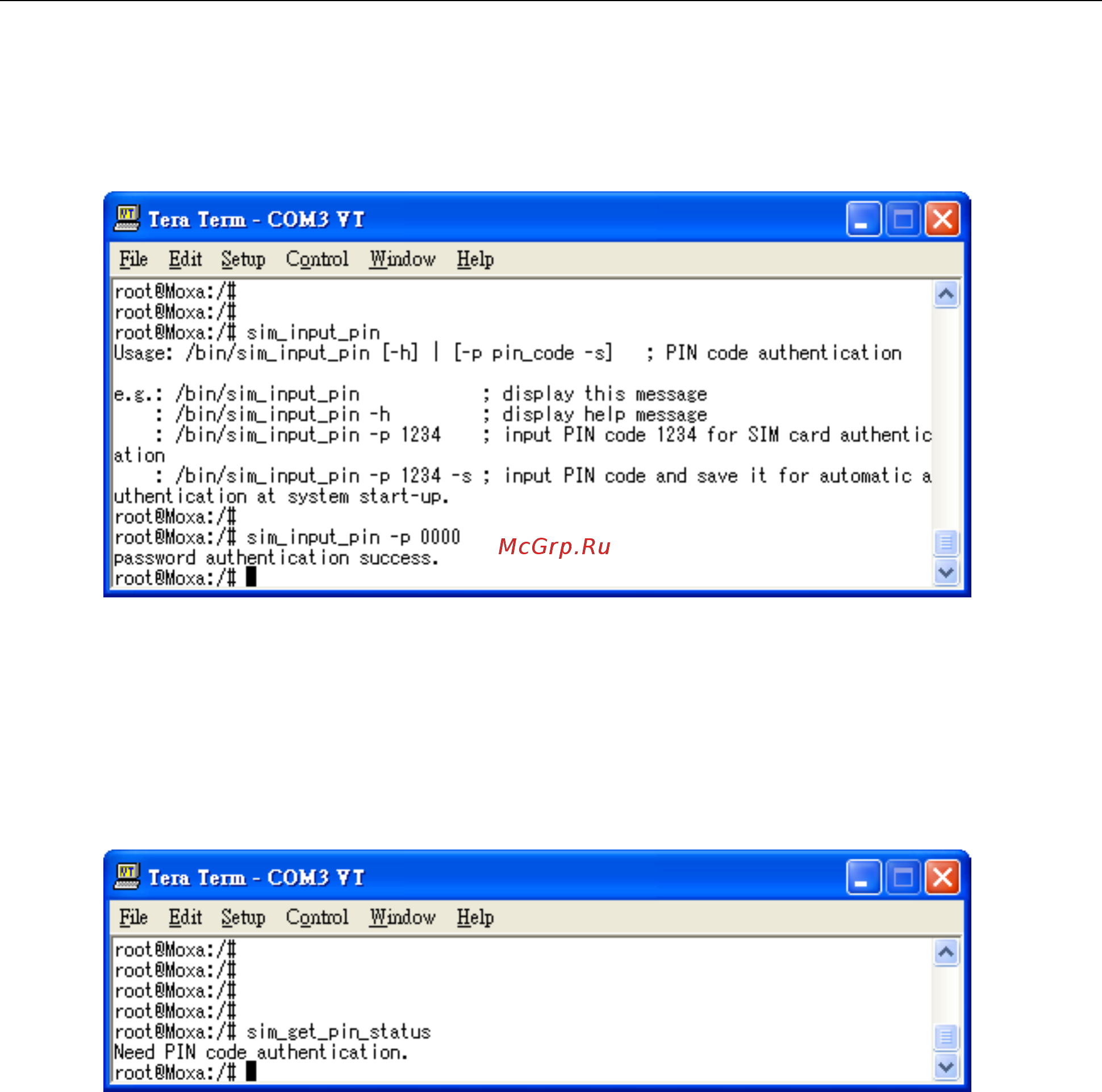

W315A/325A Linux User's Manual Getting Started
2-5
Entering the PIN Code
Use the sim_input_pin –p PIN code command to enter the PIN code. For example, type sim_input_pin –p
0000 to enter the PIN code 0000.
To save the PIN code and perform automatic authentication for a GPRS connection, add –s after the PIN code.
To disable automatic authentication, remove the system file /etc/chatscripts/cpin.
Verifying the SIM Card Status
Use the sim_get_pin_status command to check the SIM card status.
There are four possible responses:
Ready: Your W315A/325A wireless module is ready to work.
No SIM card: You need to insert the SIM card into the W315A/325A, or your SIM card may not be inserted
correctly.
Need PIN code: You need to enter the correct PIN code. See Entering the PIN Code in this section for
details.
Need PUK code: You need to enter the PUK code: See Unlocking the SIM Card in this section for details.
Enabling or Disabling PIN Code Authentication
You can enable PIN code authentication to prompt for PIN code authentication whenever the W315A/325A
boots up.
Use the sim_enable_pin –e –p PIN code command to enable PIN code authentication. For example, enter
sim_enable_ping –e –p 0000 to activate PIN code authentication.
