Installing the TRC-190 Chassis

The TRC-190 series can be installed in a standard 19-inch rack.

NOTE

Rackmounted equipment must be reliably grounded. Power supply connections other than direct connections

to the branch circuit (e.g., use of power strips) should be employed.

The TRC-190 series chassis is designed so that the installation brackets can be installed to align the chassis

either flush against the front of the rack or recessed from the front of the rack.

ATTENTION

Select mounting bracket locations on the chassis that will keep the chassis balanced when mounted to the rack.

Failure to observe this warning could allow the chassis to fall, resulting in equipment damage and/or possible

injury to personnel.

To install the TRC-190 chassis into a standard 19-inch rack:

1. Determine the preferred alignment of the chassis in the rack.

NOTE

Installation bracket mou

nting screws are provided. Rackmount screws and clip nuts are NOT provided.

2. Locate four (4) installation bracket mounting screws (provided) for each chassis to be installed.

ATTENTION

Mount the chassis evenly and securely onto the rack. Failure to observe this warning could allow the chassis to

fall, resulting in

equipment damage and/or possible injury to personnel.

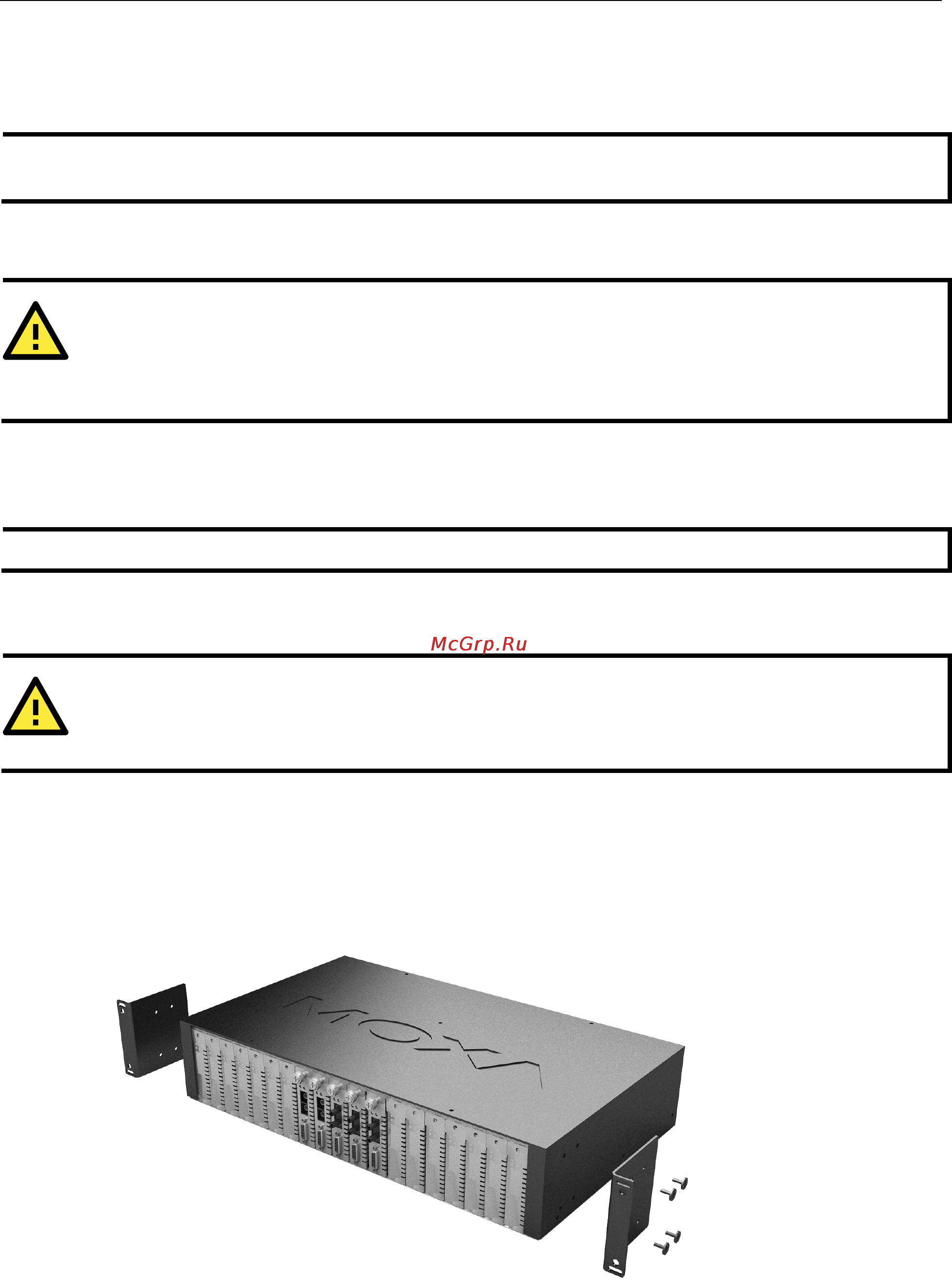

3. Align the mounting bracket in the selected position against the side of the chassis so that the chassis

installation holes are visible through the bracket installation holes.

4. Using a Phillips (crosshead) screwdriver, install the four (4) screws through the mounting bracket into the

installation holes on the side of the chassis.

5. Repeat step 3 and step 4 for the second mounting bracket.

6. Carefully align the chassis at a secure and level position between the 19-inch site rackmounting rails.

7. Install two (2) screws through the bracket at each side into the mounting rail, using the clip nuts to secure,

if necessary.
