Installing the Media Converter Slide-in Modules

ATTENTION

Wear a grounding device and observe electrostatic discharge precautions when installing or replacing the

media conve

rter slide-in modules into the chassis. Failure to observe this caution could result in damage to,

and subsequent failure of, the media converter slide

-in modules.

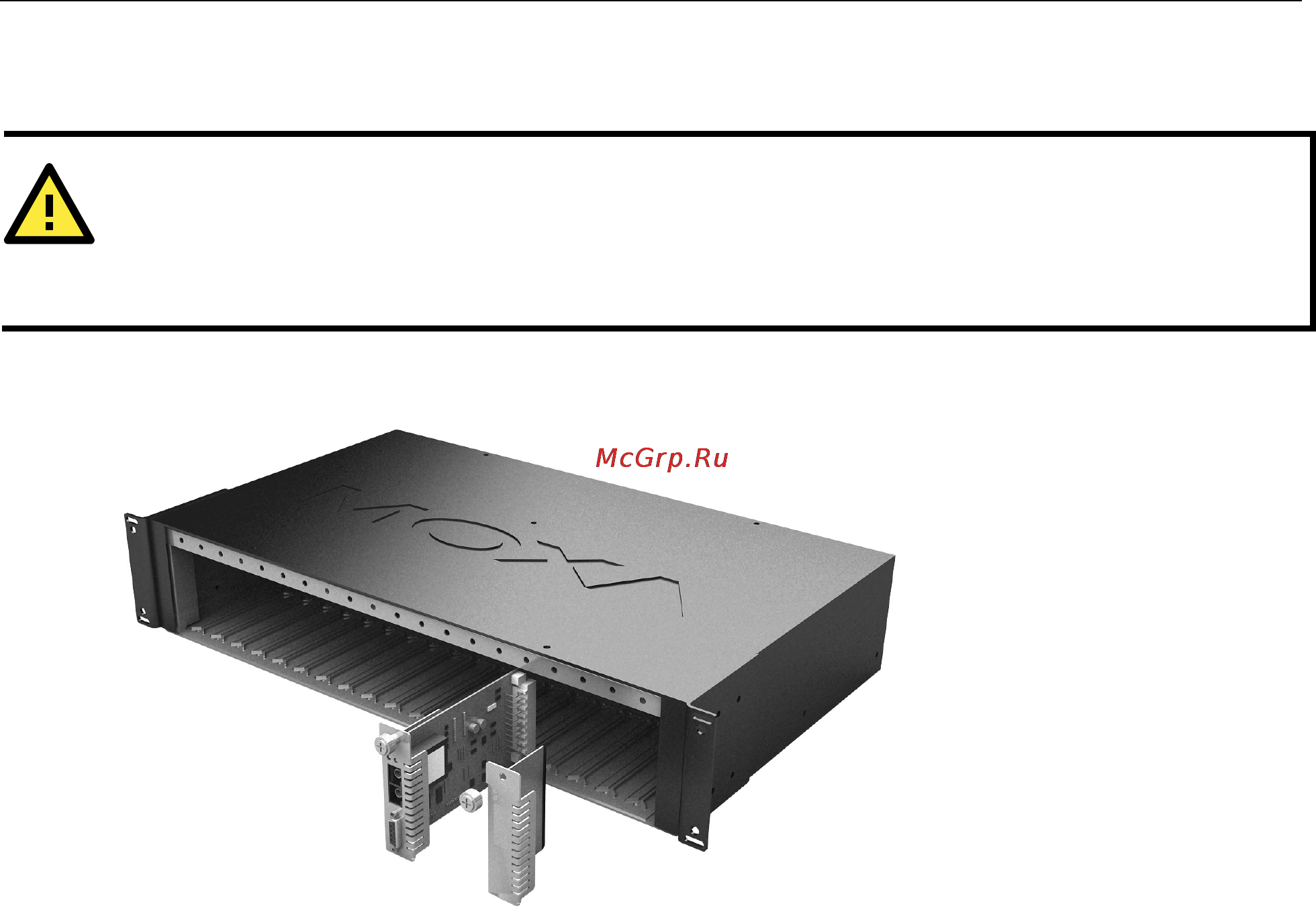

Instructions to install the media converter slide-in module into the TRC-190 chassis are as follows:

1. Slide-in modules can be installed in any empty slot of the chassis in any order.

2. The media converter slide-in module can be hot-swapped, which means the chassis doesn’t have to power

off during installation or when removing the module.

3. Before installing the slide-in module, make sure the front plate has been removed. Please refer to the

previous Installing or Removing Chassis Face Plate section.

4. Align the slide-in module with the chassis installation slot so that the panel fastener screw is at the top of

the module.

5. Carefully slide the slide-in module into the slot while aligning the module’s circuit board with the installation

guide.

6. Ensure the slide-in module is firmly seated inside the chassis.

7. Push in and rotate the attached panel fastener screw clockwise to secure the module to the chassis.

8. Repeat step 3 to 7 for any additional media converter slide-in module.
