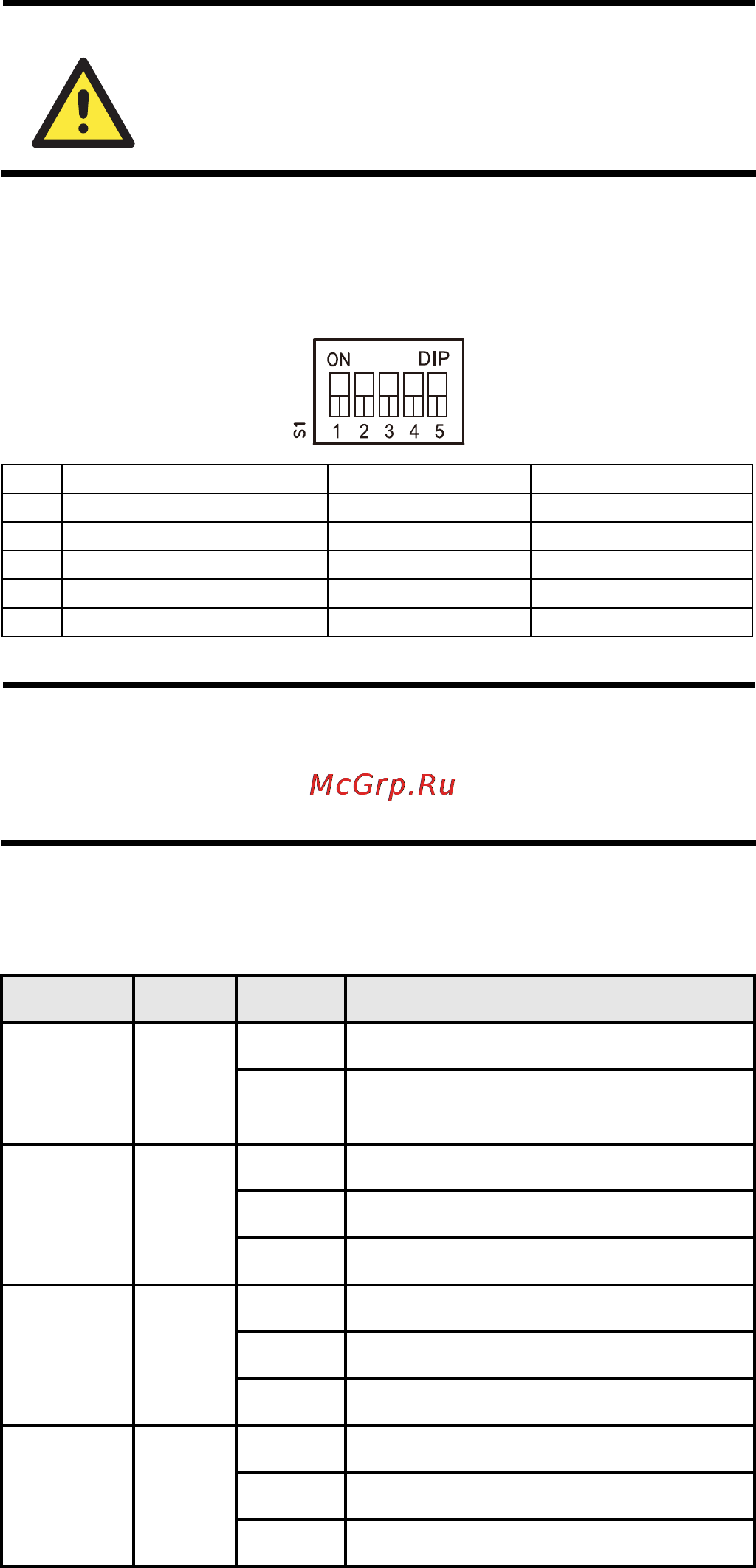

- 6 -
ATTENTION
This is a Class 1 Laser/LED product. Do not stare into the
Laser Beam.
Switch Settings
There is 1 set of DIP switches on the board. The following figure and table
give the settings for the 5-connector DIP switch.
DIP Function ON OFF
1 Auto Negotiation Enable Disable
2 Force TP Speed 100 M 10 M
3 Force TP Duplex Full Duplex Half Duplex
4 Link Fault Pass Through Enable Disable
5 Operating Mode Store-and-Forward Pass Through
NOTE
1. All the DIP settings default to “ON”.
2. When configured for Pass Through mode, the Ethernet port
and fiber port should transmit at 100 Mbps, which is
equivalent to full duplex mode.
LED Indicators
There are 2 LEDs on the front bracket of the CSM-200 slide-in modules.
LED Color State Function
On Power is being supplied to power input.
PWR Green
Off
Power is not being supplied to power
input.
On FX port’s 100 Mbps is active.
Blinking Data is being transmitted at 100 Mbps.
Fiber Link Green
Off 100BaseFX port is inactive.
On TP port’s 10 Mbps is active.
Blinking Data is being transmitted at 10 Mbps.
10M (TP) Yellow
Off TP port’s 10 Mbps link is inactive.
On TP port’s 100 Mbps is active.
Blinking Data is being transmitted at 100 Mbps.
100M (TP) Green
Off TP Port’s 100 Mbps is inactive.
