ioLogik E4200 Initial Setup

2-4

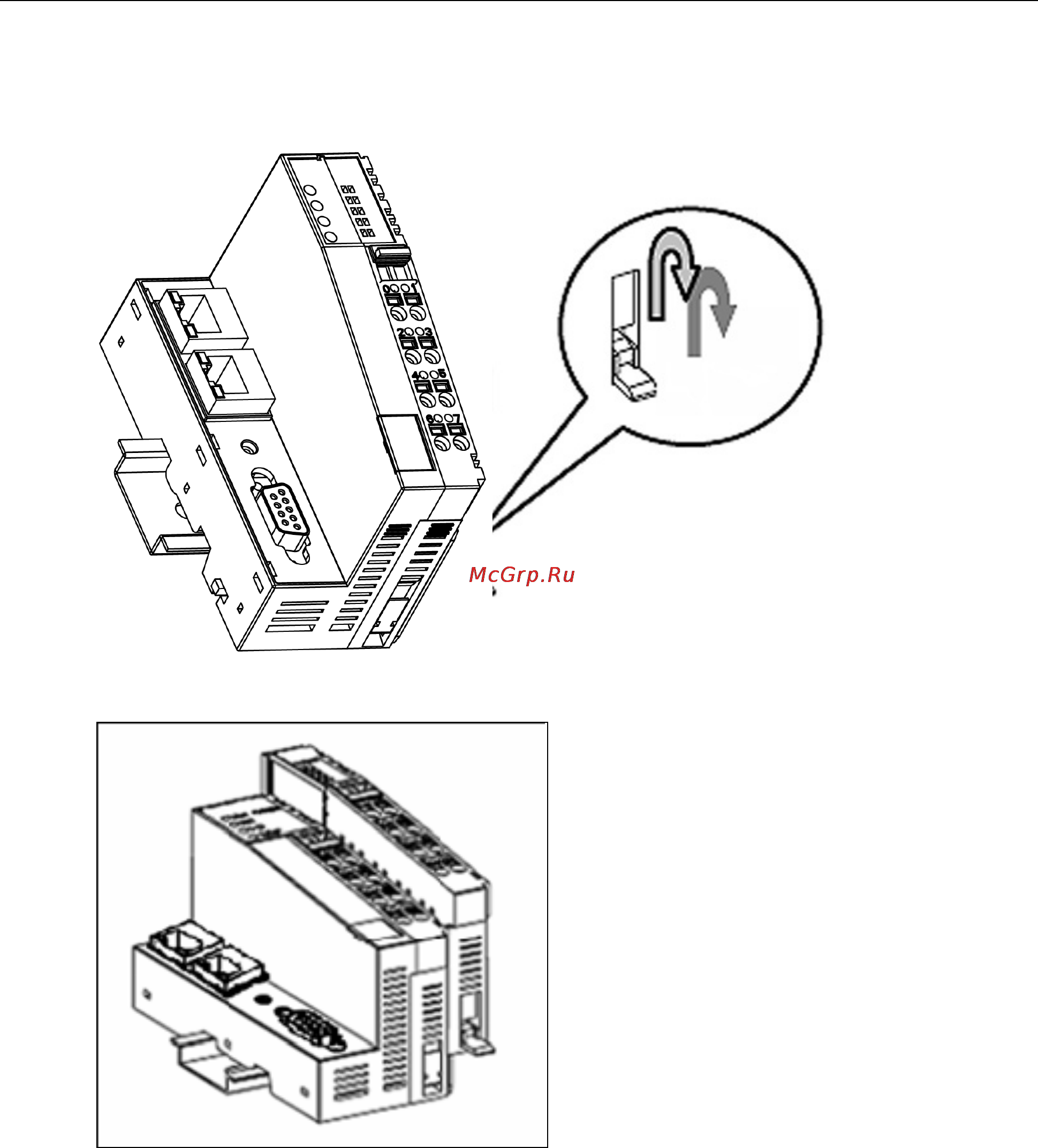

Removing the I/O Module from the DIN Rail

Step1: Use your finger or a screw driver to pull down the tab on the lower part of the module.

Step2: While still holding down the tab, pull out the module.
