ioPAC 8500 Hardware Installation
2-5

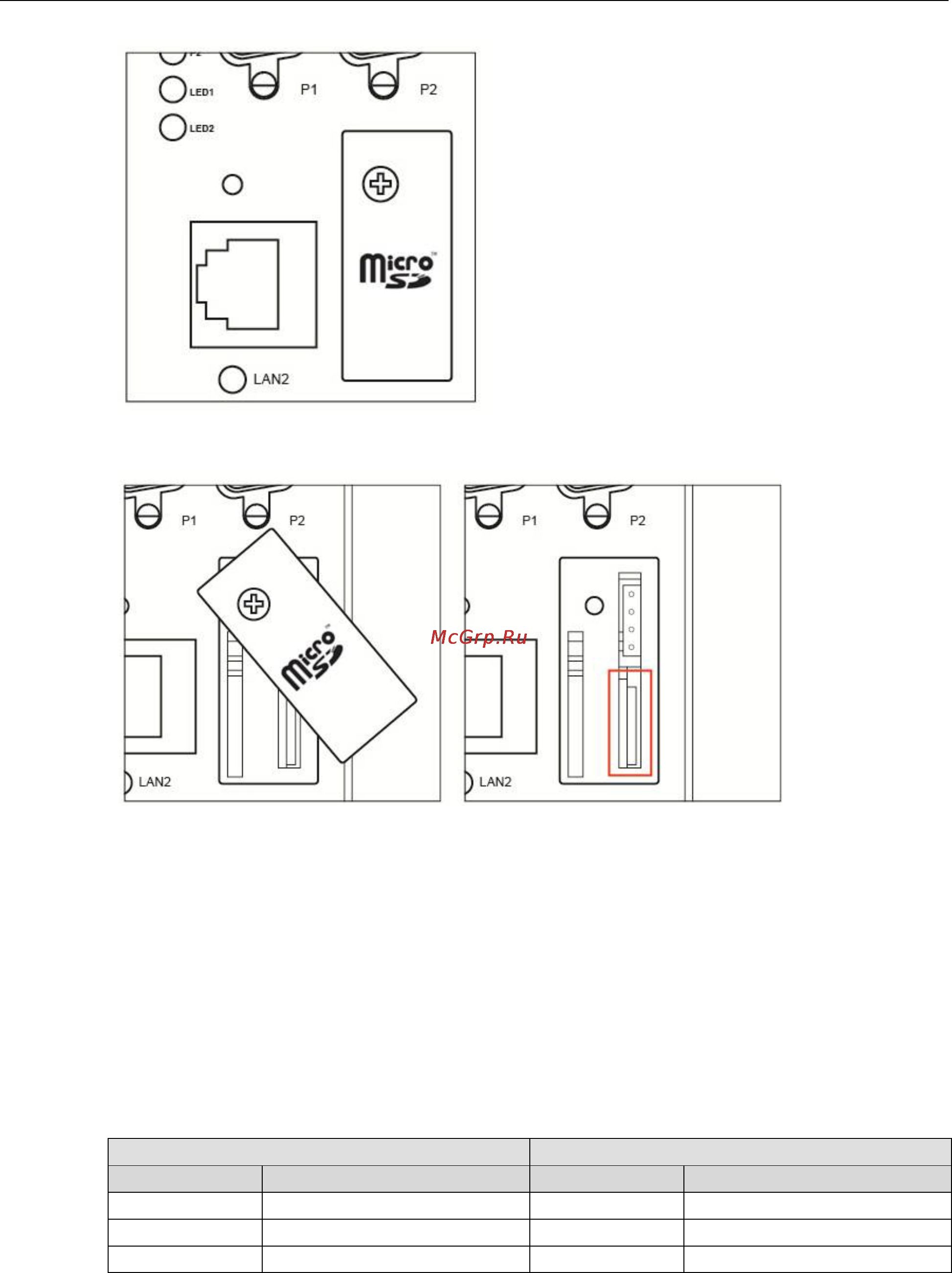

2. (a) Insert the microSD card into the microSD card slot, or
(b) Remove the microSD card from the microSD card slot.
3. Fasten back the screw holding the card cover in place.
Connecting to the Network
Ethernet Communication
Connections to the LAN port are made through an RJ45 or M12 connector on the module. The wiring and pin
connections for these connectors are described in separate sections below.
• TCP/IP Settings: Dual Speed Functionality: The ioPAC 8500’s Ethernet ports auto negotiate with the
connected devices and then use the fastest data transmission rate supported by both devices. The following
table shows the TCP/IP parameters supported by the LAN port. Default values are set when a Factory Reset
is performed on the controller.
Lan Port 1 Lan Port 2
Parameter Supported Values Parameter Supported Values
IP Address Default: 192.168.127.254 IP Address Default: 192.168.126.254
Subnet Mask Default: 255.255.255.0 Subnet Mask Default: 255.255.255.0
Gateway Default: 0.0.0.0 Gateway Default: 0.0.0.0
IP Address is the IP address of the controller.
Subnet Mask determines the subnet on which the controller is located.
Gateway determines how your controller communicates with devices outside its subnet. Enter the IP
address of the gateway.
The IP address, subnet mask, and gateway are static; contact your network administrator to obtain these
addresses for the controller.
