ioPAC 8500 Hardware ioPAC 8500 Hardware Introduction
3-4
Hardware Block Diagrams

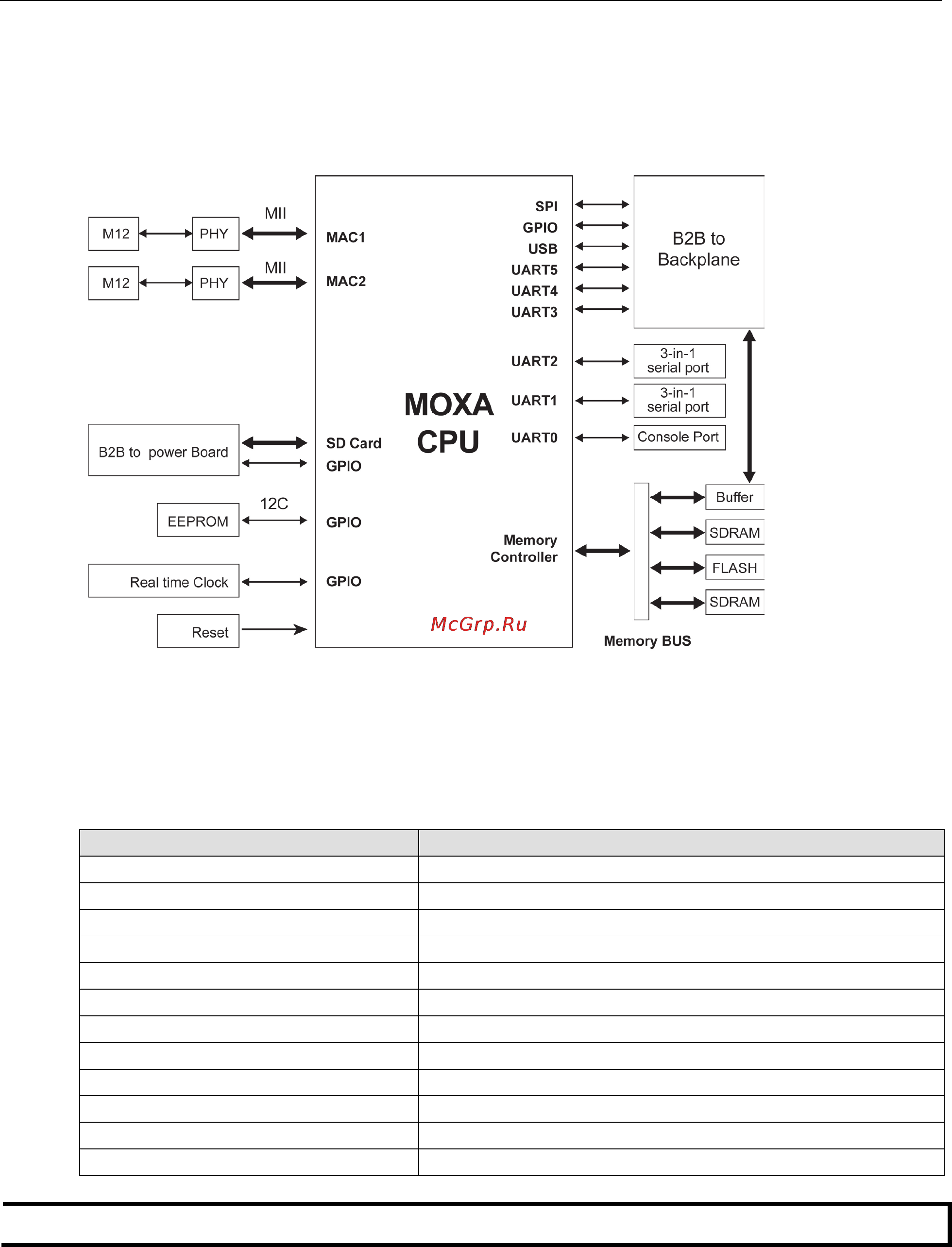

ioPAC 8500 CPU Board Block Diagram
Product Hardware Specifications
Product Selection Guide
Model Name Description
ioPAC 8500-2-RJ45-C-T 2 slots, RJ45, C/C++
ioPAC 8500-5-RJ45-C-T 5 slots, RJ45, C/C++
ioPAC 8500-9-RJ45-C-T
9 slots, RJ45, C/C++
ioPAC 8500-2-M12-C-T 2 slots, M12, C/C++
ioPAC 8500-5-M12-C-T 5 slots, M12, C/C++
ioPAC 8500-9-M12-C-T 9 slots, M12, C/C++
ioPAC 8500-2-RJ45-IEC-T 2 slots, RJ45, IEC
ioPAC 8500-5-RJ45-IEC-T 5 slots, RJ45, IEC
ioPAC 8500-9-RJ45-IEC-T 9 slots, RJ45, IEC
ioPAC 8500-2-M12-IEC-T 2 slots, M12, IEC
ioPAC 8500-5-M12-IEC-T 5 slots, M12, IEC
ioPAC 8500-9-M12-IEC-T 9 slots, M12, IEC
NOTE
Conformal coating availabl
e on request.
