ioPAC 8500 Hardware 85M Module Hardware Introduction
4-19
Pin Assignment and Wiring Guide
The 85M
-5401-T module’s pin assignment and wiring guide
follows
. The DB44 to 4-port DB9 cable should be
included in the
package
.

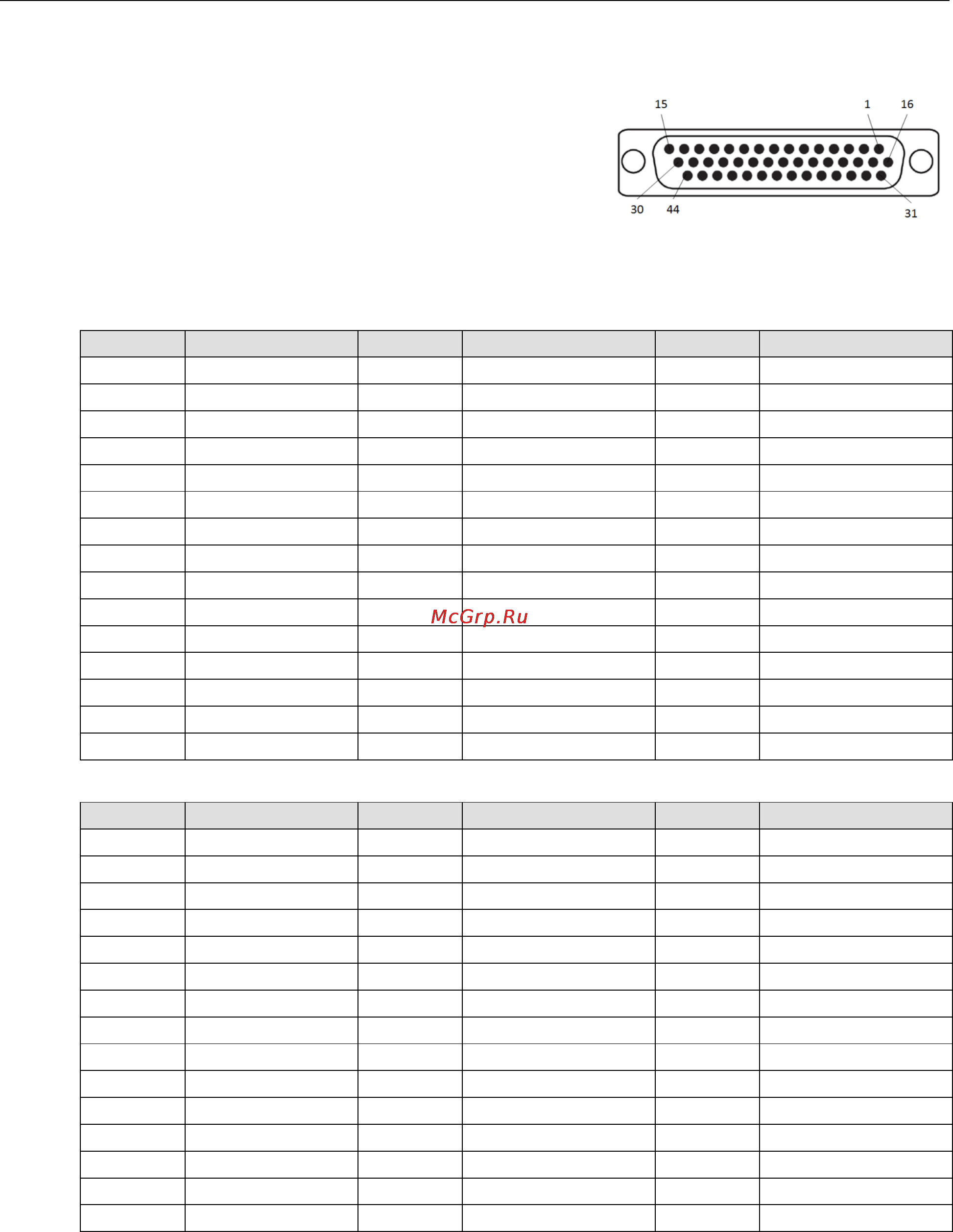

DB44 Pin Assignments
DB44 (Female): RS-232
Pin Signal Pin Signal Pin Signal
1 TxD3 16 CTS3 31 DCD3
2 RxD3 17 DTR3 32 –
3 RTS3 18 DSR3 33 GND
4 – 19 – 34 –
5
TxD2
20
CTS2
35
DCD2
6 RxD2 21 DTR2 36 –
7 RTS2 22 DSR2 37 GND
8 – 23 – 38 –
9 TxD1 24 CTS1 39 DCD1
10 RxD1 25 DTR1 40 –
11 RTS1 26 DSR1 41 GND
12 – 27 – 42 DCD0
13 TxD0 28 CTS0 43 –
14 RxD0 29 DTR0 44 GND
15
RTS0
30
DSR0
DB44 (Female): RS-422/RS-485 (4-wire)
Pin Signal Pin Signal Pin Signal
1 RxD3+(B) 16 – 31 TxD3-(A)
2 TxD3+(B) 17 RxD3-(A) 32 –
3 – 18 – 33 GND
4 – 19 – 34 –
5 RxD2+(B) 20 – 35 TxD2-(A)
6 TxD2+(B) 21 RxD2-(A) 36 –
7 – 22 – 37 GND
8
–
23
–
38
–
9 RxD1+(B) 24 – 39 TxD1-(A)
10 TxD1+(B) 25 RxD1-(A) 40 –
11 – 26 – 41 GND
12 – 27 – 42 TxD0-(A)
13 RxD0+(B) 28 – 43 –
14 TxD0+(B) 29 RxD0-(A) 44 GND
15 – 30 –
