- 7 -

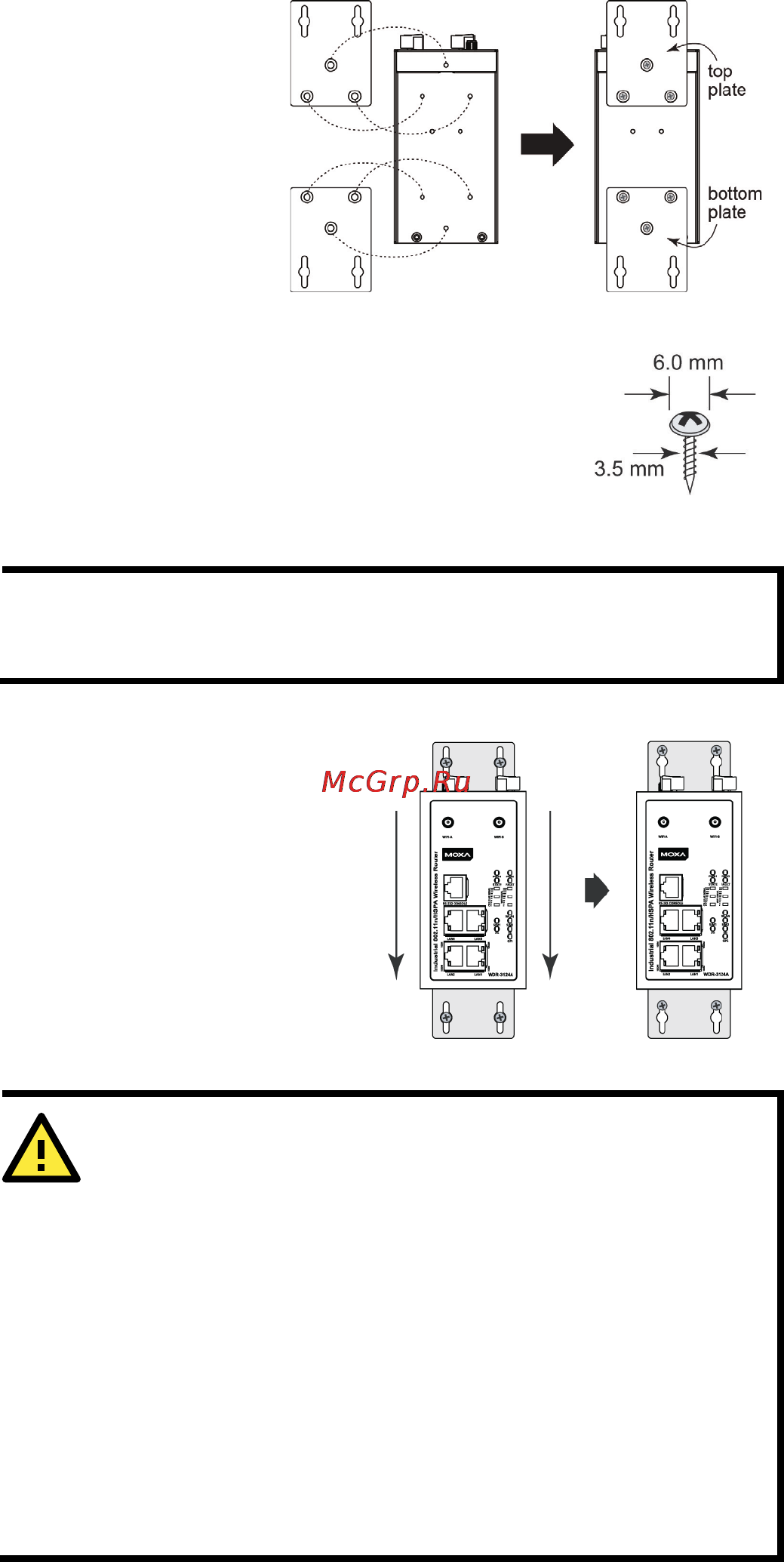

STEP 1:
Remove the aluminum
DIN
-r
ail attachment plate
from the
WDR-3124A
, and
then attach the wall
mount plates with M3
screws, as shown in the
adjacent diagram.
STEP 2:
Mounting the
WDR-3124A
to a wall requires 4 screws.
Use the
WDR-3124A device, with wall mount plates
attached as a guide
, to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the
shafts should b
e less
than 3.5 mm in diameter, as shown in the figure at the
right.
NOTE
Test the screw head and shank size by inserting the screw into
one of the keyhole shaped apertures of the Wall Mounting Plates
before it is screwed into the wall.
STEP 3:
Once the screws are fixed into the
wall, insert the four screw heads
through the large opening of the
keyhole
-shaped apertures, and
then slide the
WDR-3124A
downwards, as indicated
in the
accompanying diagram.
Tighten
the four screws for added stability.
WARNING
This equipment is intended to be used in a Restricted Access
Location, such as a dedicated computer room. Access can
only be gained by SERVICE PERSONS or by USERS who have
been instructed about the fact that the
metal chassis of the
equipment is extremely hot and may cause burns.
Service persons or users should pay special attention and
take special precautions before handling the equipment.
Access should be controlled with lock and key, or a security
identity system controlled by the authority responsible for
the location. Only authorized, well-trained professionals
should be allowed to access the restricted access location.
External metal parts are hot!! Pay special attention or use
special protection before handling.
