www.moxa.com/support
The Americas:
+1-714-528-6777 (toll-free: 1-888-669-2872)
Europe:
+49-89-3 70 03 99-0
Asia-Pacific:
+886-2-8919-1230
China:
+86-21-5258-9955 (toll-free: 800-820-5036)
2014 Moxa Inc. All rights reserved.

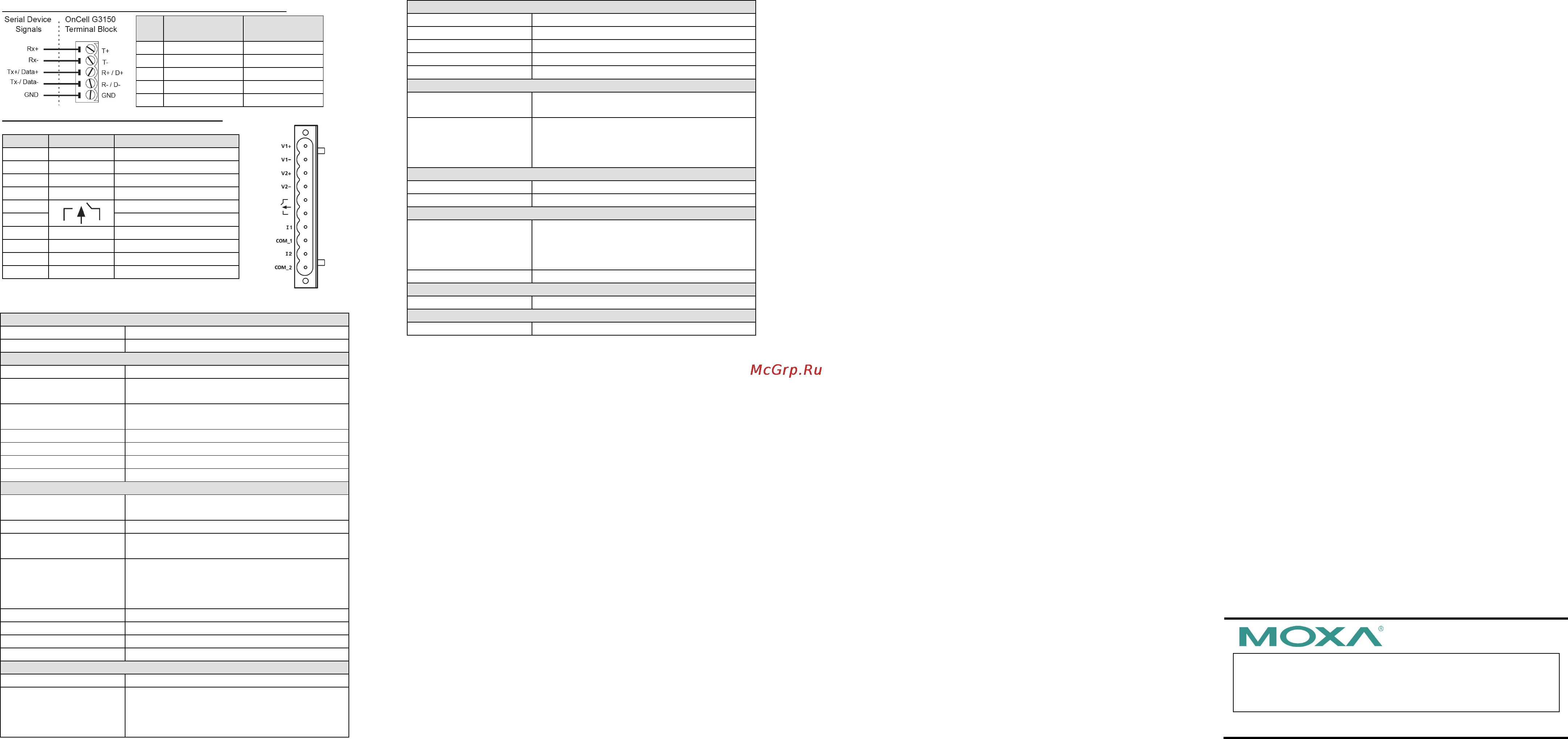

4W/2W RS-485/RS-422 (Terminal Block) Pinouts
Pin
RS-422/485
4-wire
RS-485
2-wire
1
TxD+(B)
---
2
TxD-(A)
---
3
RxD+(B)
Data+(B)
4
RxD-(A)
Data-(A)
5
GND
GND
Power Input and Relay Output Pinouts
Name
Function
V1+
DC Power input 1
V1-
DC Power input 1
V2+
DC Power input 2
V2-
DC Power input 2
Relay Output
Relay Output
I1
Digital Input
COM_1
Digital Input GND
I2
Digital Input
COM_2
Digital Input GND
Specifications
LAN Interface
Ethernet
10/100 Mbps, RJ45 connector
Protection
Built-in 1.5 KV magnetic isolation
Cellular Interface (for OnCell G3110 & G3150)
Standard Compliance
GSM/GPRS/EDGE
Band Selection
Quad-band 850/900 MHz, and 1800/1900
MHz
Tx Power
1 watt GSM 1800/1900, 2 watt EGSM
850/900
GPRS Multi-slot class
Class 12
GPRS Terminal Device
Class B
GPRS Coding Schemes
CS1 to CS4
SIM Control
3V
Cellular Interface (for OnCell G3110-HSPA & G3150-HSPA)
Data Rate
UMTS (DL: 384 Kbps, UL: 384 Kbps)
HSPA (DL: 14.4 Mbps, UL: 5.67 Mbps)
Standard Compliance
GSM/GPRS/EDGE/UMTS/HSPA
Band Selection
Five band 800/850/AWS/1900/2100 MHz
Quad-band 850/900/1800/1900 MHz
Tx Power
1 watt GSM1800,
2 watt GSM900,
0.25 watt UMTS/HSPA
0.5 watt EDGE900, 0.4 watt EDGE1800
GPRS Multi-slot class
Class 12
GPRS Terminal Device
Class B
GPRS Coding Schemes
CS1 to CS4
SIM Control
3V
Serial Interface
No. of Ports
1
Serial Standards
G3100: RS-232 (DB9 male connector)
G3150: RS-232 (DB9 male connector),
RS-422/485 (5-pin terminal block
connector)
Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data Bits
5, 6, 7, 8
Stop Bit(s)
1, 1.5, 2 (when parity = None)
Flow Control
RTS/CTS, XON/XOFF
Speed
50 bps to 921.6 Kbps
I/O Interface
Alarm Contact
1 relay output with current carrying
capacity of 1A@24 VDC
Digital Input
2 inputs electrically isolated from the
electronics
+13 to +30 V for state "1" (On)
+3 to -30V for state "0" (Off)
Power Requirements
Input Voltage
12 to 48 VDC
Data Link
400 mA (idle) to 900 mA (peak) @ 12 V
Environmental Limits
Operating temperature
Standard: -30 to 55°C (-22 to 131°F), 5 to
95% RH
Wide Temperature: -30 to 70°C (-22 to
158°F), 5 to 95% RH
Storage temperature
-40 to 75°C (-40 to 167°F)
Regulatory Approvals
EMC
CE Class A , FCC Class A, UL
Warranty
Warranty Period
5 years
