Moxa VPort 26A-1MP [17/82] Step 3 connect the cables
![Moxa VPort P26A-1MP [17/82] Step 3 connect the cables](/views2/1201823/page17/bg11.png)
Moxa VPort 26A-1MP Getting Started
2-3

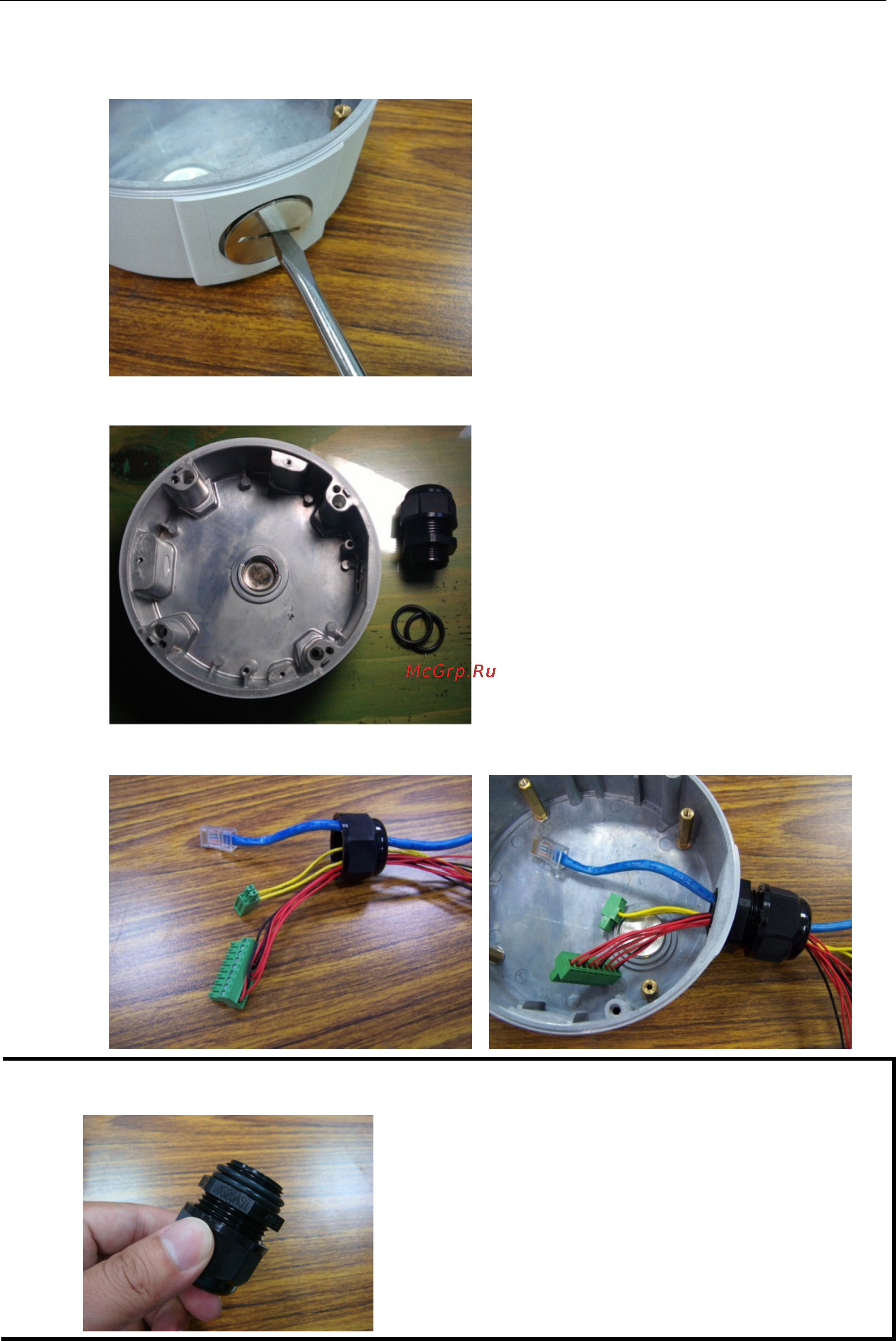

Step 3: Connect the cables.
a) Open the conduit hole. (use the side conduit hole as example)
b) Prepare the cable gland (if required).
c) Use the cable gland to assemble the cables.
NOTE
When
installing the cable gland, make sure the 2 rubber rings are assembled properly for IP66 protection. If
necessary, use silicon sealant.
