Moxa VPort 26A-1MP System Configuration
4-13

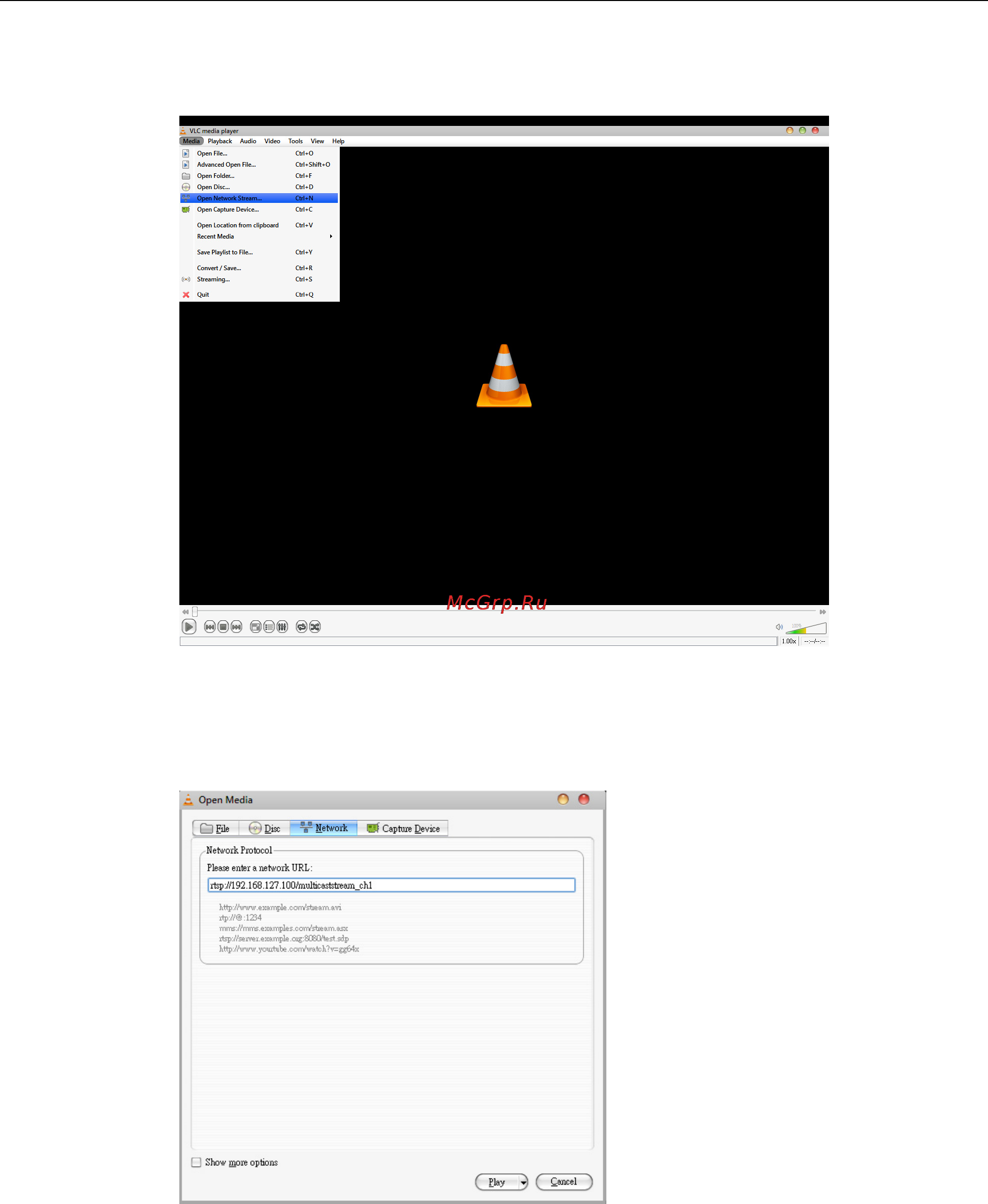

The VLC media player is used here as an example of a RTSP streaming application:
Step 1:
Open
VLC Player and select Media - Open network streaming
Step 2:
When the following pop
-up window appears, type the URL in the input box. E.g., type
rtsp://<VPort’s IP address>[:<RTSP Port]/udpstream_ch1_stream< 1 or 2>
rtsp://<VPort’s IP address>[:<RTSP Port]/multicaststream_ ch1_stream<1 or
2>
RTSP Port:
554 Is default, and then click on OK to connect to the VPort P06-1MP-M12.
