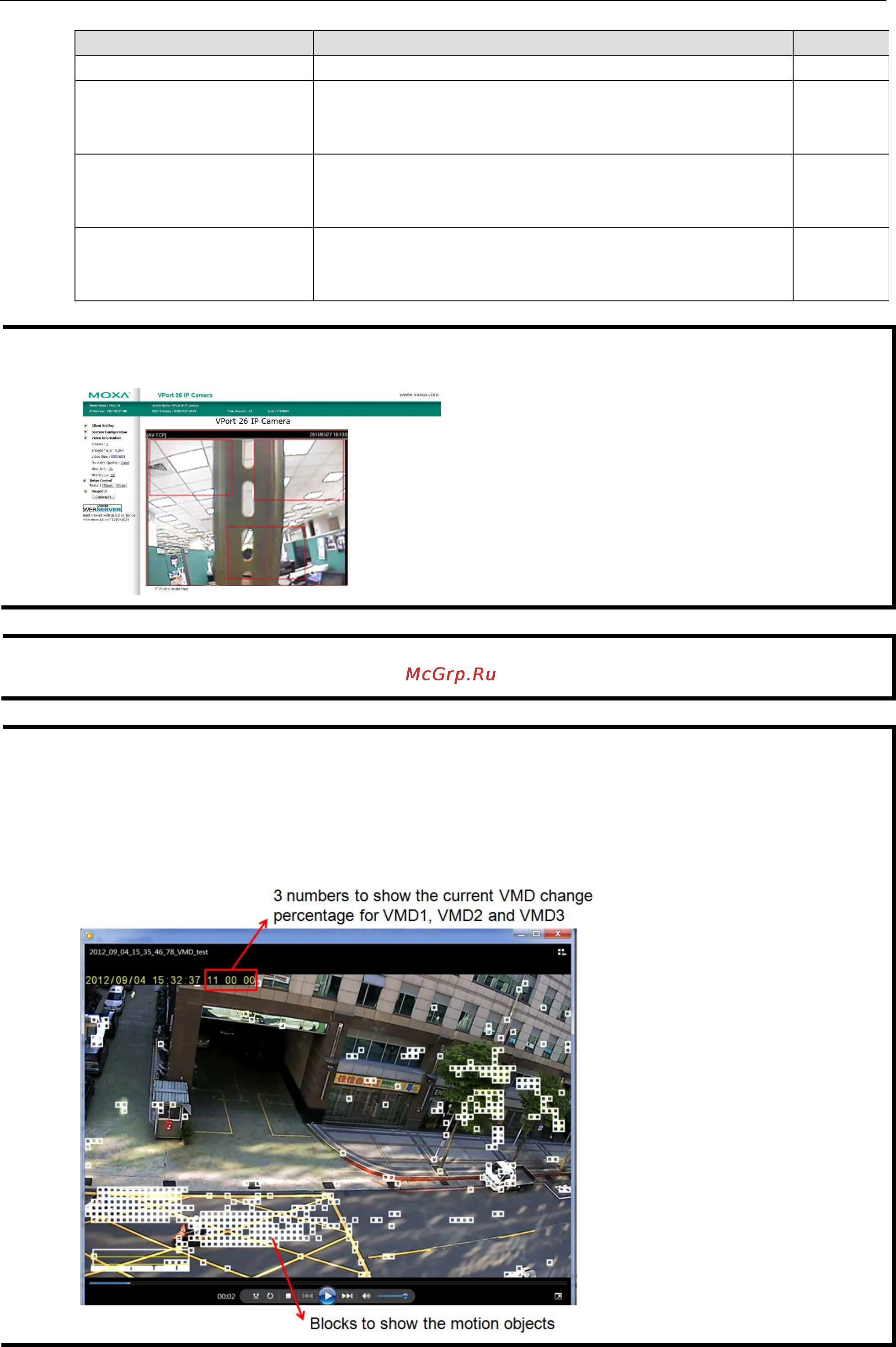

Moxa VPort 26A-1MP System Configuration
4-41
Setting Description Default
Enable VMD alarm Enable or disable the Video Motion Detection alarm Disabled
Show alert on the image when
VMD is triggered
Enable or disable the “show the alert,” which when enabled
displays a red square frame on the video image of
the VMD alarm
notification
Disabled
Show motion block on the image
(Assistance function, disable it
when setting is done)
Enable this item for real-time motion detection, which is related
to VMD sensitivity configuration.
Disabled
Show motion percent info on
the image (Assistance function,
disable it when setting is done)
Enable this item to show the change in percentage of motion
detection, which is related to the VMD’s percentage
configuration.
Disabled
NOTE
Once the
Show alert on the image when VMD is triggered is enabled, the red frames that appear on the
homepage image indicate the size of the VMD window
set up by the administrator.
NOTE
To enable
Show motion block on the image and Show motion percent info on the image, the image
appearance
in the video configuration must be configured to show on the image.
Note
Show motion block on the image
and Show motion percent info on the image are to help the
administrator configure the VMD (
video motion detection) function. Once both items are enabled, the
administrator can see the motion detection real
-time status and the change in percentage of the VMD ar
ea on
the video
image. If the motion status and change of
percentage are just what the administrator expects, then
the
configurations of sensitivity and percentage of VMD are confirmed. Before clicking on Save,
disable both
items after the configurations a
re confirmed.
