VPort 36-1MP Getting Started

2-3

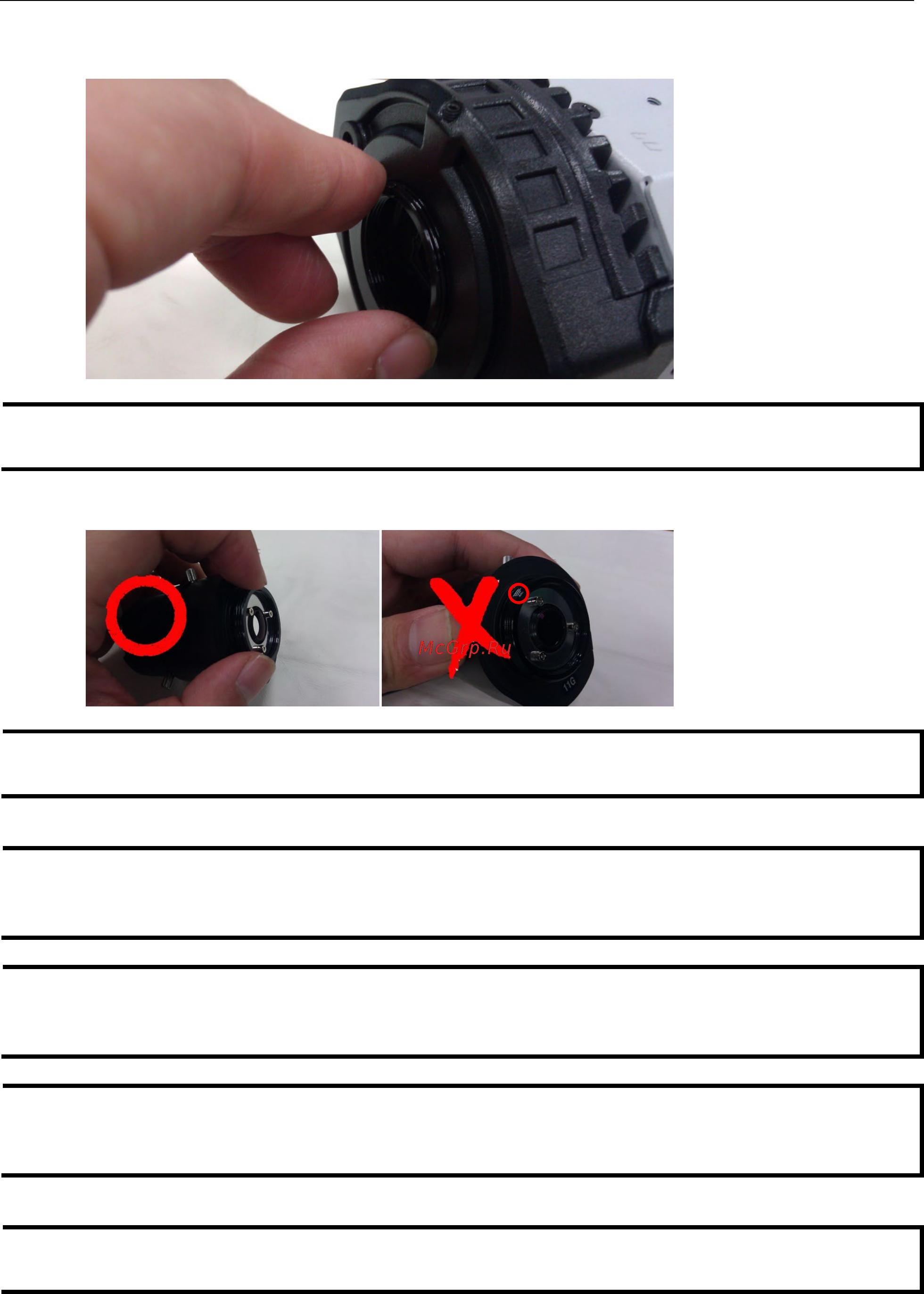

Step 3: Remove the lens holder.

NOTE

Be sure to loosen the screw affixing the lens holder in step 2 before trying to remove the lens holder. The lens

holder may be too tight to loosen if the screw is not loosened first.

Step 4: Screw the lens holder to the lens you are going to use.

NOTE

Be sure to screw the lens

holder to the lens on the right side. The side of the lens holder with the groove should

be facing the lens; the side without the groove should be facing outwards.

Step 5: Screw lens and lens holder to the VPort 36-1MP.

NOTE

We strongly suggest that you

perform this step while viewing live video from the camera via a web browser for

instant feedback on when to stop. Be sure not to tighten the screw all the way, or the lens holder may remain

fixed to the camera when you remove the lens.

NOTE

You can

use the lens holder pressing screw in step 2 to fix the position of lens holder and lens.

However,

make sure you do not screw the lens all the way down

, since doing so could obstruct the ICR

filter when switching between day and night modes.

NOTE

You do

not need to use the C/CS mount adaptor ring if you are using the VPort 36-

1MP series with an optional

lens purchased from Moxa. It is only required to mount the lens with the adaptor ring if you are using a C mount

type lens.

Step 6: Power on your VPort 36-1MP.

NOTE

The VPort 36

-1MP can be powered by a 12-32 VDC or 18-

30 VAC power input, or Power over Ethernet (PoE,

802.3af). For power redundancy, use DC or AC power together with PoE.

Groove
