6. Headphone Output – Standard 1/8” stereo headphone output.

7. Output Level – Adjusts overall output volume level. This control affects both the rear panel RCA outputs (11) and the headphone

output (6).

8. Power LED – Lights when the unit is powered on.

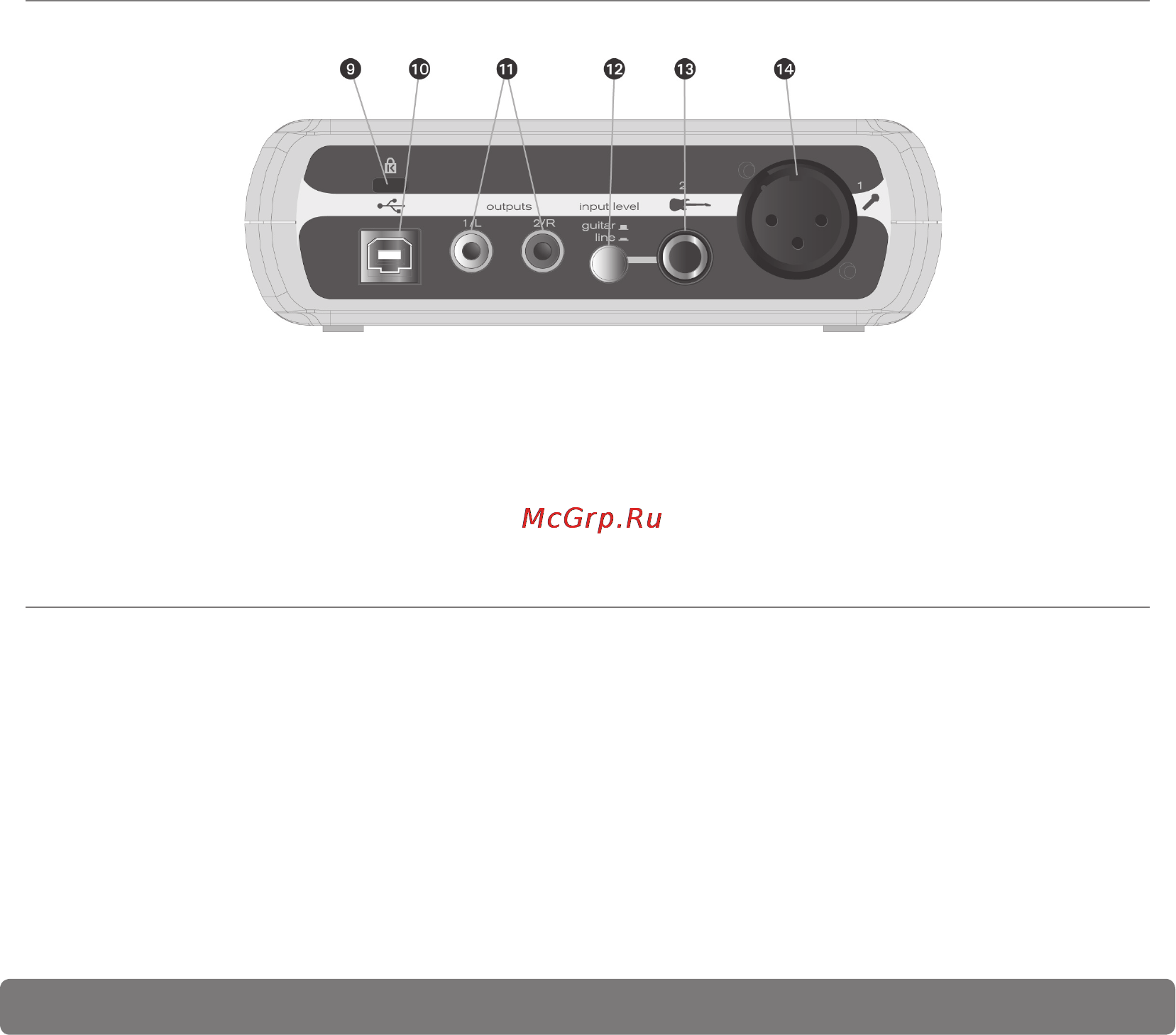

Rear Panel Controls

9. Kensington Lock Connector – Connect a standard laptop-style cable locking device here to protect your Fast Track USB from

theft or accidental breakage.

10. USB Connector – Connect the included USB cable here, and connect the other end to your computer’s USB port.

11. Line Outputs – Left and Right stereo outputs. Connect these outputs to powered monitors such as the M-Audio DX4s, or to

the inputs of your stereo ampliﬁer or receiver.

12. Input Level Switch – Input level selector for the 1/4” TRS input (13). When connecting a balanced line level input here, the

switch should be set to LINE position. When connecting an instrument, the switch should be set to the GUITAR position.

13. Guitar Input – TRS 1/4” input for line/instrument level input. The input level is determined by the Line/Instrument Switch (12).

14.

Mic Input – Balanced XLR input for connecting a dynamic microphone.

Software Installation

Your Fast Track USB is class compliant in Mac OS X (10.3.4 or later), offering true plug-and-play operation. Just plug it in, and you’re ready

to start recording.

Your Fast Track USB also comes with M-Audio’s exclusive low-latency driver software for Windows XP that allows for faster communication

with your computer operating system.

Your Fast Track USB comes with a standard USB cable. The squared end of the cable connects to the Fast Track USB; the ﬂat end connects

to your computer’s USB port.
