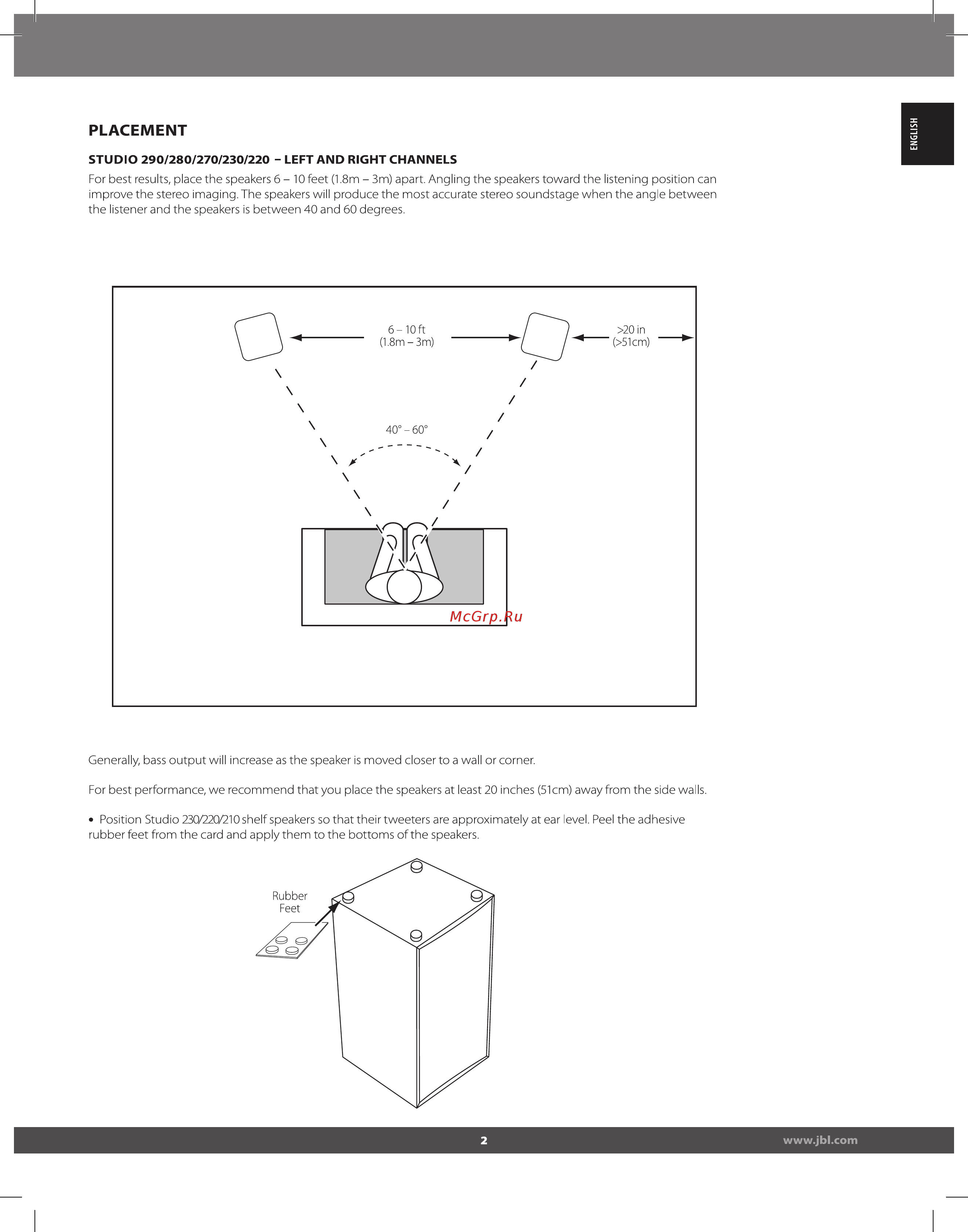

PLACEMENT STUDIO 290 280 270 230 220 LEFT AND RIGHT CHANNELS For best results place the speakers 6 10 feet 1 8m 3m apart Angling the speakers toward the listening position can improve the stereo imaging The speakers will produce the most accurate stereo soundstage when the angle between the listener and the speakers is between 40 and 60 degrees Generally bass output will increase as the speaker is moved closer to a wall or corner For best performance we recommend that you place the speakers at least 20 inches 51cm away from the side walls Position Studio 23OZ22O 21O shelf speakers so that their tweeters are approximately at ear level Peel the adhesive rubber feet from the card and apply them to the bottoms of the speakers 2 www jbl com
