JBL Studio 280 Brown [4/8] Studio 235c studio 225c

Содержание

• Included items 2
• Studio 210 2
• Studio 225c 2
• Studio 235c 2
• Studio 290 2
• Thank you for choosing this jbl product 2
• Www jbl com 2
• Placement 3
• Studio 290 280 270 230 220 left and right channels 3
• Www jbl com 3
• Studio 235c studio 225c 4
• Www jbl com 3 4
• Studio 230 220 210 surround channels 5 channel system 5
• Studio 230 220 210 surround channels 7 channel system 5
• When you use these speakers as surround channel speakers in a 5 channel system place them slightly behind the listening position facing each other ideally they should be 5 6 feet 1 5m 1 8m above the floor an alternate location would be on a wall behind the listening position facing forward the surround speakers should not call attention to themselves while they re playing experiment with their placement until you hear a diffuse ambient sound accompanying the sounds that you hear from the front left front right and center speakers 5
• When you use these speakers as surround channel speakers in a 7 channel system place the surround side speakers directly to the sides of the listening position at least 5 6 feet 1 m 1 m above the floor place the surround back speakers on the wall behind the listening position also at least 5 6 feet 1 m 1 m above the floor and 3 6 feet 0 m 1 m apart 5
• Www jbl com 4 5
• Basic single wire connection 6
• Bi wire connection 6
• Caution make sure that all of the system s electrical components are turned off and preferably unplugged from their ac outlets before making any connections 6
• Connections 6
• Important do not remove the metal jumpers from between the two sets of terminals when connecting the speaker wires 6
• Important make sure the and wires or connectors do not touch each other or the other terminal touching wires can cause a short circuit that can damage your receiver or amplifier 6
• Studio 230 220 210 235c 225c 6
• Studio 290 280 270 6
• Www jbl com 5 6
• Bi wire connection studio 290 280 270 7
• Dual amplifier bi wiring 7
• Single amplifier bi wiring 7
• Www jbl com 7
• 2013 harman international industries incorporated all rights reserved 8
• Caring for your speakers 8
• Features specifications and appearance are subject to change without notice 8
• Harman 8
• Harman international inc 8500 balboa boulevard northridge ca 91329 usa 8
• Part no 950 0504 001 8
• Www jbl com 8
• Www jbl com 7 8

Похожие устройства

• JBL Spark Red Инструкция по эксплуатации
• JBL GTO-8629 Инструкция по эксплуатации
• JBL SoundFly Air White Инструкция по эксплуатации
• JBL GTO 6429 Инструкция по эксплуатации
• JBL Creature III Black Инструкция по эксплуатации
• JBL GTO 529 Инструкция по эксплуатации
• Jawbone UP M Red Инструкция по эксплуатации
• JVC NX-SA1RE Black Инструкция по эксплуатации
• JVC CS-ZX530 Инструкция по эксплуатации
• JVC KW-V11 Инструкция по эксплуатации
• JVC LT-32M345 Инструкция по эксплуатации
• JVC LT-22M445 White Инструкция по эксплуатации
• Jetair TINA AN/A/60/PB Инструкция по эксплуатации
• Jetair FS 301 2M (60) WH Инструкция по эксплуатации
• Keneksi Fire 2 Black Инструкция по эксплуатации
• Kambrook ACH400 Инструкция по эксплуатации
• JVC KW-V21BT Инструкция по эксплуатации
• John Frieda 5125JFE Инструкция по эксплуатации
• John Frieda 2778JFE Инструкция по эксплуатации
• Keneksi Libra 2 Black Инструкция по эксплуатации

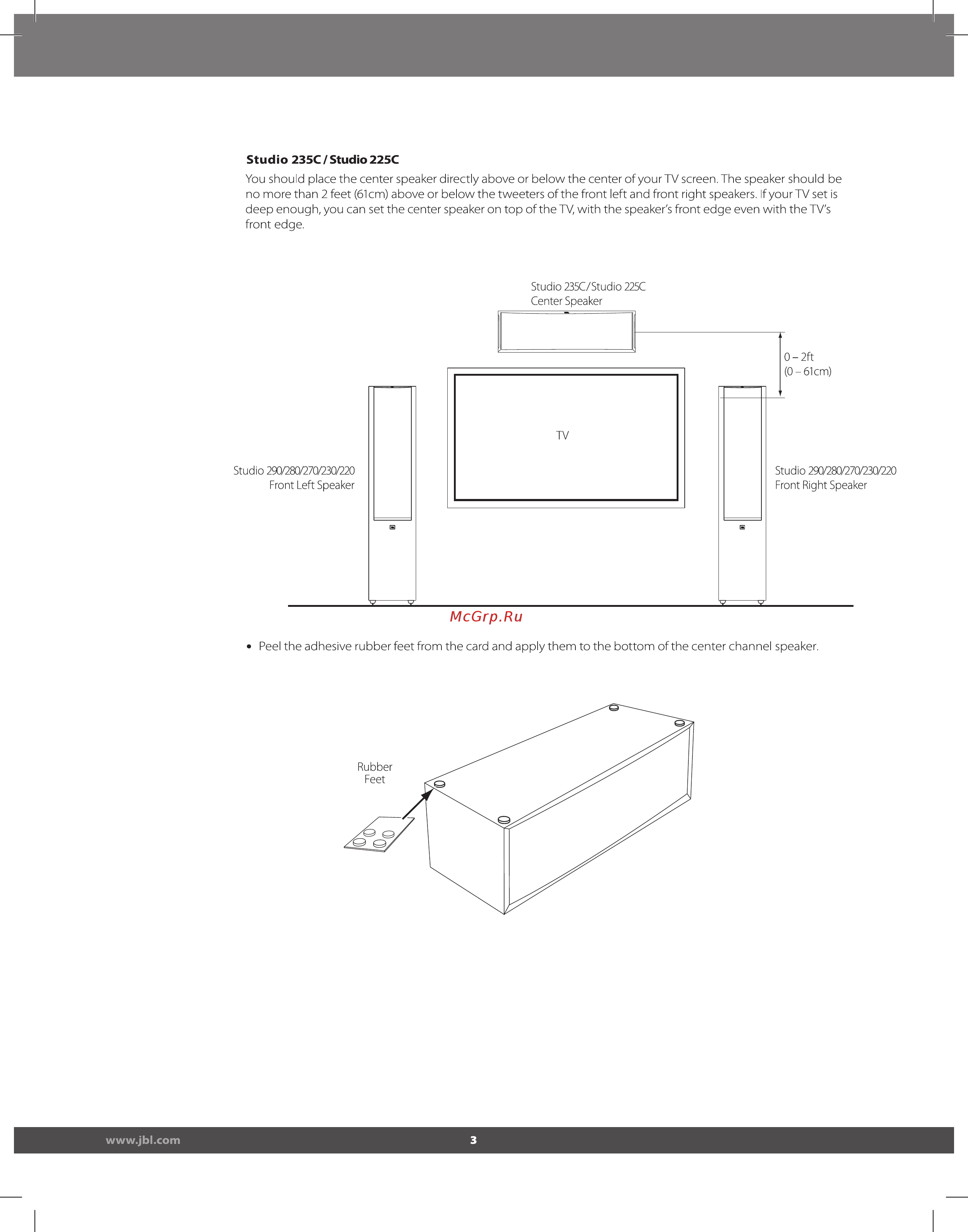

Studio 235C Studio 225C You should place the center speaker directly above or below the center of your TV screen The speaker should be no more than 2 feet 61cm above or below the tweeters of the front left and front right speakers IfyourTV set is deep enough you can set the center speaker on top of the TV with the speaker s front edge even with the TV s front edge Studio 235C Studio 225C Center Speaker 0 2ft 0 61cm Studio 290 2æ 270 230 220 Front Left Speaker Studio 290 280 270 230 220 Front Right Speaker Peel the adhesive rubber feet from the card and apply them to the bottom of the center channel speaker www jbl com 3
