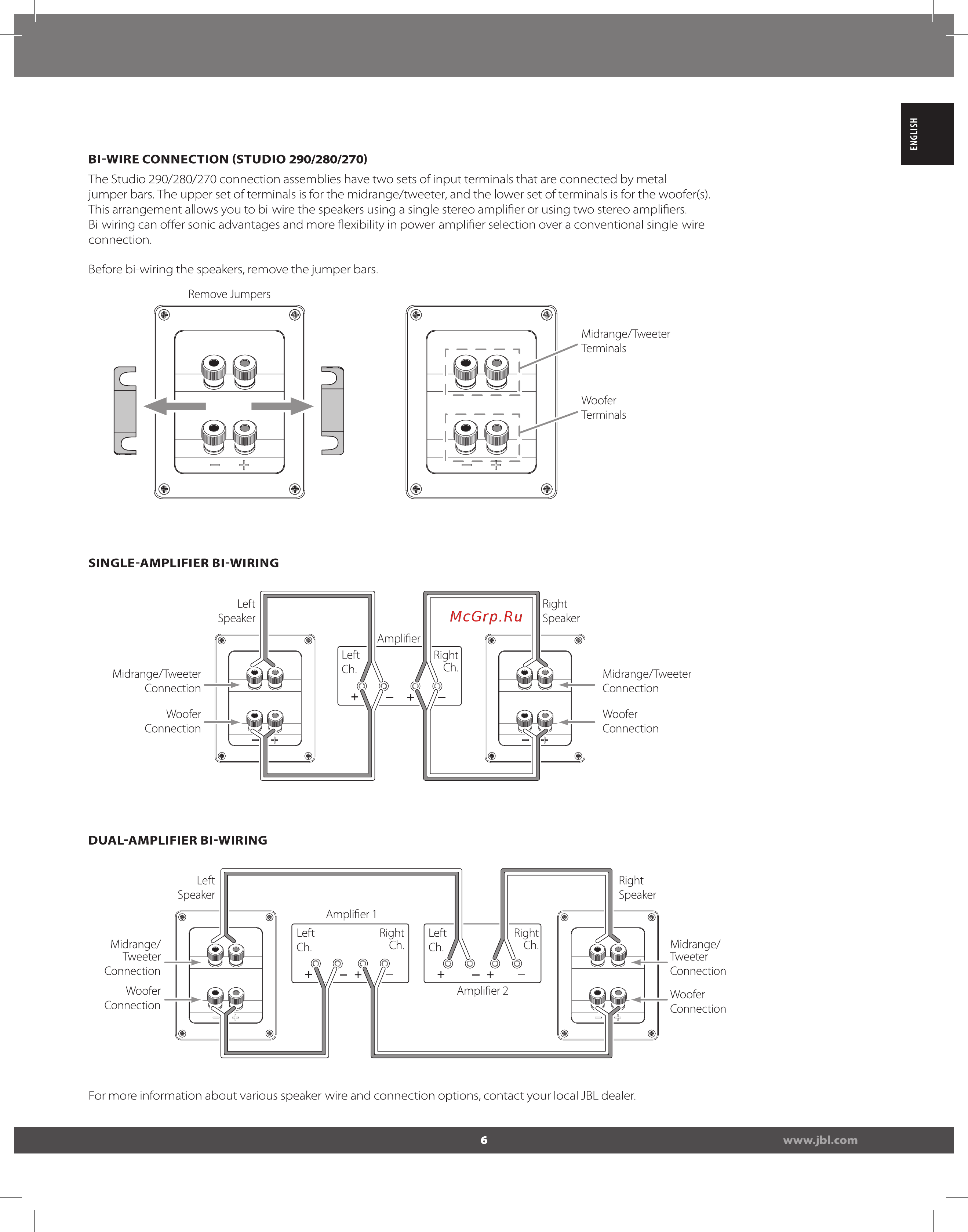

BI WIRE CONNECTION STUDIO 290 280 270 The Studio 290 280 270 connection assemblies have two sets of input terminals that are connected by metal jumper bars The upper set of terminals is for the midrange tweeter and the lower set of terminals is for the woofer s This arrangement allows you to bi wire the speakers using a single stereo amplifier or using two stereo amplifiers Bi wiring can offer sonic advantages and more flexibility in power amplifier selection over a conventional single wire connection Before bi wiring the speakers remove the jumper bars SINGLE AMPLIFIER BI WIRING Midrange Tweeter Connection Woofer Connection DUAL AMPLIFIER BI WIRING Midrange Tweeter Connection Woofer Connection For more information about various speaker wire and connection options contact your local JBL dealer 6 www jbl com
