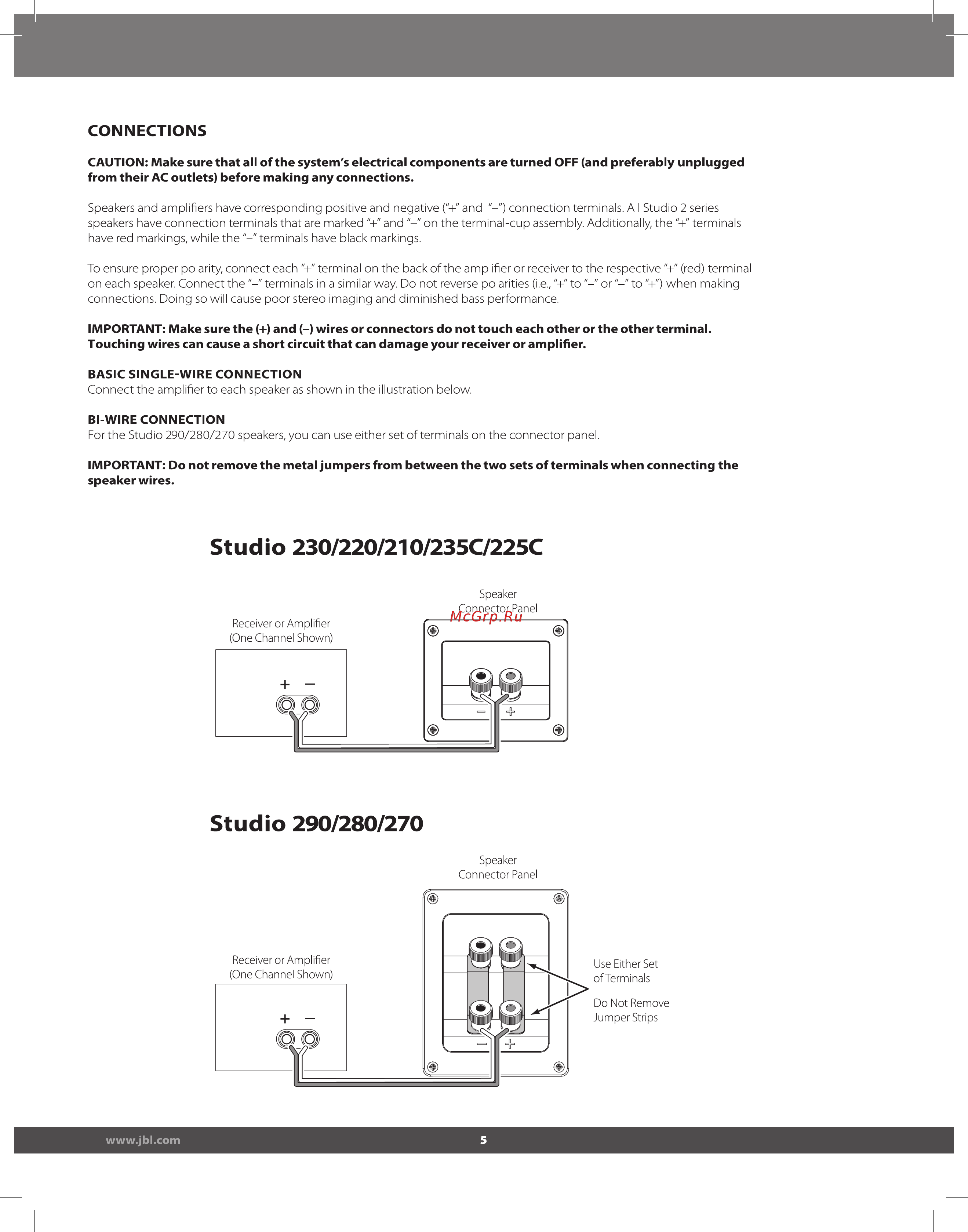

CONNECTIONS CAUTION Make sure that all of the system s electrical components are turned OFF and preferably unplugged from their AC outlets before making any connections Speakers and amplifiers have corresponding positive and negative and connection terminals All Studio 2 series speakers have connection terminals that are marked and on the terminal cup assembly Additionally the terminals have red markings while theterminals have black markings To ensure proper polarity connect each terminal on the back of the amplifier or receiver to the respective red terminal on each speaker Connect theterminals in a similar way Do not reverse polarities i e toorto when making connections Doing so will cause poor stereo imaging and diminished bass performance IMPORTANT Make sure the and wires or connectors do not touch each other or the other terminal Touching wires can cause a short circuit that can damage your receiver or amplifier BASIC SINGLE WIRE CONNECTION Connect the amplifier to each speaker as shown in the illustration below BI WIRE CONNECTION For the Studio 290 280 270 speakers you can use either set of terminals on the connector panel IMPORTANT Do not remove the metal jumpers from between the two sets of terminals when connecting the speaker wires Studio 230 220 210 235C 225C Speaker Connector Panel Receiver or Amplifier One Channel Shown Studio 290 280 270 Speaker Connector Panel Receiver or Amplifier One Channel Shown Use Either Set ofTerminals Do Not Remove Jumper Strips www jbl com 5
