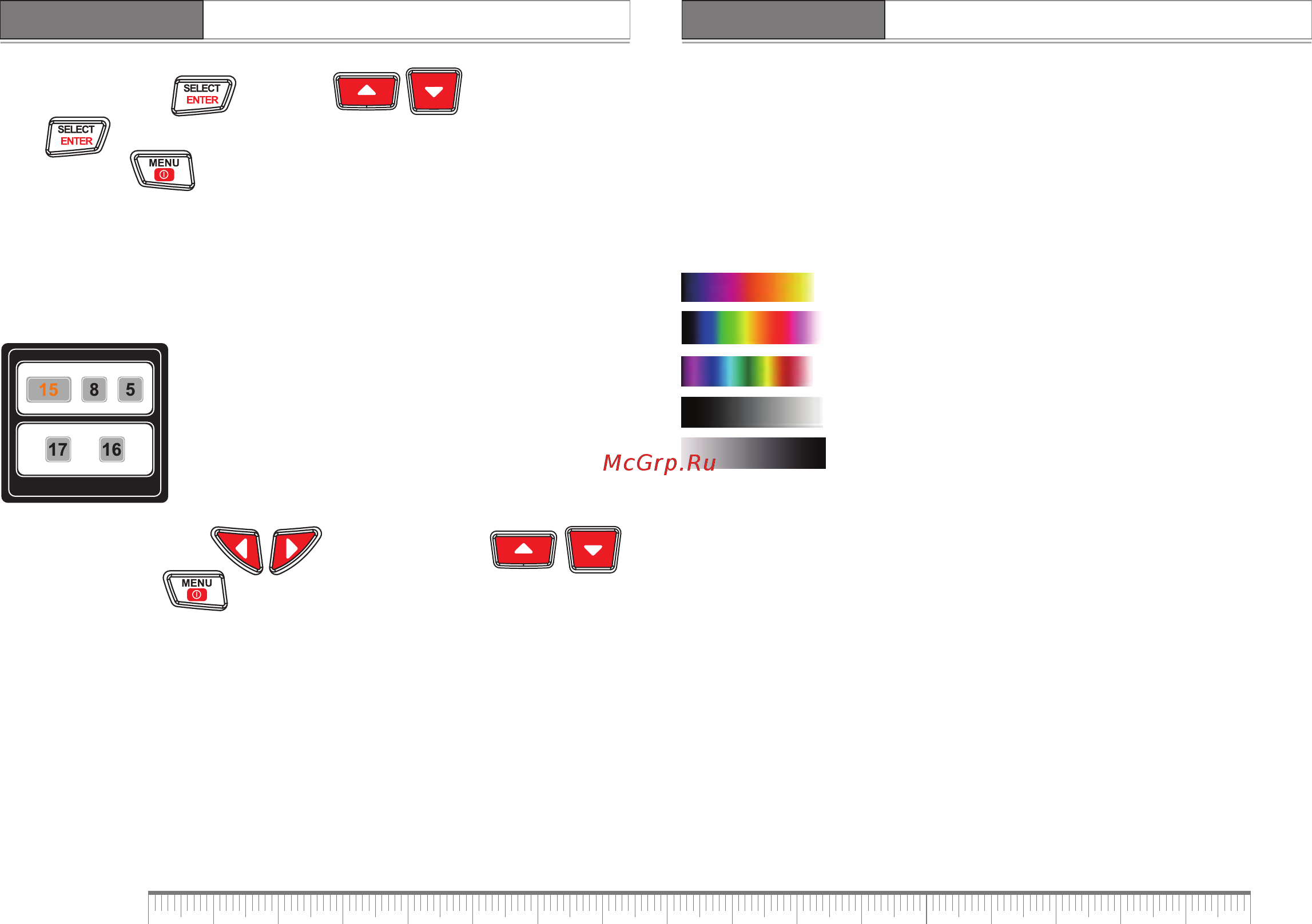

To change settings press , by pressing install necessary value,

press to save changes.

To exit menu press .

Date and time setting

Date and time format:

- year, month, date;

- hour, minute.

To switch between the fields use , to change the value use .

To return to menu press .

Units of temperature

The product displays the temperature in units of °C or °F.

Temperature of reflective background

When emissivity of investigated object is low, thermal radiation of surrounding objects and

reflective background can influence measuring accuracy. To compensate such influence, set

the temperature of reflective background within 0-36 °С.

Color palette

Available color palettes:

Iron red

Rainbow

Rainbow high contrast

Grey scale (palette 1)

Grey scale (palette 2)

Correctly selected color palette provides more correct and informative image.

Emissivity

All objects emit thermal energy. Emitted energy quantity depends on the surface temperature

and object emissivity. The product can measure emission on the surface of object and calculate

object temperature. Objects with different surfaces but with the same temperature can emit

different quantity of thermal energy. Many objects (e.g. coated metal, wood, water, skin and

texture) possess high emissivity (0,9 and more), and emit more energy than glossy surfaces

and uncoated metal, because their emissivity is less than 0,6. Adjustment of emissivity helps

to take this feature into consideration and minimize inaccuracy of temperature measurement.
