User manual

THERMAL IMAGER

IR-CAM 2 CONDTROL

User manual

THERMAL IMAGER

IR-CAM 2 CONDTROL

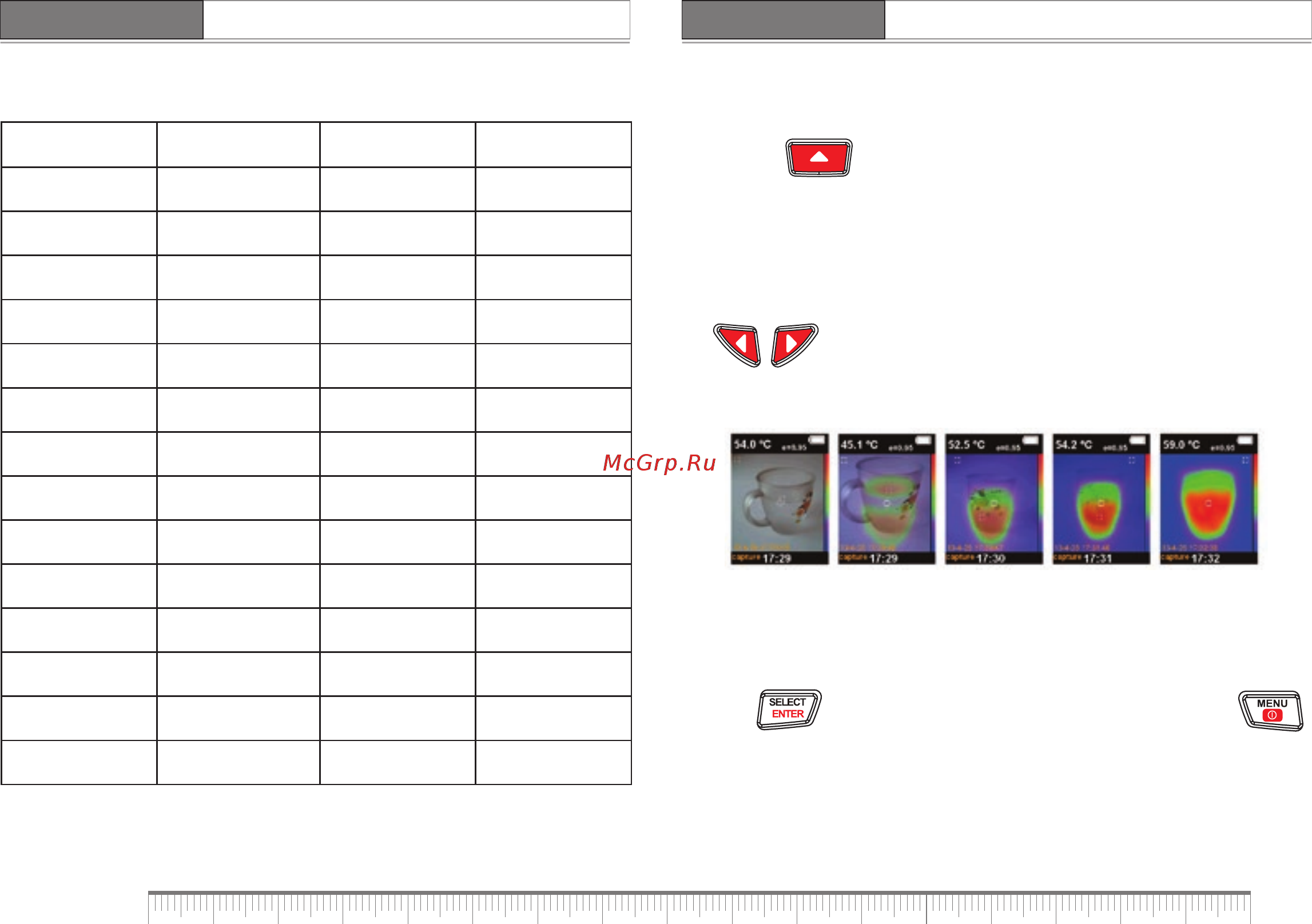

Emissivity of some materials

Material Emissivity Material Emissivity

Asphalt 0.90~0.98 Black cloth 0.98

Concrete 0.94 Human skin 0.98

Cement 0.96 Bubble 0.75~0.80

Sand 0.90 Charcoal dust 0.96

Soil 0.92~0.96 Paint 0.80~0.95

Water 0.92~0.96 Matte paint 0.97

Ice 0.96~0.98 Black rubber 0.94

Snow 0.83 Plastic 0.85~0.95

Glass 0.90~0.95 Wood 0.90

Ceramic 0.90~0.94 Paper 0.70~0.94

Marble 0.94 Chromic oxide 0.81

Gypsum 0.80~0.90 Copper oxide 0.78

Mortar 0.89~0.91 Ferric oxide 0.78~0.82

Brick 0.93~0.96 Texture 0.90

Marking of hot/cold spot temperature

If the function is ON, the areas of hottest and coldest temperature will be marked on the

display.

Elimination of infrared camera noise

Put infrared imaging sensor closer to flat surface with homogeneous temperature.

Press and hold until you see «adjust» on the display.

LED light

To turn ON/OFF the LED light press and hold the trigger.

Display modes

Use to choose display mode. The product possesses 5 variants of mixing visible

and infrared images.

Image capture and storage

Direct the product on the object. Press the trigger.

The image and processing settings of the object will be captured. To save the image on memory

card press , to continue taking measures without saving the image press

or the trigger. Micro SD memory card (4 Gb) which is included in the set can store up to 25000

images. If memory card is not installed or full, you will see «NO SD» or «FULL» on the display.
