Netgear JNR3210 [30/122] Genie advanced home
![Netgear JNR3210 [30/122] Genie advanced home](/views2/1205505/page30/bg1e.png)
30
4
4. genie Advanced Home
Specifying custom settings

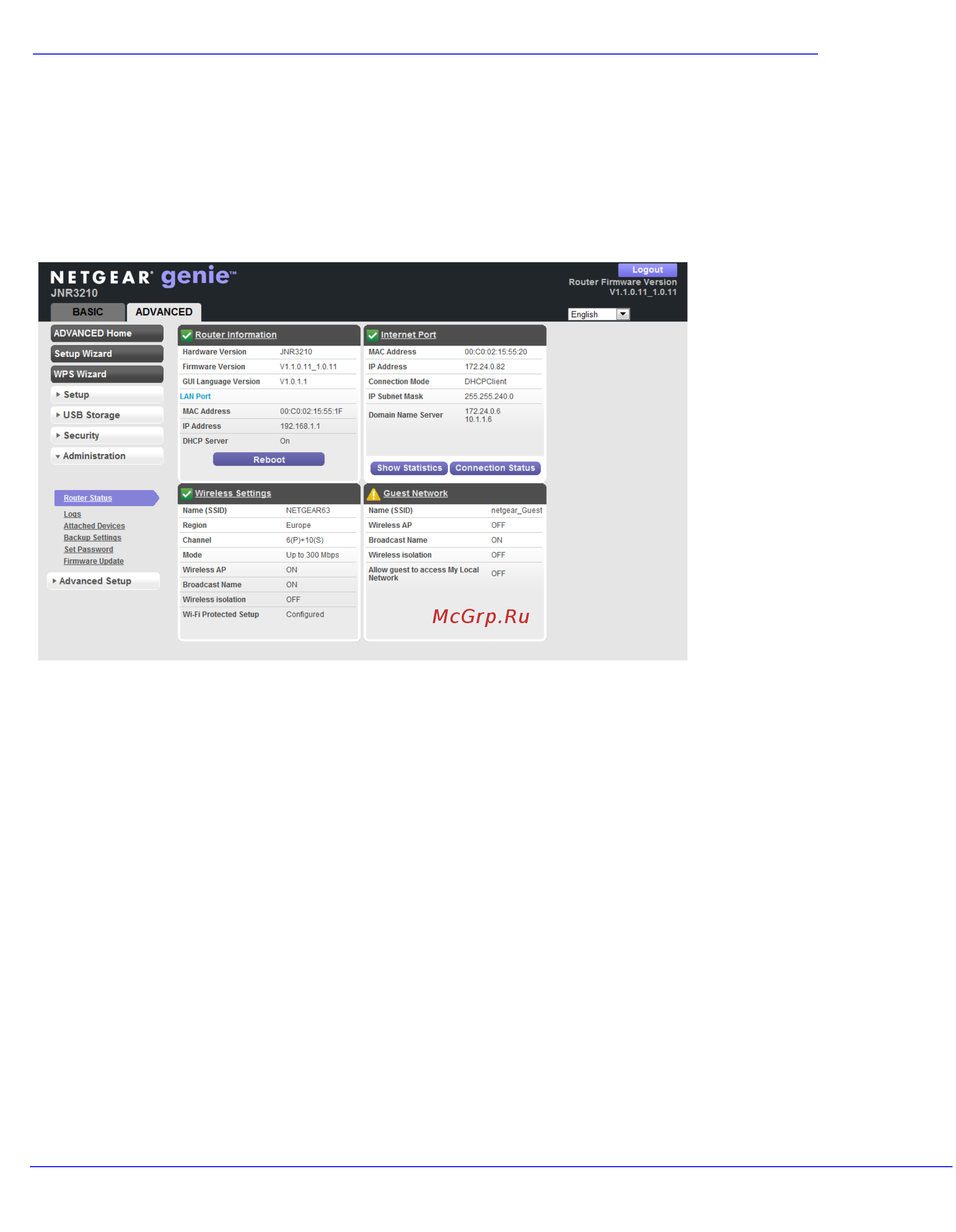

This chapter explains the features available from the genie Advanced Home screen, shown in
the following figure:
This chapter contains the following sections:
• Setup Wizard
• WPS Wizard
• Setup Menu
• WAN Setup
• LAN Setup
• Quality of Service (QoS) Setup
Some selections on the Advanced Home screen
are described in separate chapters:
• USB
Storage. See Chapter 5, USB Storage.
• Security. See Chapter 7, Security.
• Adminis
tration. See Chapter 8, Administration.
• Advanc
ed Setup. See Chapter 9, Advanced Settings.
