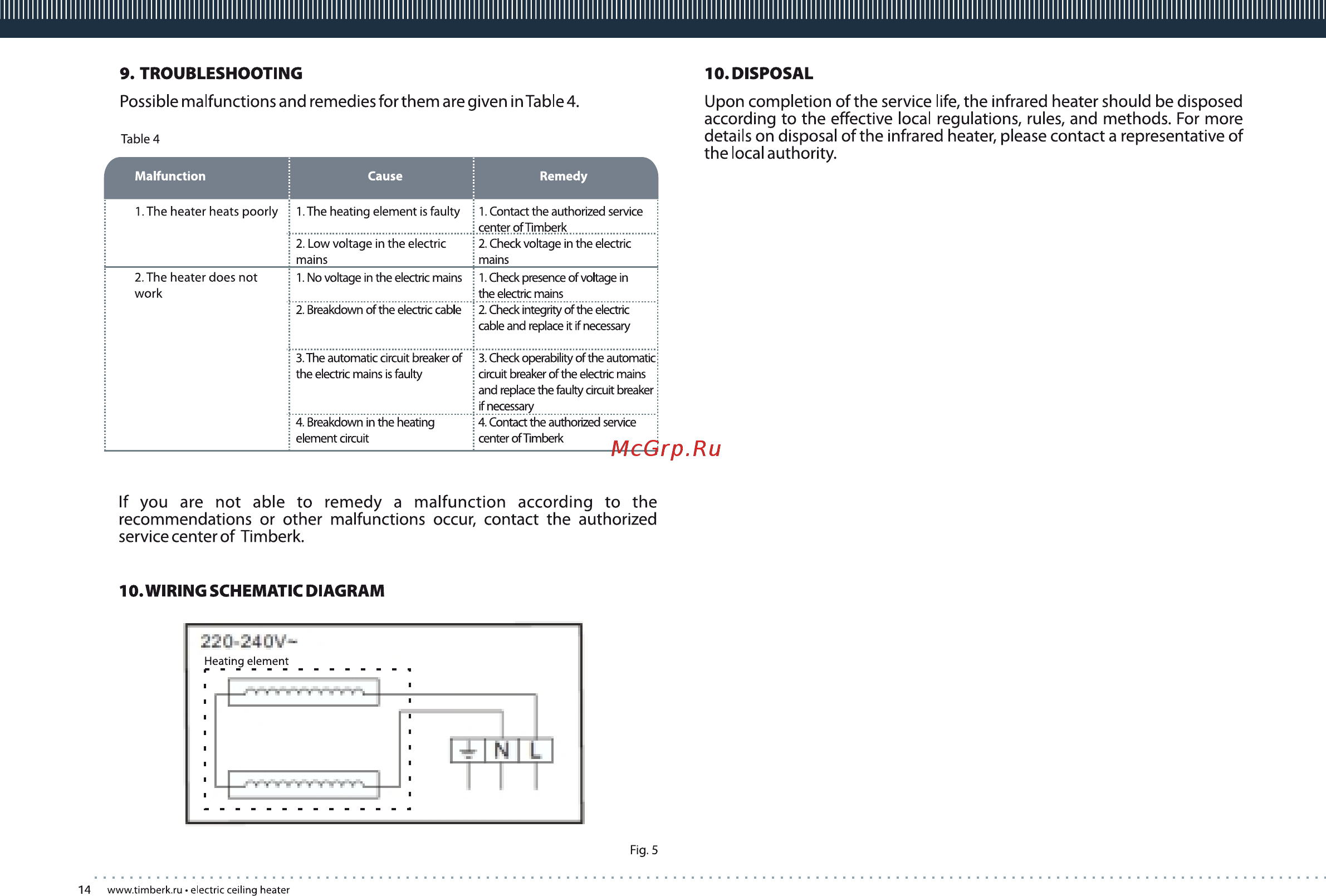

Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 9 TROUBLESHOOTING 10 DISPOSAL Possible malfunctions and remedies for them are given inTable4 Upon completion of the service life the infrared heater should be disposed according to the effective local regulations rules and methods For more details on disposal of the infrared heater please contact a representative of the local authority Table 4 Malfunction 1 The heater heats poorly Cause 1 The heating element is faulty 2 Low voltage in the electric mains 2 The heater does not work 1 No voltage in the electric mains 2 Breakdown of the electric cable 3 The automatic circuit breaker of the electric mains is faulty 4 Breakdown in the heating element circuit Remedy 1 Contact the authorized service center of Timberk 2 Check voltage in the electric mains 1 Check presence of voltage in the electric mains 2 Check integrity of the electric cable and replace it if necessary 3 Check operability of the automatic circuit breaker of the electric mains and replace the faulty circuit breaker if necessary 4 Contact the authorized service center of Timberk If you are not able to remedy a malfunction according to the recommendations or other malfunctions occur contact the authorized service center of Timberk 10 WIRING SCHEMATIC DIAGRAM Fig 5 14 www timberk ru electric ceiling heater
