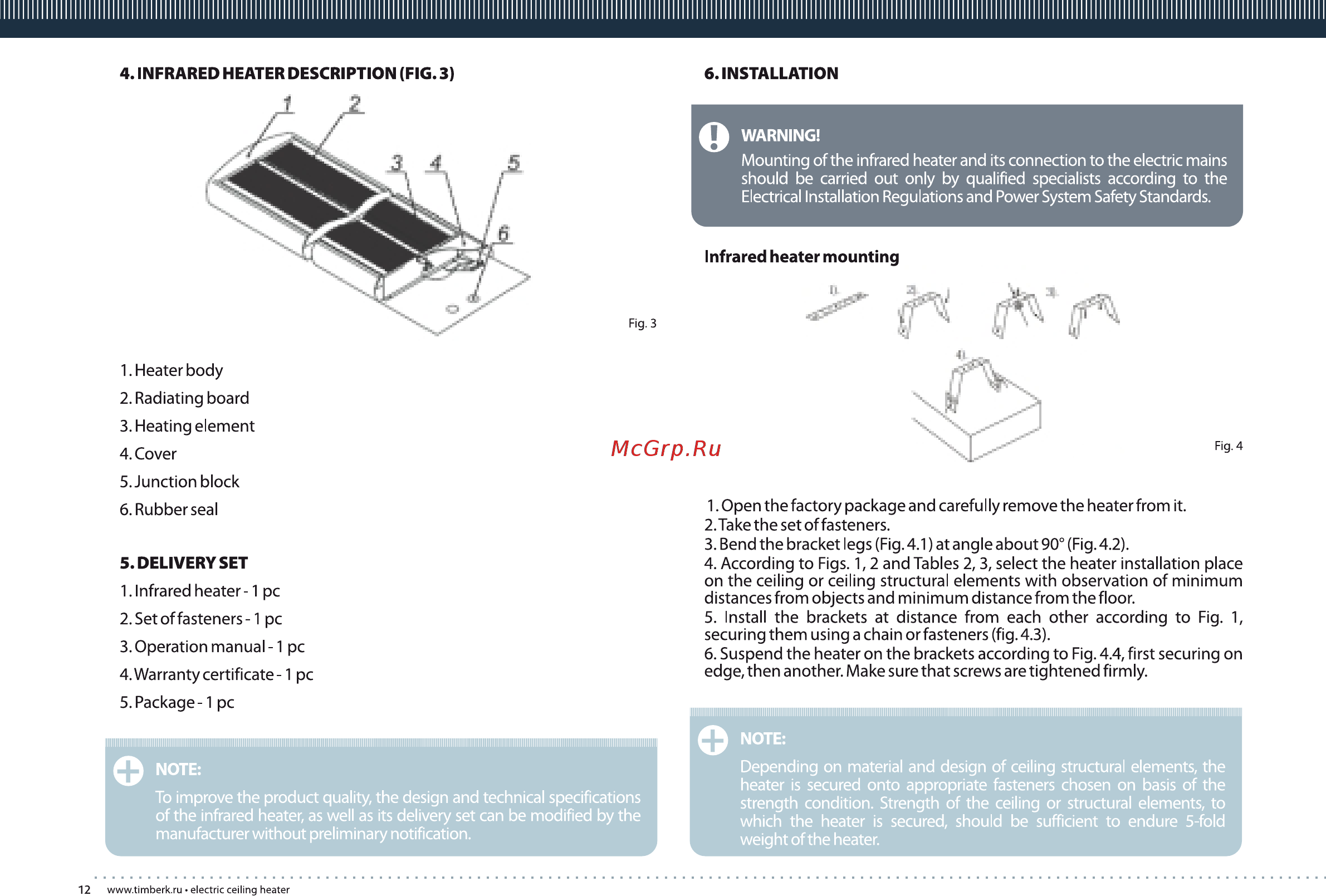

Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 4 INFRARED HEATER DESCRIPTION FIG 3 6 INSTALLATION Q WARNING Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the Electrical Installation Regulations and Power System Safety Standards Infrared heater mounting 1 Heater body 2 Radiating board 3 Heating element Fig 4 4 Cover 5 Junction block 6 Rubber seal 5 DELIVERY SET 1 Infrared heater 1 pc 2 Set of fasteners 1 pc 3 Operation manual 1 pc 4 Warranty certificate 1 pc 5 Package 1 pc llllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll III NOTE To improve the product quality the design and technical specifications of the infrared heater as well as its delivery set can be modified by the manufacturer without preliminary notification 12 www timberk ru electric ceiling heater 1 Open the factory package and carefully remove the heater from it 2 Take the set of fasteners 3 Bend the bracket legs Fig 4 1 at angle about 90 Fig 4 2 4 According to Figs 1 2 and Tables 2 3 select the heater installation place on the ceiling or ceiling structural elements with observation of minimum distances from objects and minimum distance from the floor 5 Install the brackets at distance from each other according to Fig 1 securing them using a chain or fasteners fig 4 3 6 Suspend the heater on the brackets according to Fig 4 4 first securing on edge then another Make sure that screws are tightened firmly III lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II lllllllllllllllllll II llllllllllllllllllllll II lllllllllllllllllll II llllllllllllllllll NOTE Depending on material and design of ceiling structural elements the heater is secured onto appropriate fasteners chosen on basis of the strength condition Strength of the ceiling or structural elements to which the heater is secured should be sufficient to endure 5 fold weight of the heater
