Содержание
- Timberk 1
- Руководство по эксплуатации instruction manual 1
- Важная информация 2
- Меры предосторожности 2
- Уважаемый покупатель 2
- Область применения 3
- Основные особенности 3
- Принцип работы 3
- Рабочие характеристики 3
- Русский 3
- Минимальные поверхностей 4
- Примечание 4
- Размерные характеристики 4
- Расстояния от обогревателя до других 4
- Техническиехарактеристики 4
- Внимание 5
- Комплект поставки 5
- Описание инфракрасного обогревателя рис 3 5
- Примечание 5
- Русский 5
- Установка 5
- Ф внимание 5
- Внимание 6
- Монтаж инфракрасного обогревателя 6
- Подключение к электрической сети 6
- Примечание 6
- Ф внимание 6
- Эксплуатация инфракрасного обогревателя 6
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim llllllllllllllllllllll 7
- Обслуживание 7
- Примечание 7
- Принципиальная электрическая схема 7
- Русский 7
- Устранение неисправностей 7
- Утилизация 7
- Ф примечание 7
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil 8
- Гарантийный талон вложен в упаковку изделия 8
- Изготовитель 8
- Изделие соответствует директиве eec 89 336 касающейся электромагнитного оборудования 8
- Импортёр 8
- Информация о сертификации 8
- По вопросам сервисной поддержки и качества приобретенного товара просьба обращаться по телефону 8
- Сертификата 8
- Срок действия 8
- Товар сертифицирован на территории россии органом по сертификации 8
- Dear customer 9
- English 9
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim llllllllllllllllllllll 9
- Important information 9
- Page 9 9
- Precautions 9
- Area of application 10
- Main features 10
- Operation principle 10
- Page 10 10
- Technical specifications 10
- Working parameters 10
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim 11
- Llllllllllllllllllllll 11
- Page 11 11
- Delivery set 12
- Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 12
- Infrared heater description fig 3 6 installation 12
- Infrared heater mounting 12
- Page 12 12
- Q warning 12
- Connection to electric mains 13
- English 13
- Illlllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 13
- Lllllllllllllllllllll 13
- Maintenance 13
- Operation 13
- Page 13 13
- Q warning 13
- Details on disposal of the infrared heater please contact a representative of the local authority 14
- Disposal 14
- If you are not able to remedy a malfunction according to the 14
- Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 14
- Page 14 14
- Possible malfunctions and remedies for them are given intable4 14
- Recommendations or other malfunctions occur contact the authorized 14
- Service center of timberk 14
- Troubleshooting 14
- Upon completion of the service life the infrared heater should be disposed according to the effective local regulations rules and methods for more 14
- Wiring schematic diagram 14
- Certificate no 15
- Certification information 15
- English 15
- Guarantee card is enclosed to the product s packing 15
- Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim llllllllllllllllllllll 15
- Importer 15
- Manufacturer 15
- Page 15 15
- Product is certified in the territory of russia as per certification 15
- Should you have any questions regarding service maintenance and the quality of purchased products please do not hesitate to contact us on the phone 15
- The product complies with eec directive 89 336 regarding electromagnetic equipment 15
- Validity period 15
- Page 16 16
Похожие устройства
- Timberk TOR 21.1507 MG I Инструкция по эксплуатации
- Timberk TFH T15DDM Инструкция по эксплуатации
- Timberk TOR 21.1206 HB I Инструкция по эксплуатации
- Timberk TFHS20TL.SN Инструкция по эксплуатации
- Timberk TFH T15TL.D Инструкция по эксплуатации
- Timberk TFH W250.ZM Инструкция по эксплуатации
- Timberk TFH S20NFM Инструкция по эксплуатации
- Gree U-cool GWH12UB-K3DNA1A Инструкция по эксплуатации
- Gree GJC07AA-E3MNC1A Инструкция по эксплуатации
- Gree U-cool GWH09UB-K3DNA1A Инструкция по эксплуатации
- Gree Bee Plasma GWH24ND-K3NNB3B Инструкция по эксплуатации
- Gree Cozy Classic GWH12MB-K3NNA4A Инструкция по эксплуатации
- Gree Cozy Classic GWH18MC-K3NNA4A Инструкция по эксплуатации
- Gree Cozy Classic GWH24MD-K3NNA4A Инструкция по эксплуатации
- Gree GWH28 FANK3A1A Инструкция по эксплуатации
- Gree Artful GWHN12 ABNK3A1A Инструкция по эксплуатации
- Gree Artful GWHN18 ACNK3A1A Инструкция по эксплуатации
- Gree Artful GWHN24 ACNK3A1A Инструкция по эксплуатации
- Gree Change GWH12KF-K3DNA5A Инструкция по эксплуатации
- Gree Change GWH18KG-K3DNA5A Инструкция по эксплуатации

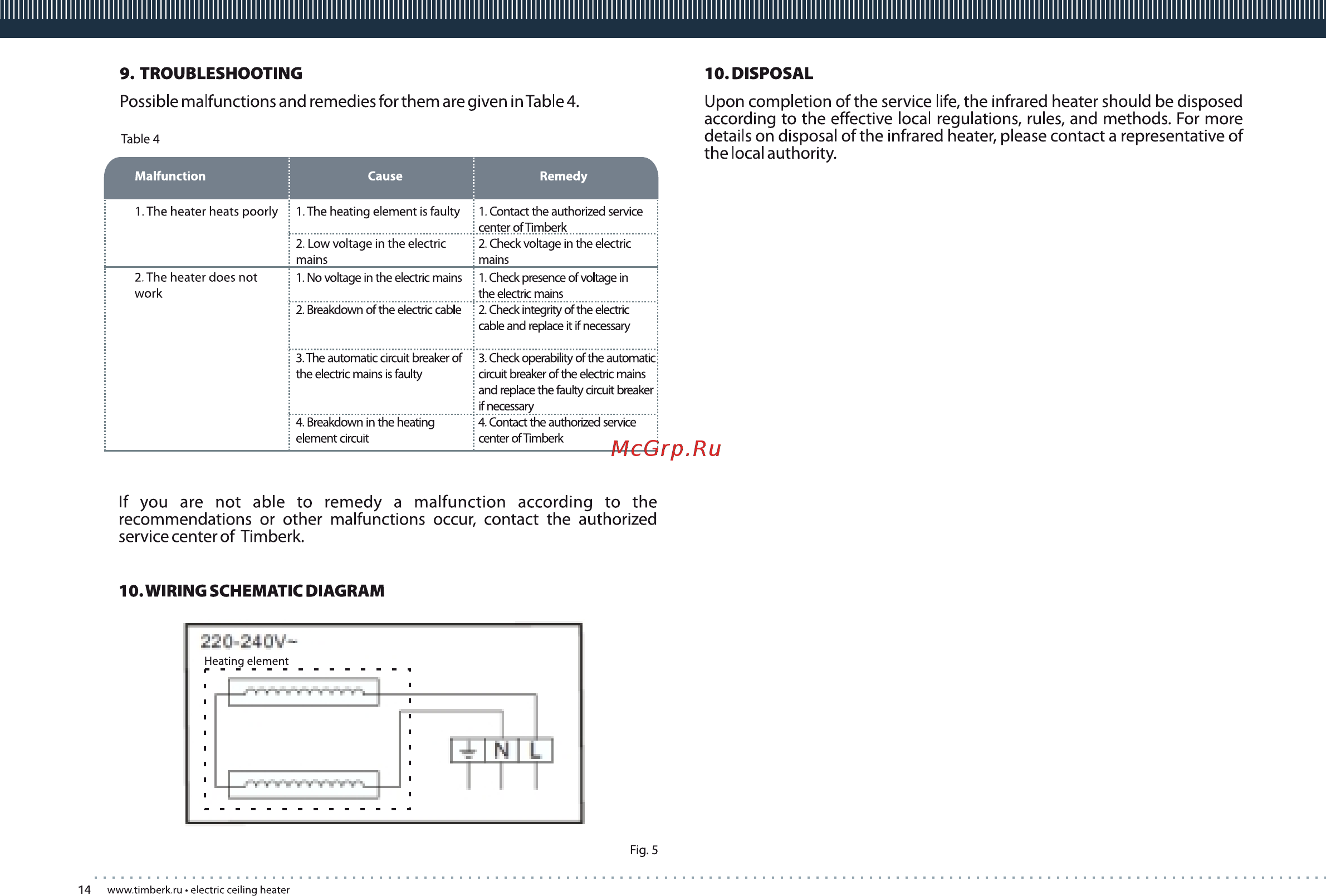

Illllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll 9 TROUBLESHOOTING 10 DISPOSAL Possible malfunctions and remedies for them are given inTable4 Upon completion of the service life the infrared heater should be disposed according to the effective local regulations rules and methods For more details on disposal of the infrared heater please contact a representative of the local authority Table 4 Malfunction 1 The heater heats poorly Cause 1 The heating element is faulty 2 Low voltage in the electric mains 2 The heater does not work 1 No voltage in the electric mains 2 Breakdown of the electric cable 3 The automatic circuit breaker of the electric mains is faulty 4 Breakdown in the heating element circuit Remedy 1 Contact the authorized service center of Timberk 2 Check voltage in the electric mains 1 Check presence of voltage in the electric mains 2 Check integrity of the electric cable and replace it if necessary 3 Check operability of the automatic circuit breaker of the electric mains and replace the faulty circuit breaker if necessary 4 Contact the authorized service center of Timberk If you are not able to remedy a malfunction according to the recommendations or other malfunctions occur contact the authorized service center of Timberk 10 WIRING SCHEMATIC DIAGRAM Fig 5 14 www timberk ru electric ceiling heater
