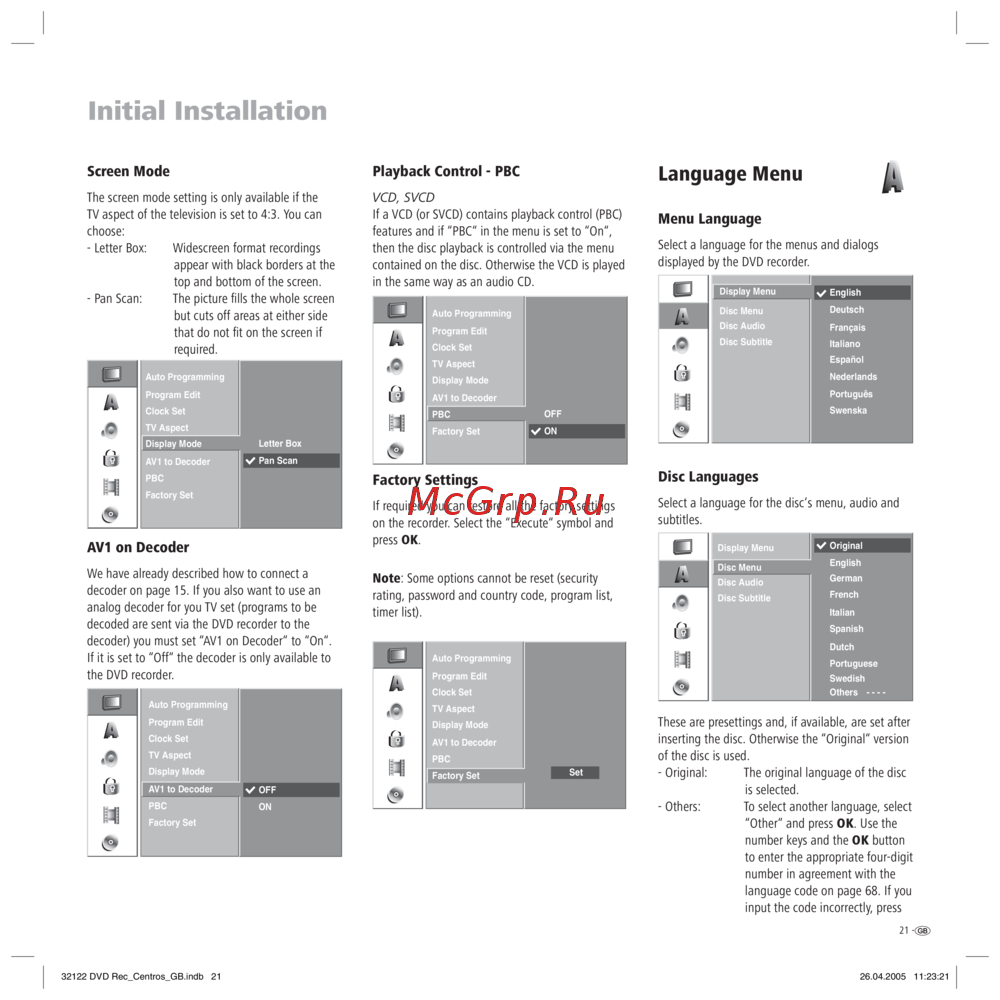

21 -
Screen Mode
The screen mode setting is only available if the
TV aspect of the television is set to 4:3. You can
choose:
- Letter Box: Widescreen format recordings
appear with black borders at the
top and bottom of the screen.
- Pan Scan: The picture fi lls the whole screen
but cuts off areas at either side
that do not fi t on the screen if
required.
Pan Scan
Letter Box
Auto Programming
TV Aspect
Program Edit
Clock Set
Display Mode
AV1 to Decoder
PBC
Factory Set
AV1 on Decoder
We have already described how to connect a
decoder on page 15. If you also want to use an
analog decoder for you TV set (programs to be
decoded are sent via the DVD recorder to the
decoder) you must set “AV1 on Decoder“ to “On“.
If it is set to “Off“ the decoder is only available to
the DVD recorder.
ON
OFF
Auto Programming
TV Aspect
Program Edit
Clock Set
Display Mode
AV1 to Decoder
PBC
Factory Set
Playback Control - PBC
VCD, SVCD
If a VCD (or SVCD) contains playback control (PBC)
features and if “PBC“ in the menu is set to “On“,
then the disc playback is controlled via the menu
contained on the disc. Otherwise the VCD is played
in the same way as an audio CD.
ON
OFF
Auto Programming
TV Aspect
Program Edit
Clock Set
Display Mode
AV1 to Decoder
PBC
Factory Set
Factory Settings
If required you can restore all the factory settings
on the recorder. Select the “Execute“ symbol and
press OK.
Note: Some options cannot be reset (security
rating, password and country code, program list,
timer list).
Set
Auto Programming
TV Aspect
Program Edit
Clock Set
Display Mode
AV1 to Decoder
PBC
Factory Set
Language Menu
Menu Language
Select a language for the menus and dialogs
displayed by the DVD recorder.
Disc Audio
Display Menu
Disc Menu
Disc Subtitle
Deutsch
Italiano
Español
Português
Swenska
Nederlands
English
Français
Disc Languages
Select a language for the disc‘s menu, audio and
subtitles.
English
French
Spanish
Dutch
Portuguese
Swedish
German
Italian
Others - - - -
Original
Disc Audio
Display Menu
Disc Menu
Disc Subtitle
These are presettings and, if available, are set after
inserting the disc. Otherwise the “Original“ version
of the disc is used.
- Original: The original language of the disc
is selected.
- Others: To select another language, select
“Other“ and press OK. Use the
number keys and the OK button
to enter the appropriate four-digit
number in agreement with the
language code on page 68. If you
input the code incorrectly, press
Initial Installation
32122 DVD Rec_Centros_GB.indb 21 32122 DVD Rec_Centros_GB.indb 21 26.04.2005 11:23:2126.04.2005 11:23:21
