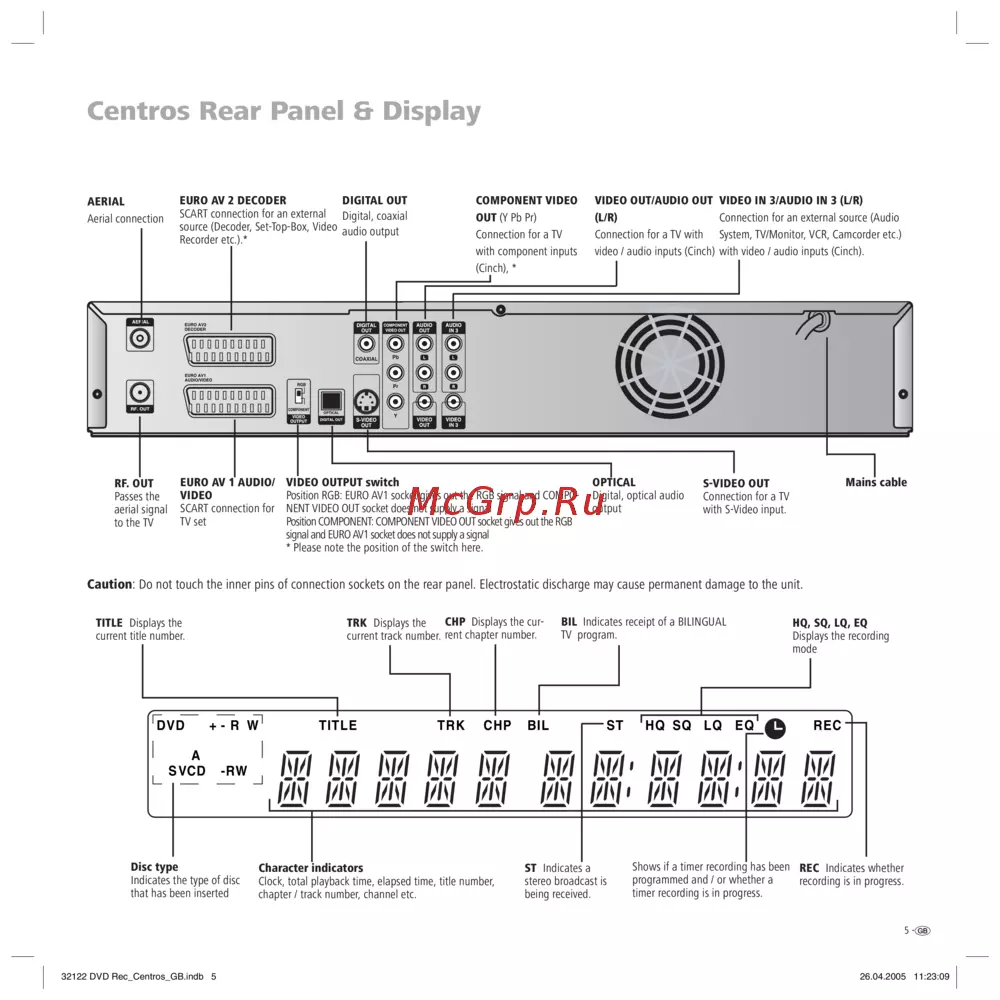

Centros Rear Panel & Display
DVD A
S
A
VCD-RW
-+ RW TITLE TV
TV
TRK CHP BIL ST HQSQ LQ EQREC
Disc type
Indicates the type of disc
that has been inserted
Character indicators
Clock, total playback time, elapsed time, title number,
chapter / track number, channel etc.
TITLE
Displays the
current title number.
TRK Displays the
current track number.
CHP Displays the cur-
rent chapter number.
BIL Indicates receipt of a BILINGUAL
TV program.
ST
Indicates a
stereo broadcast is
being received.
Shows if a timer recording has been
programmed and / or whether a
timer recording is in progress.
REC Indicates whether
recording is in progress.
HQ, SQ, LQ, EQ
Displays the recording
mode
RF. OUT
Passes the
aerial signal
to the TV
EURO AV 1 AUDIO/
VIDEO
SCART connection for
TV set
VIDEO OUTPUT switch
Position RGB: EURO AV1 socket gives out the RGB signal and COMPO-
NENT VIDEO OUT socket does not supply a signal
Position COMPONENT: COMPONENT VIDEO OUT socket gives out the RGB
signal and EURO AV1 socket does not supply a signal
* Please note the position of the switch here.
S-VIDEO OUT
Connection for a TV
with S-Video input.
OPTICAL
Digital, optical audio
output
AERIAL
Aerial connection
EURO AV 2 DECODER
SCART connection for an external
source (Decoder, Set-Top-Box, Video
Recorder etc.).*
DIGITAL OUT
Digital, coaxial
audio output
COMPONENT VIDEO
OUT (Y Pb Pr)
Connection for a TV
with component inputs
(Cinch), *
VIDEO OUT/AUDIO OUT
(L/R)
Connection for a TV with
video / audio inputs (Cinch)
VIDEO IN 3/AUDIO IN 3 (L/R)
Connection for an external source (Audio
System, TV/Monitor, VCR, Camcorder etc.)
with video / audio inputs (Cinch).
Mains cable
Caution: Do not touch the inner pins of connection sockets on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
32122 DVD Rec_Centros_GB.indb 5 32122 DVD Rec_Centros_GB.indb 5 26.04.2005 11:23:0926.04.2005 11:23:09
