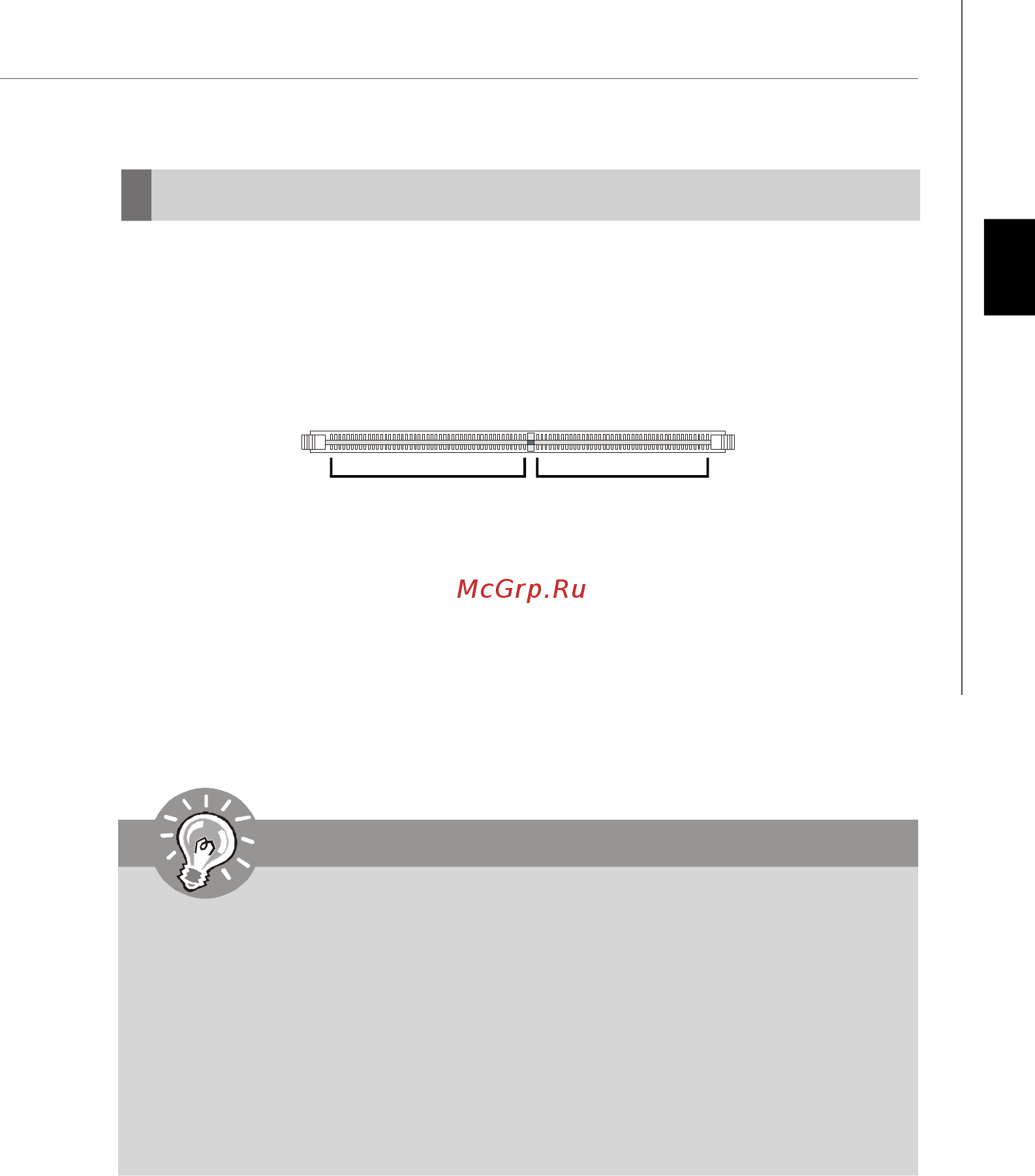

En-7
English
Memory
DDR2: DIMM1~2
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://global.msi.com.tw/
index.php?func=testreport
64x2=128 pin 56x2=112 pin
Dual-Channel Memory Population Rules
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please install two memory modules into the both DIMMs to enable dual-
channel.
Important
- DDR2 memory modules are not interchangeable with DDR and the DDR2 stan
dard is not backwards compatible. You should always install DDR2 memory
modules in the DDR2 DIMM slots.
- In Dual-Channel mode, make sure that you install memory modules of the same
type and density in different channel DIMM slots.
- To enable successful system boot-up, always insert the memory modules into the
DIMM1 first.
- Due to the chipset resource deployment, the system density will only be
detected up to 3+GB (not full 4GB) when each DIMM is installed with a 2GB
memory module.
