Fr-19
Franças

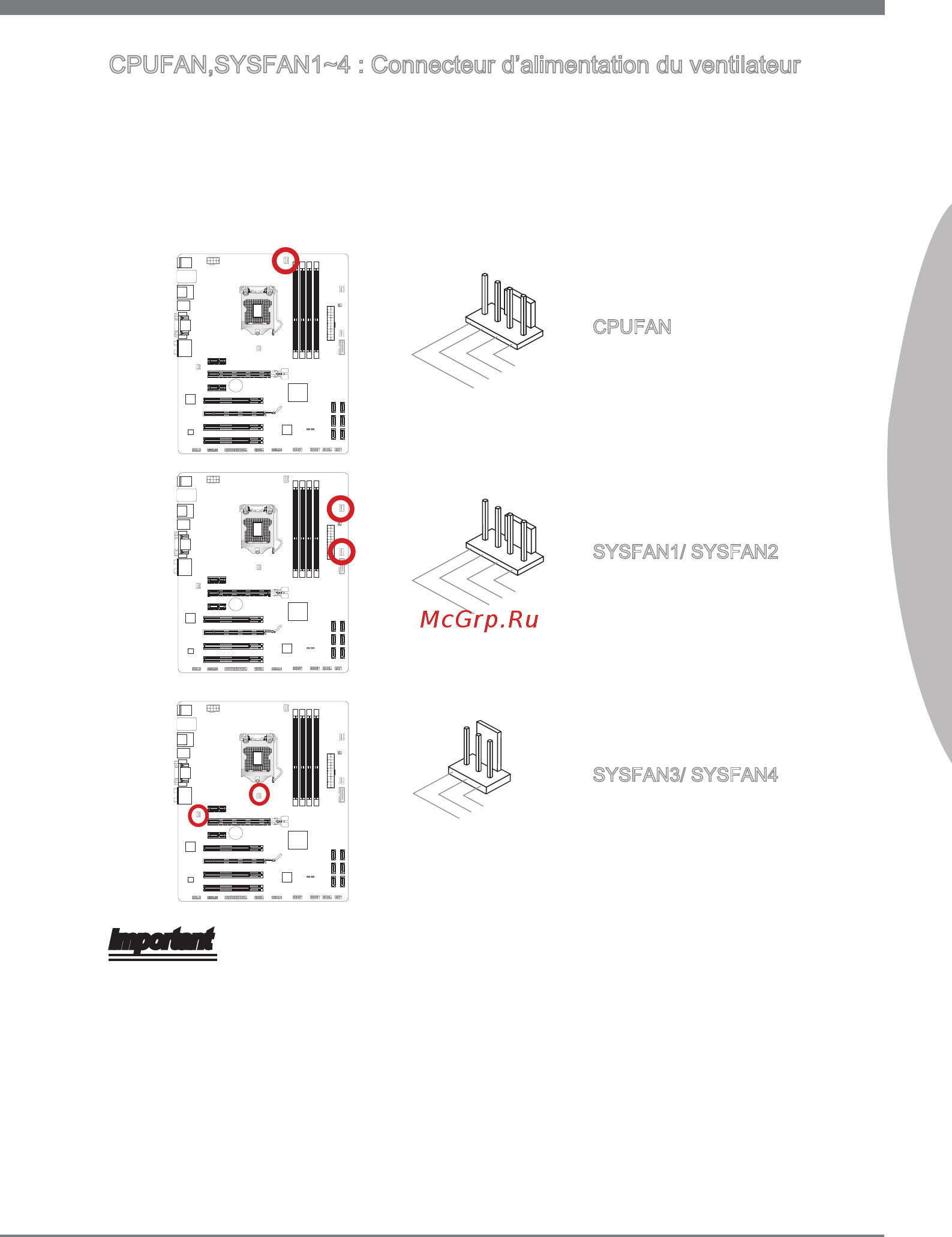

CPUFAN,SYSFAN1~4 : Connecteur d’almentaton du ventlateur
Les connecteurs d’almentaon du ventlateur supportent les ventlateurs de type +12V.
S la carte mère est équpée d’un monteur du matérel de système ntégré, vous devrez
utlser un ventlateur spécal pourvu d’un capteur de vtesse an de contrôler le ventla-
teur de l’unté centrale. N’oublez pas de connecter tous les ventlateurs. Certans ven-
tlateurs de système se connectent drectement à l’almentaton au leu de se connecter
à la carte mère. Un ventlateur de système peut être relé à n’mporte quel connecteur
de ventlateur système.
SYSFAN3/ SYSFAN4
1
.Ground
2.
FA
N V
oltage
3.Sensor
/ N
o U
se
1
.
G
r
o
u
n
d
2
.
+
1
2
V
3
.
S
e
n
s
o
r
4
.
C
o
n
t
r
o
l
CPUFAN
1.Ground
2.Contro
l
3.Sensor
4.No
us
e
SYSFAN1/ SYSFAN2
Important
Veullez vous référer au ste ocel de votre processeur ou consulter votre vendeur
pour trouver ventlateurs de refrodssement CPU recommandés.
Le connecteur CPUFAN supporte le contrôle Smart fan avec mode lnear. Vous pou
-
vez nstaller l’utltare Control Center II qu contrôlera automatquement la vtesse du
ventlateur selon la température actuelle du CPU et du système.
S’l n’y pas assez de ports sur la carte mère pour connecter tous les ventlateurs du
système, des adaptateurs sont dsponbles pour connecter drectement un ventlateur
à l’almentaton du boîter.
Avant le premer démarrage, assurez-vous qu’aucune câble n’endommage les lames
de ventlateurs.
•
•
•
•
