MSI B75MA-G43 [31/76] Chapter 1

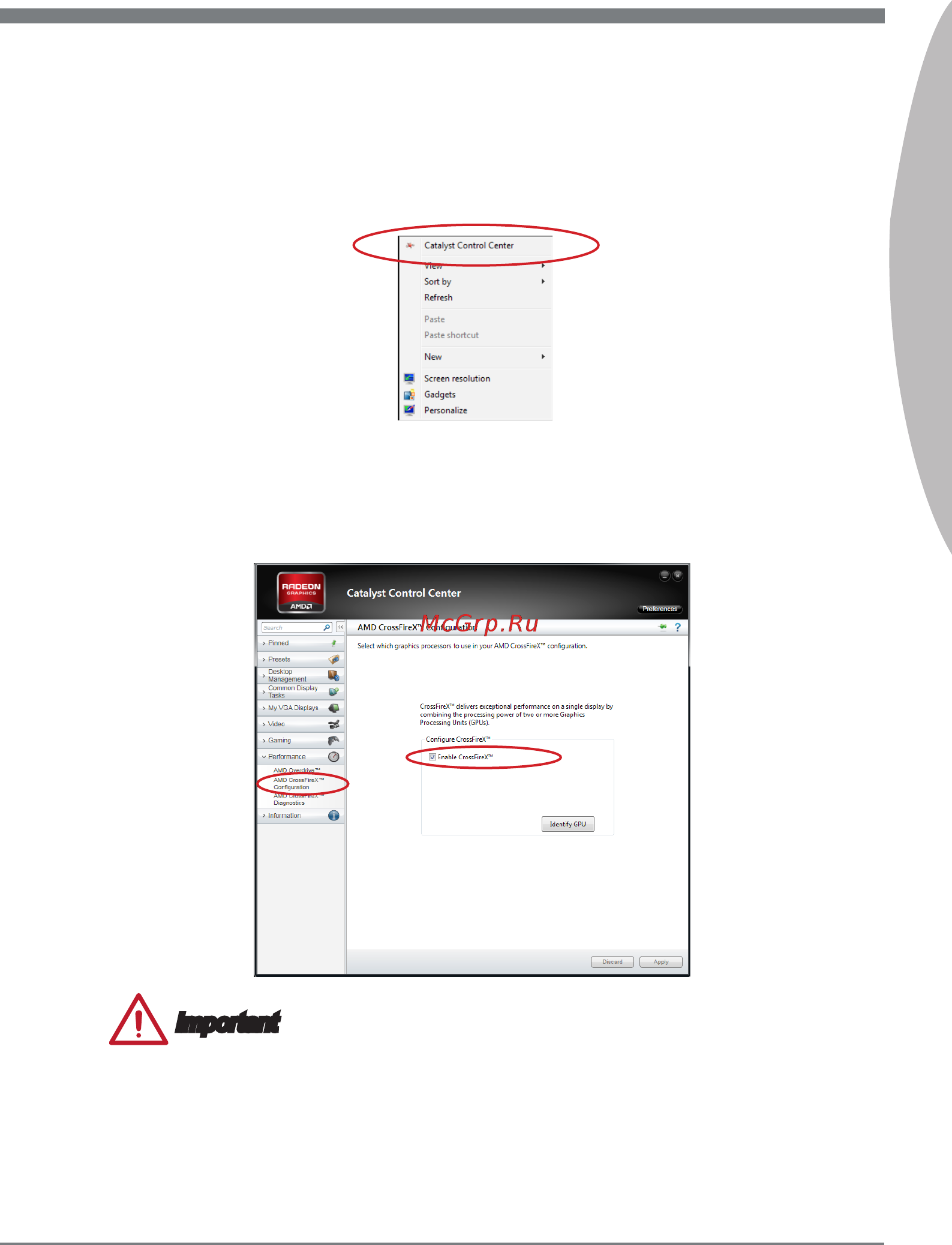

![MSI B75MA-G43 [31/76] Chapter 1](/views2/1208976/page31/bg1f.png)
1-21
MS-7798
Chapter 1
Boot up the computer and nstall the drvers and software ncluded n your vdeo
card package. For more nformaton, please refer to the manual that came wth your
vdeo card.
After all of the hardware and software has been properly nstalled, reboot the
system. After enterng the operatng system (OS), rght clck on the desktop and
choose the “Catalyst Control Center II”.
3.
4.
The CrossFre™ settng must be enabled to allow CrossFre™ mode to operate.
The follow screen appears n the Catalyst Control Center II. Dependng on your
operatng system, the screen may look derent.
5.
Important
A CrossFre
TM
system has four possble dsplay modes:
SuperTlng
Scssor Mode
Alternate Frame Renderng
Super Ant-alasng.
For more detals, please consult the graphcs card manual.
•
•
•
•
