2-7ASUS V-series M4A3000E
2.3.5 ASUS Contact information

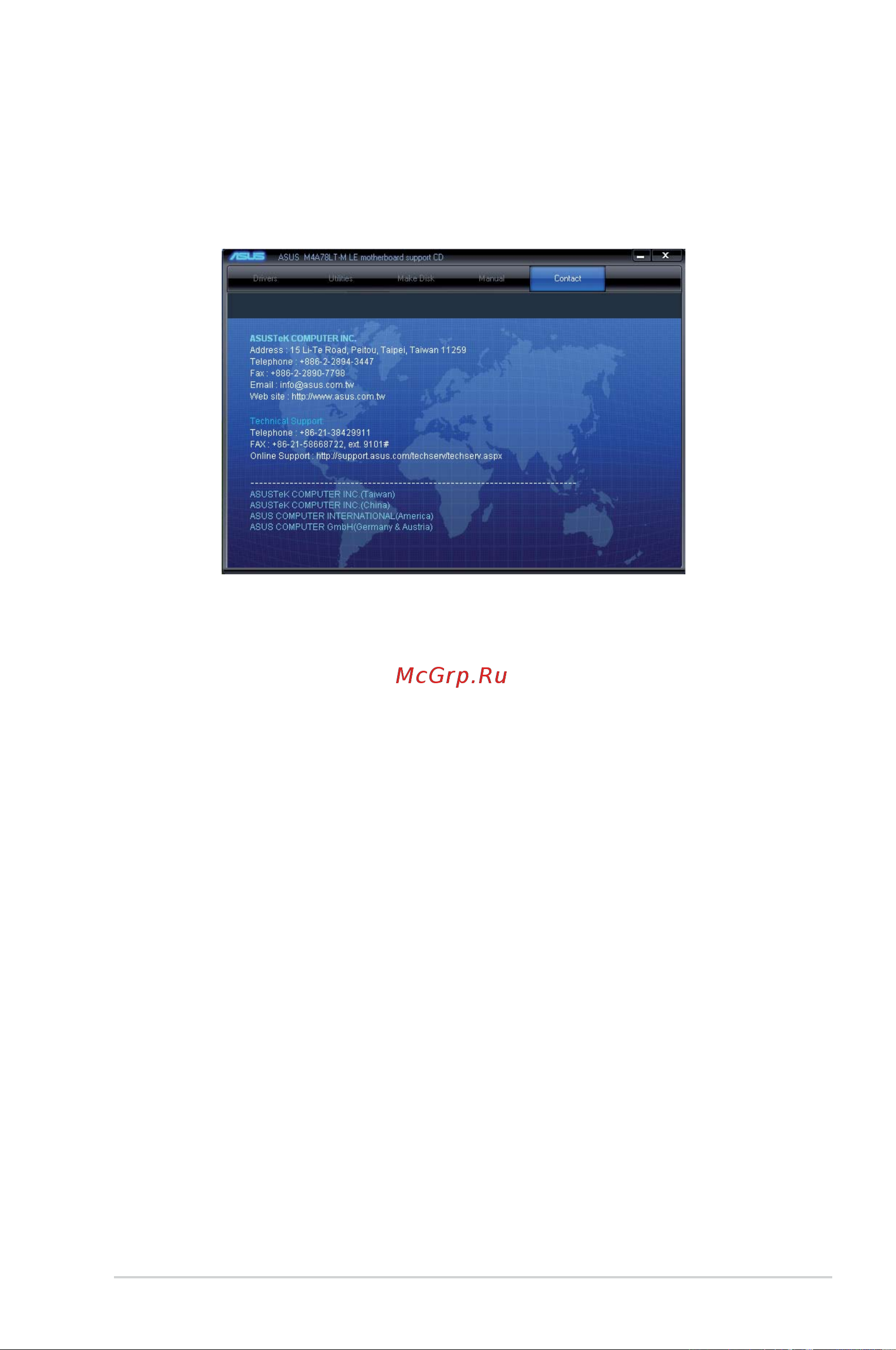

Click the Contact tab to display the ASUS contact information. You can also nd
this information on the inside front cover of this user guide.
