2-8 Chapter 2: Starting up

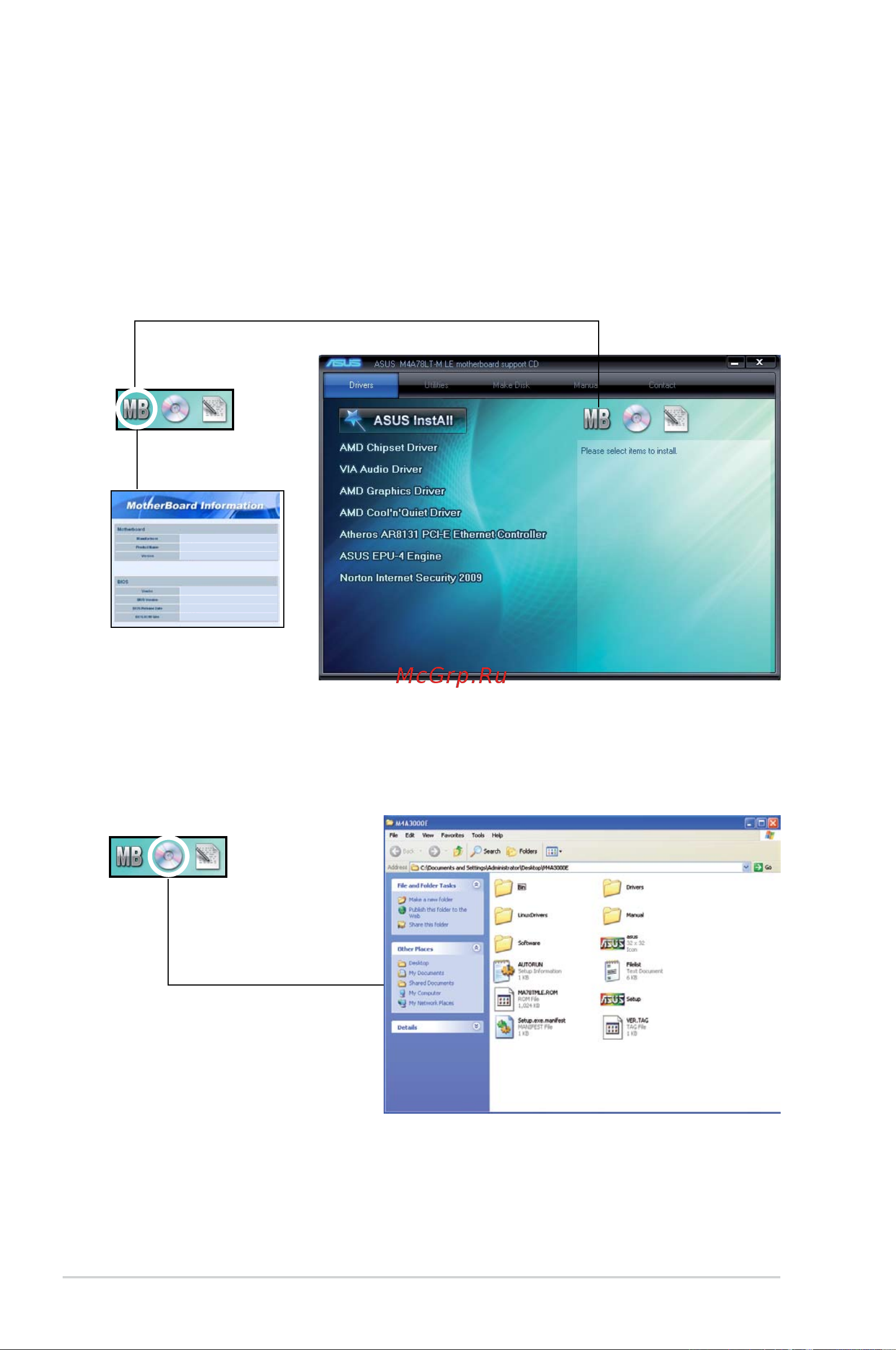

2.3.6 Other information
The icons on the top right corner of the screen give additional information on the
motherboard and the contents of the support DVD. Click an icon to display the
specied information.
Motherboard Info
Displays the general specications of the motherboard.
BrowsethisDVD
Displays the support DVD contents in graphical format.
1024 KBytes
11/16/2009
0201
American Megatrends Inc.
Rev X.0x
M4A78LT-M-LE
ASUSTeK Computer INC.
