ASUS V-series M4A3000E 4-3
3. Select the ASUS FTP site nearest
you to avoid network trafc, or
click Auto.Select. Click Next.
Updating.the.BIOS.through.the.Internet

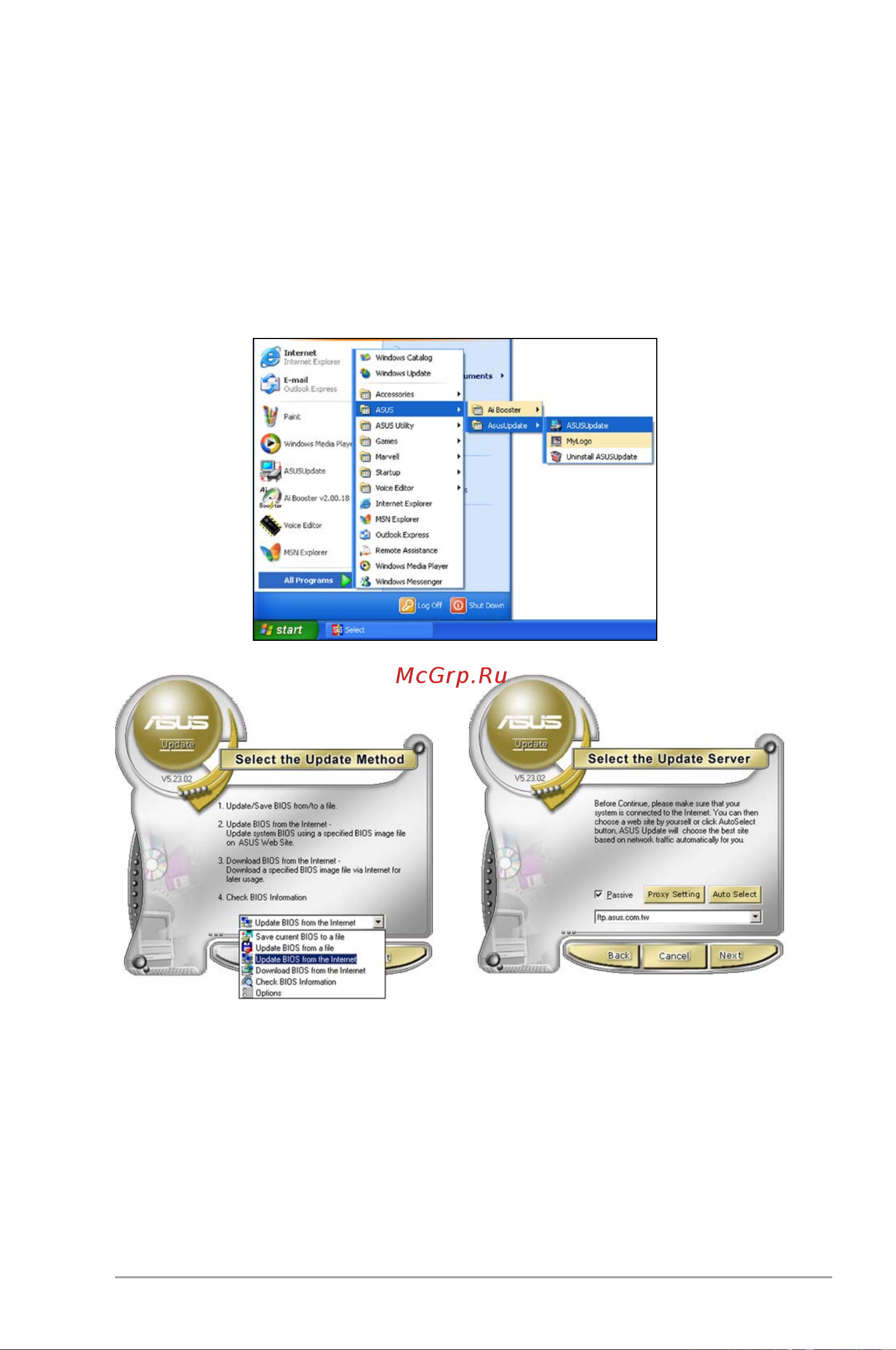

To update the BIOS through the Internet:
1. Launch the ASUS Update utility from the Windows
®
desktop by clicking Start.
>.Programs.>.ASUS.>.ASUSUpdate.>.ASUSUpdate. The ASUS Update
main window appears.
2. Select Update.BIOS from the
Internet option from the drop-down
menu, then click Next.
