Tp-Link T1600G-52TS (TL-SG2452) [23/28] Configure the switch using cli

JetStream Gigabit Smart Switch

Configuration

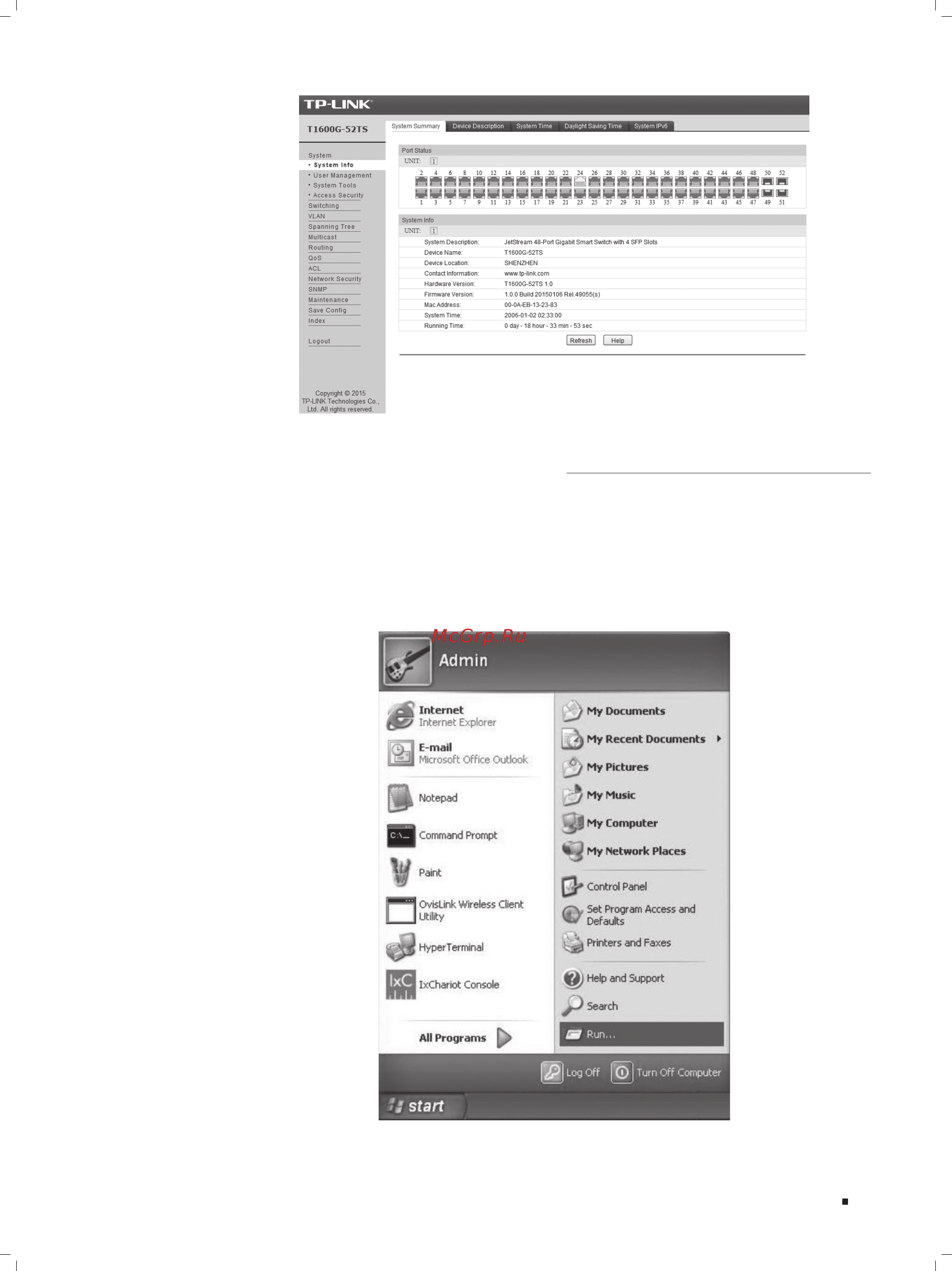

Figure 5-3 Main Page of the Switch

5.2 Conﬁgure the Switch Using CLI

You can log on to the switch and access the CLI by Logging on to the switch remotely

by a Telnet connection through an Ethernet port.

To log on to the switch by a Telnet

connection, please take the following steps:

1. Make sure the switch and the PC are in the same LAN.

2. Click Start

→

Run to open the Run window.

Figure 5-4 Open the Run window
