03
JetStream Gigabit Smart Switch
Introduction
LED Status Indication
10/100/
1000Mbps
(port 1-48)
Green
On
A 1000Mbps device is connected to the corresponding
port, but no activity.
Flashing Data is being transmitted or received.
Yellow
On
A 10/100Mbps device is connected to the
corresponding port, but no activity.
Flashing Data is being transmitted or received.
Off No device is connected to the corresponding port.
Link/Act
(port 49-52)
On
There is a device linked to the corresponding SFP port
but no activity.
Flashing
The corresponding SFP port is transmitting or
receiving data.
Off
There is no device linked to the corresponding SFP
port.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding 1000Mbps LED.
SFP Port
Designed to install the SFP module. T1600G-52TS features 4 individual SFP ports
and supports 1000M SFP module connection only.
Port Feature
Model 10/100/1000Mbps RJ45 Port SFP Port
T1600G-28TS 24 4
T1600G-52TS 48 4
■

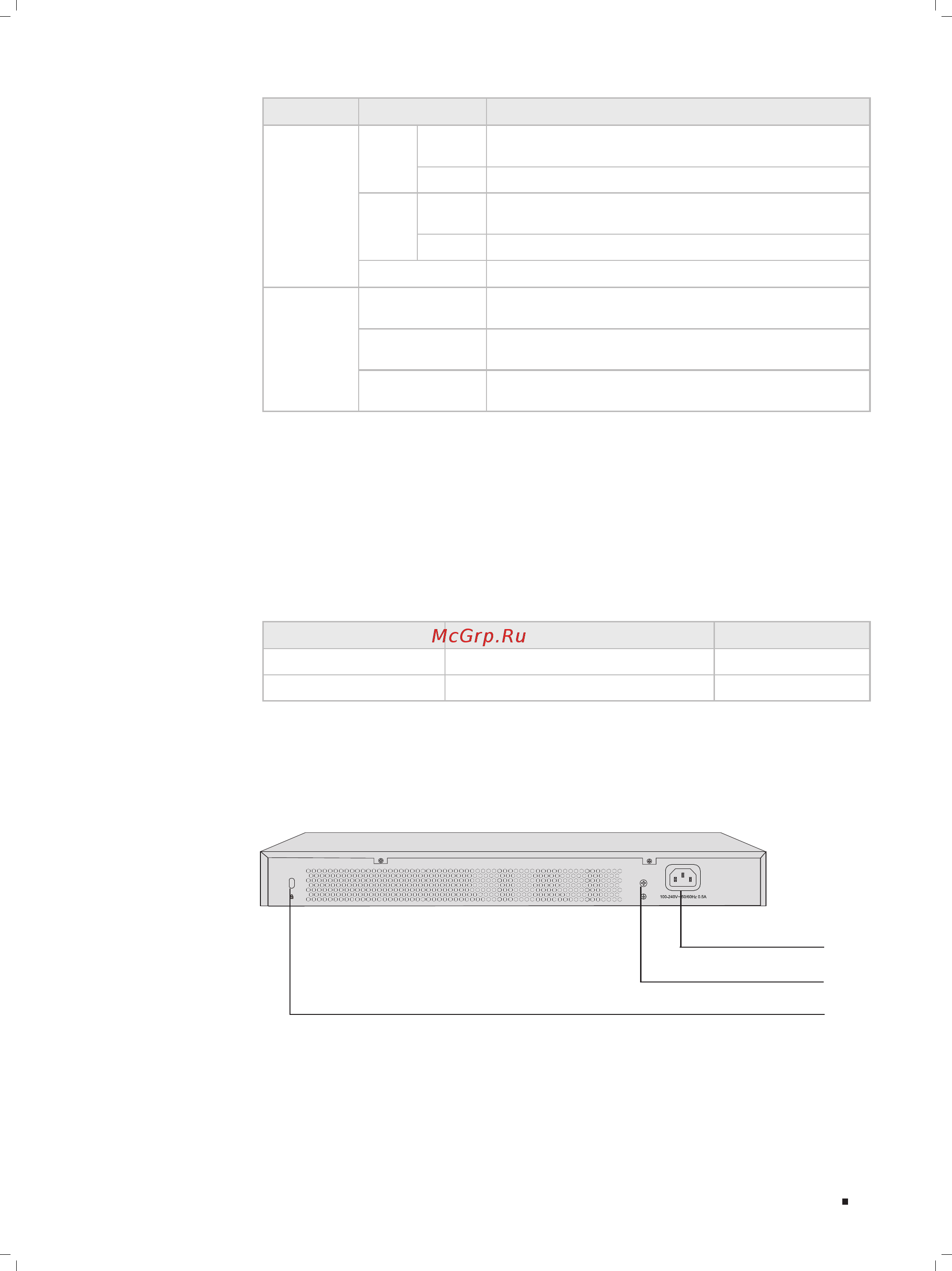

Rear Panel
The rear panel of T1600G-28TS/T1600G-52TS features a Kensington security slot, a
grounding terminal and a power socket. Here we take T1600G-28TS for example.
Groundin g Terminal
Powe r So cket
Kensington Security Slot
Figure 1-3 Rear Panel
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being
stolen.
