JetStream Gigabit Smart Switch
Introduction
05
LED Status Indication
Speed or PoE
(por t 1-24)
Green
On The port is supplying power normally
Flashing
The supply power exceeds the correponding port's
maximum power
Yellow On Overload or short circuit is detected
Off No PoE power supply is provided on the port
LED Mode Switch Button
Press this button to switch the LED status indication between Speed and PoE.
Reset
Press this button for five seconds or above to reset the software setting back to
factory default settings.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Speed or PoE LED.
SFP Port
Designed to install the SFP module. T1600G-28PS switch features 4 features 4
individual SFP ports and supports 1000M SFP module connection only.

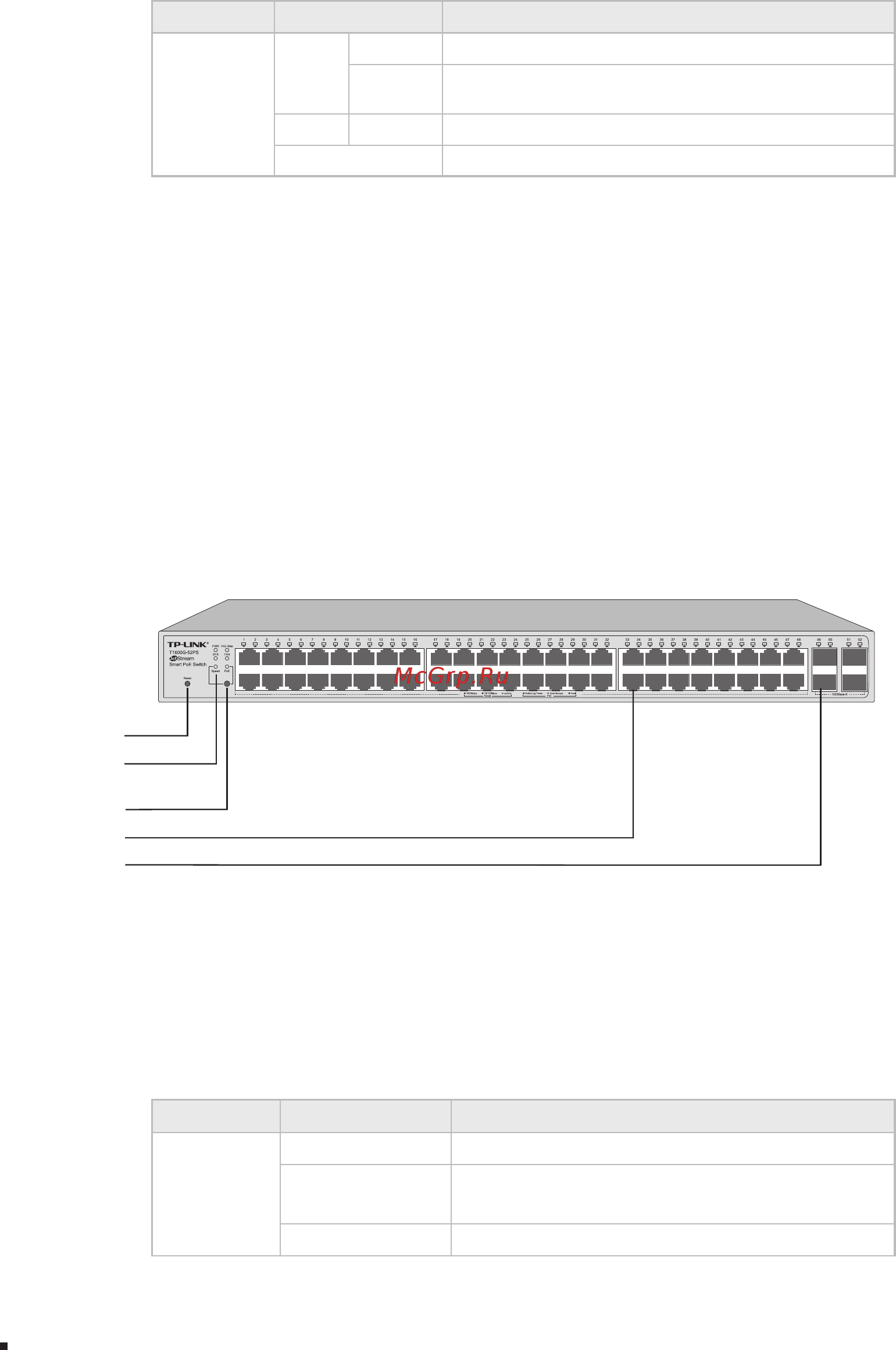

The front panel of T1600G-52PS is shown as the following figure.
Reset
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
LED Mode
Switch Button
LEDs
T1600G-52PS has an LED mode switch button which is for switching the LED
status indication. When the Speed LED is on, the port LED is indicating the data
transmission status. When the PoE LED is on, the port LED is indicating the power
supply status. By default, the Speed LED is on. Pressing the mode switch button,
the Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn
off after being on for 60 seconds and the Speed LED will light up again.
When the Speed LED is on, the port LED is indicating the data transmission status.
LED Status Indication
PWR
On The switch is powered on
Off
The switch is powered off or power supply is
abnormal
Flashing Power supply is abnormal
