JetStream Gigabit Smart Switch
Introduction
02
LEDs
LED Status Indication
PWR
On The switch is powered on
Off The switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
SYS
Flashing The switch is working normally
On/Off The switch is working abnormally
Link/Act
On
There is a device connected to the corresponding port but
no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
1000Mbps
On A 1000Mbps device is connected to the corresponding port
Off
A 10/100Mbps device or no device is connected to the
corresponding port
Reset
Press this button for 5 seconds or above to reset the software setting back to
factory default settings.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.
SFP Port
Designed to install the SFP module. T1600G-28TS features 4 individual SFP ports
and supports 1000M SFP module connection only.

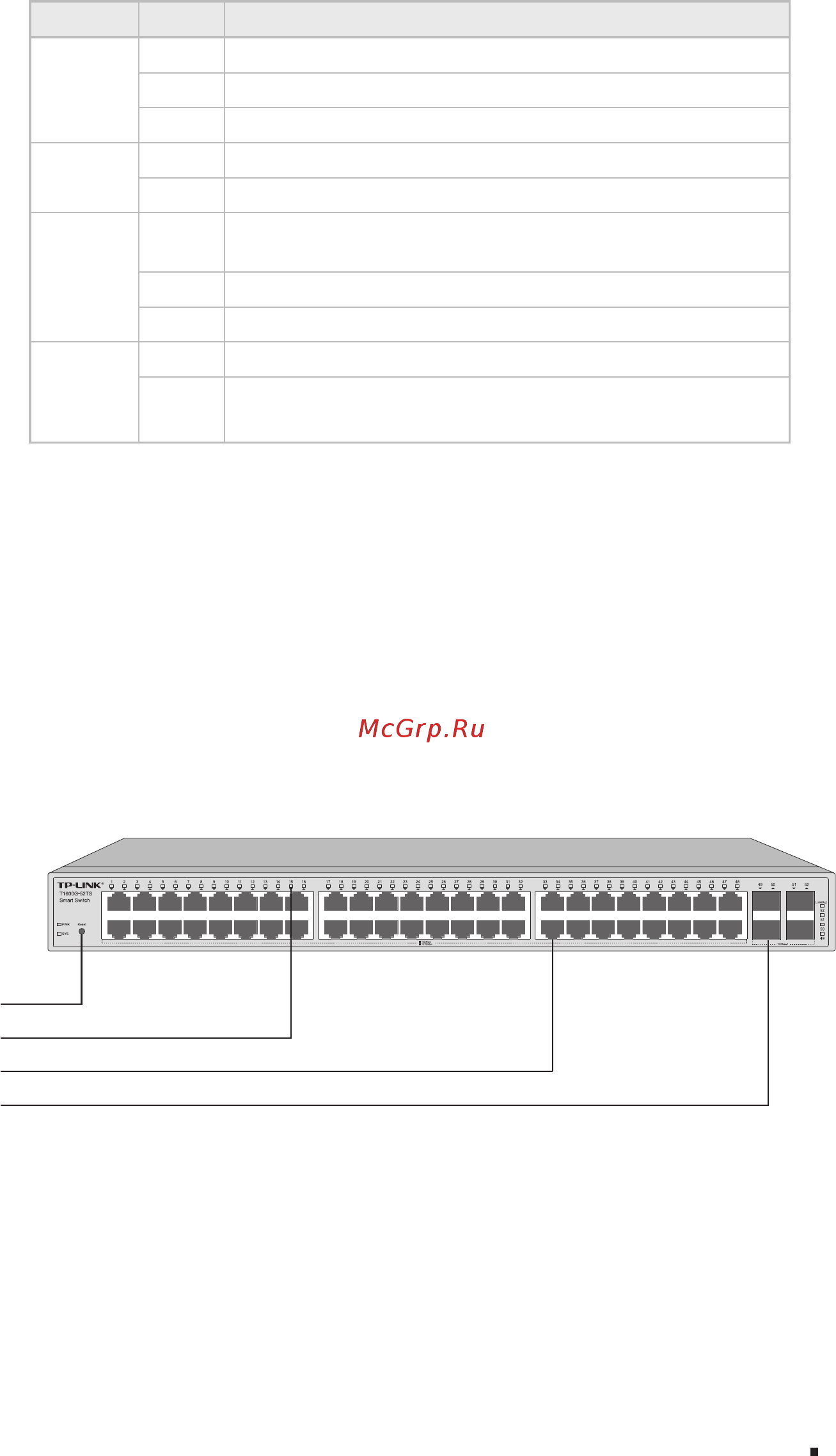

The front panel of T1600G-52TS is shown as the following figure.
10/100/1000Mbps RJ45 Port
SFP Port
LEDs
RESET
Figure 1-2 Front Panel of T1600G-52TS
Reset
Press this button for 5 seconds or above to reset the software setting back to
factory default settings.
