JetStream Gigabit Smart Switch
Introduction
03
LEDs
LED Status Indication
PWR
On The switch is powered on
Off The switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
SYS
Flashing The switch works properly
On/Off The switch works improperly
10/100/
1000Mbps
(port 1-48)
Green
On
A 1000Mbps device is connected to the corresponding
port, but no activity
Flashing Data is being transmitted or received
Yellow
On
A 10/100Mbps device is connected to the
corresponding port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Link/Act
(port 49-52)
On
A 1000Mbps device is connected to the corresponding
SFP port but no activity
Flashing Data is being transmitted or received
Off
A 10/100Mbps device or no device is connected to the
corresponding SFP port
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding 10/100/1000Mbps LED.
SFP Port
Designed to install the SFP module. T1600G-52TS features 4 individual SFP ports
and supports 1000M SFP module connection only.

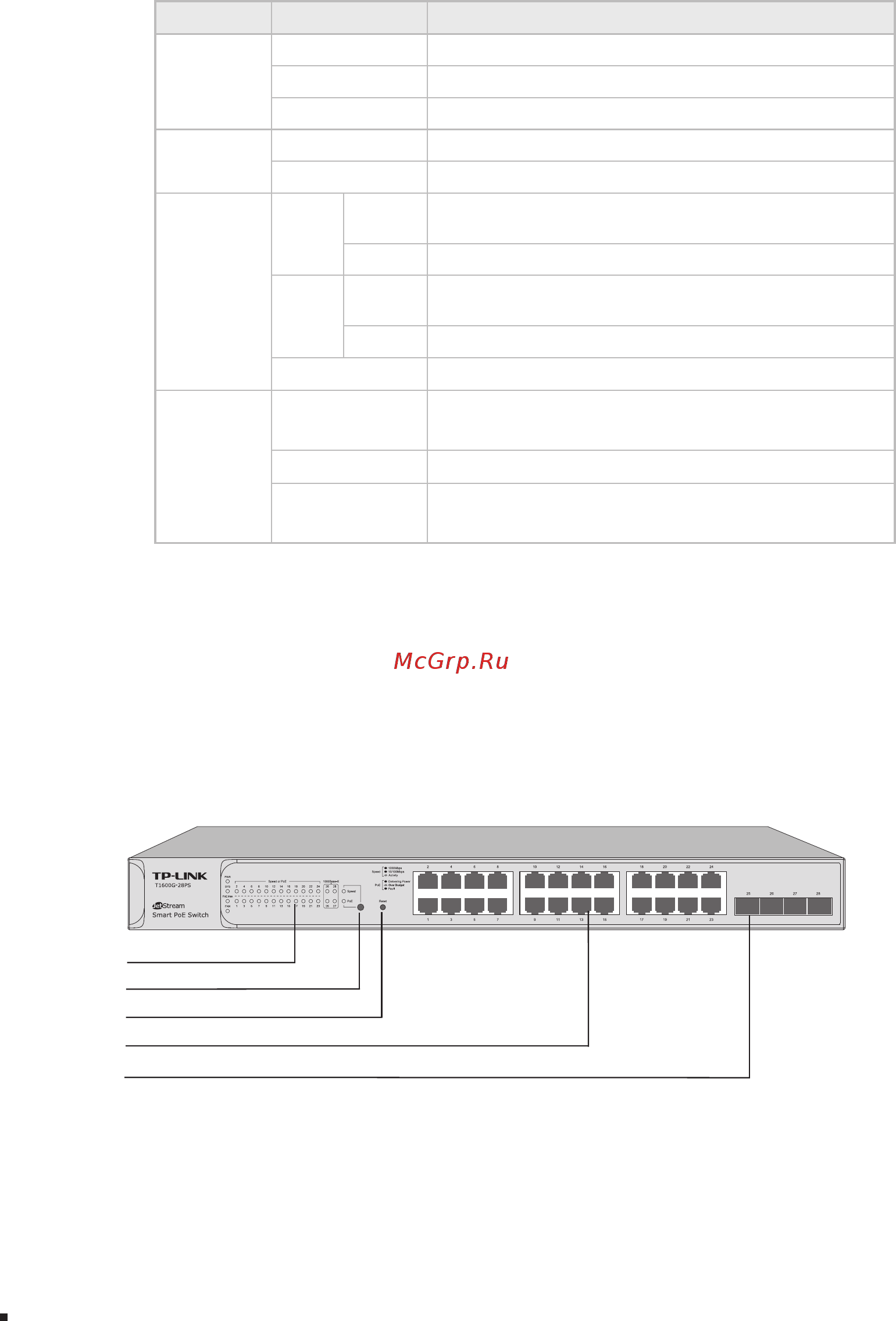

The front panel of T1600G-28PS is shown as the following figure.
Reset
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
LED Mode Switch Button
LEDs
T1600G-28PS has an LED mode switch button which is for switching the LED
status indication. When the Speed LED is on, the port LED is indicating the data
transmission status. When the PoE LED is on, the port LED is indicating the power
supply status. By default, the Speed LED is on. Pressing the mode switch button,
