JetStream Gigabit Smart Switch

Introduction

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Speed or PoE LED.

SFP Port

Designed to install the SFP module. T1600G-52PS switch features 4 individual SFP

ports and supports 1000M SFP module connection only.

Port Feature

Model 10/100/1000Mbps RJ45 Port SFP Port

T1600G-28TS 24 4

T1600G-52TS 48 4

T1600G-28PS 24 4

T1600G-52PS 48 4

■

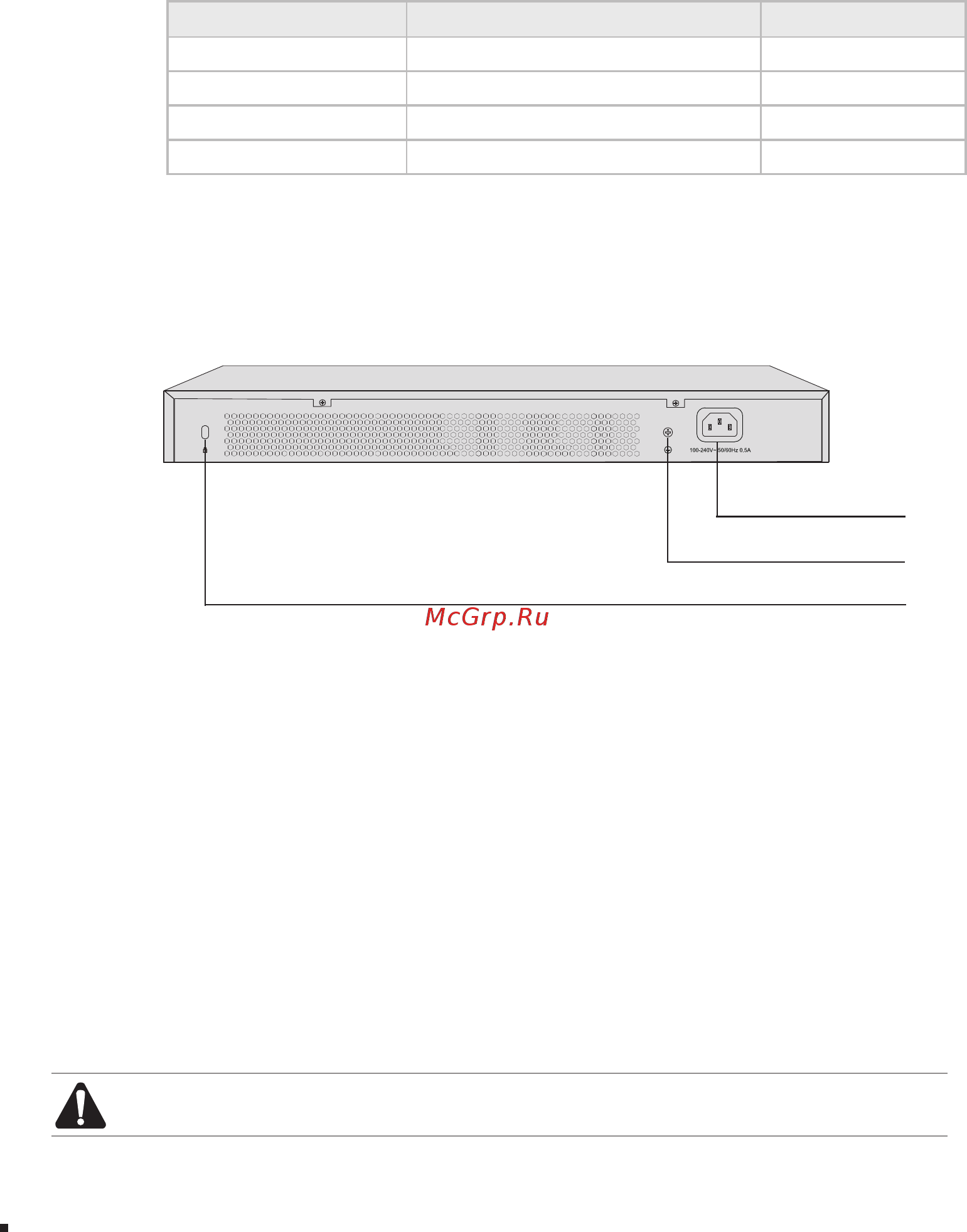

Rear Panel

The rear panel of T1600G-28TS/T1600G-52TS/T1600G-28PS/T1600G-52PS features

a Kensington security slot, a grounding terminal and a power socket. Here we take

T1600G-28TS for example.

Groundin g Terminal

Powe r So cket

Kensington Security Slot

Figure 1-3 Rear Panel

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being

stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the

power supply meets the requirement of the input voltage.

Caution: Please use the provided power cord.
