Aten CE774 Описание и спецификации продукта онлайн
ATEN International Co., Ltd.
3F., No.125, Sec. 2, Datong Rd., Sijhih District., New Taipei City 221, Taiwan
Phone: 886-2-8692-6789 Fax: 886-2-8692-6767
www.aten.com E-mail: marketing@aten.com
© Copyright 2014 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd.
All rights reserved. All other trademarks are the property of their
respective owners.
Printed 09/2014 V3.0

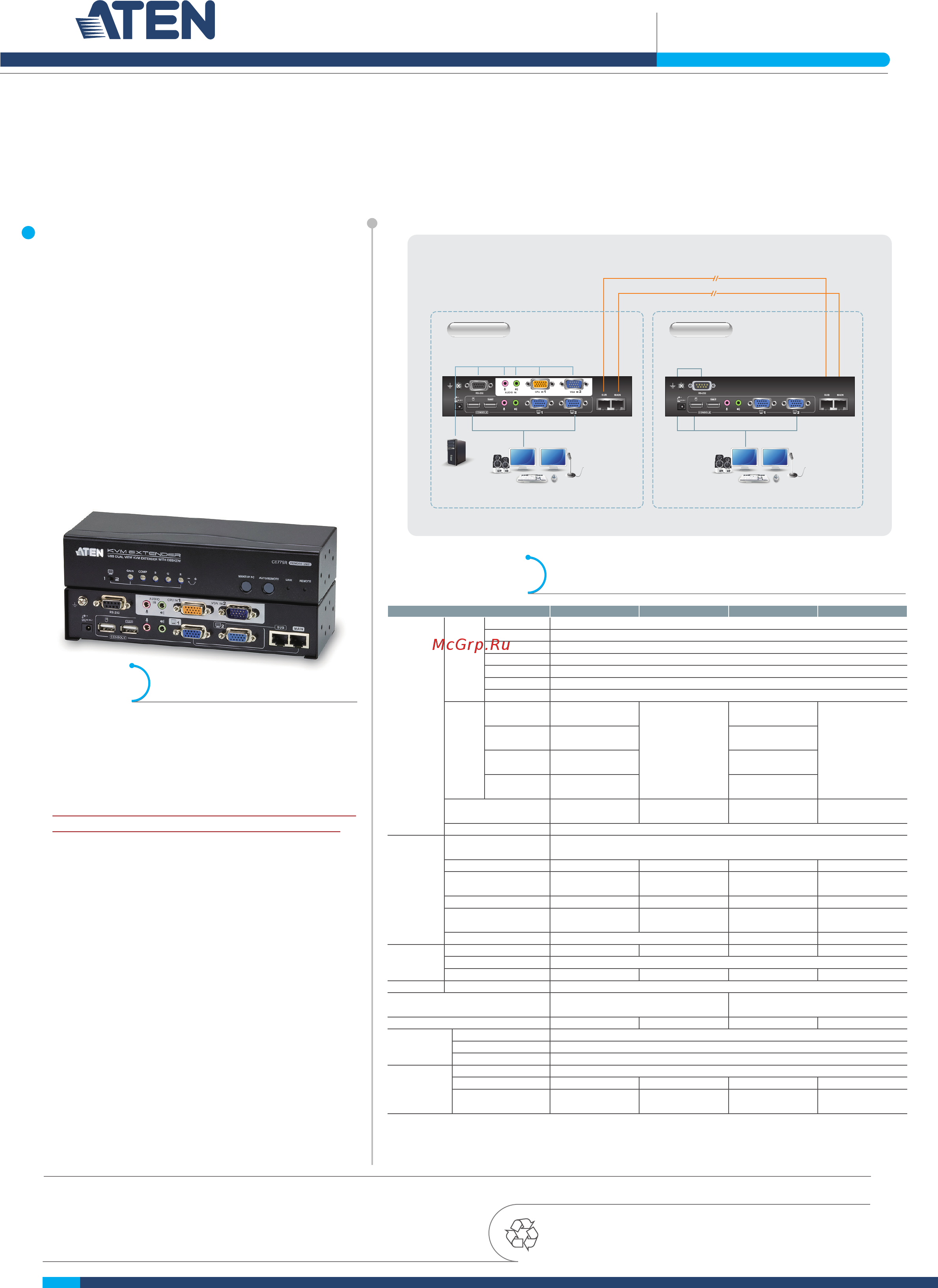

SOHO & SMB Solutions
CE774/CE775
CE774 USB Dual View KVM Extender
CE775 USB Dual View KVM Extender with Deskew
Specifi cation
Features
ATEN CE774/CE775 Dual View KVM Extenders (with Deskew
function for CE775) allows access to a computer system from
a remote Dual View console up to 300 m away. The dual view
function provides support for two displays, allowing the video
output to seamlessly display on two monitors. Its advanced PC
Wake- Up feature that allows you simply uses a pushbutton
from the remote dual view console to wake a PC at the local
site via RS-232, no need to go to the local site to wake up
the PC. It eliminates the need for traveling back and forth
between the local computer and remote console, effi cient and
fl exible.
Use the improved built-in front panel tuners to easily adjust the
picture quality. In addition, you can automatically synchronize
the time delay of RGB signals in order to compensate for
distance (CE775), easy and fast than ever.
• Dual View Support - connect two screens to transmit two
video output signals to a remote site up to 300 m away
using inexpensive Cat 5e/6 cables
• Dual Console operation - control your system from both
the local and remote USB keyboard, monitor, and mouse
consoles
• Deskew Function (CE775 only) – automatically synchronizes
the time delay of RGB signals to compensate for distance
• PC Wakeup support - from the remote console, simply use a
pushbutton to wake a computer at the local site via RS-232
• Superior video quality –
CE774: 1920x1200@60Hz(30m), 1600x1200@60Hz(150m)
CE775: 1920x1200@60Hz(150m), 1280x1024@60Hz(300m)
• Gain/Compensation Control – adjusts signal strength in
order to compensate for distance
• On Screen Display (CE775 only) - conveniently adjust video
quality with the intuitive OSD menu system
• RS-232 Channel – allow you to connect to a serial terminal,
or serial devices such as touchscreens and barcode scanners
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air
voltage 15KV)
• Sun/Mac keyboard support and emulation
*
• Spports Wide Screen formats**
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
** The EDID data for a widescreen is sent from the local video
output port. For widescreen modes and displays connect the
monitor to the local video output port or use an ATEN EDID
emulator.
Function CE774L CE774R CE775L CE775R
Connectors
Console
Ports
Keyboard 1 x USB Type A Female (White)
Video 2 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speakers 1 x Mini Stereo Jack Female (Green)
Mic. 1 x Mini Stereo Jack Female (Pink)
Main 1 x RJ-45 Female (Black)
Sub 1 x RJ-45 Female (Black)
KVM
Ports
Keyboard /
Video / Mouse
1 x SPHD-17
Female (Yellow)
N/A
1 x SPHD-17
Female (Yellow)
N/A
Speakers
1 x Mini Stereo Jack
(Green)
1 x Mini Stereo Jack
(Green)
Mic.
1 x Mini Stereo Jack
(Pink)
1 x Mini Stereo Jack
(Pink)
VGA Input
1 x HDB-15 Male
(Blue)
1 x HDB-15 Male
(Blue)
RS-232
1 x DB-9 Female
(Black)
1 x DB-9 Male
(Black)
1 x DB-9 Female
(Black)
1 x DB-9 Male
(Black)
Power 1 x DC Jack (Black)
Switches
Operating Mode
Selection
1 x Pushbutton
Wakeup PC N/A 1 x Pushbutton N/A 1 x Pushbutton
Video Output Port
Selection
N/A 1 x Slide Switch N/A 1 x Slide Switch
Video Gain Tuner N/A 1 x Knob N/A 1 x Knob
Video Compensation
Tuner
N/A 1 x Knob N/A 1 x Knob
RGB Tuner N/A N/A 3 x Knob
LEDs
Local 1 (Green) N/A 1 (Green) N/A
Remote 1 (Green)
Link N/A 1 (Green) N/A 1 (Green)
Emulation Keyboard / Mouse USB
Video
1920 x 1200 @ 60Hz (30 m); 1600 x
1200 @ 60Hz (150 m)
1920 x 1200 @ 60Hz (150 m); 1280 x
1024 @ 60Hz (300 m)
Power Consumption DC5.3V/4.38 W DC5.3V/7.95W DC5.3V/4.38 W DC5.3V/10.27 W
Environment
Operating Temp. 0–50ºC
Storage Temp -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.69 kg 0.69 kg 0.69 kg 0.69 kg
Dimensions
(L x W x H)
20.00 x 7.62 x 4.20
cm
20.00 x 7.62 x 4.20
cm
20.00 x 7.62 x 4.20
cm
20.00 x 7.62 x 4.20
cm
CE775L (Rear)
CE775R (Rear)
RemoteLocal
Cat 5/6 1000 feet (300m)
ConsoleConsole
