Chapter 4. Browser Operation

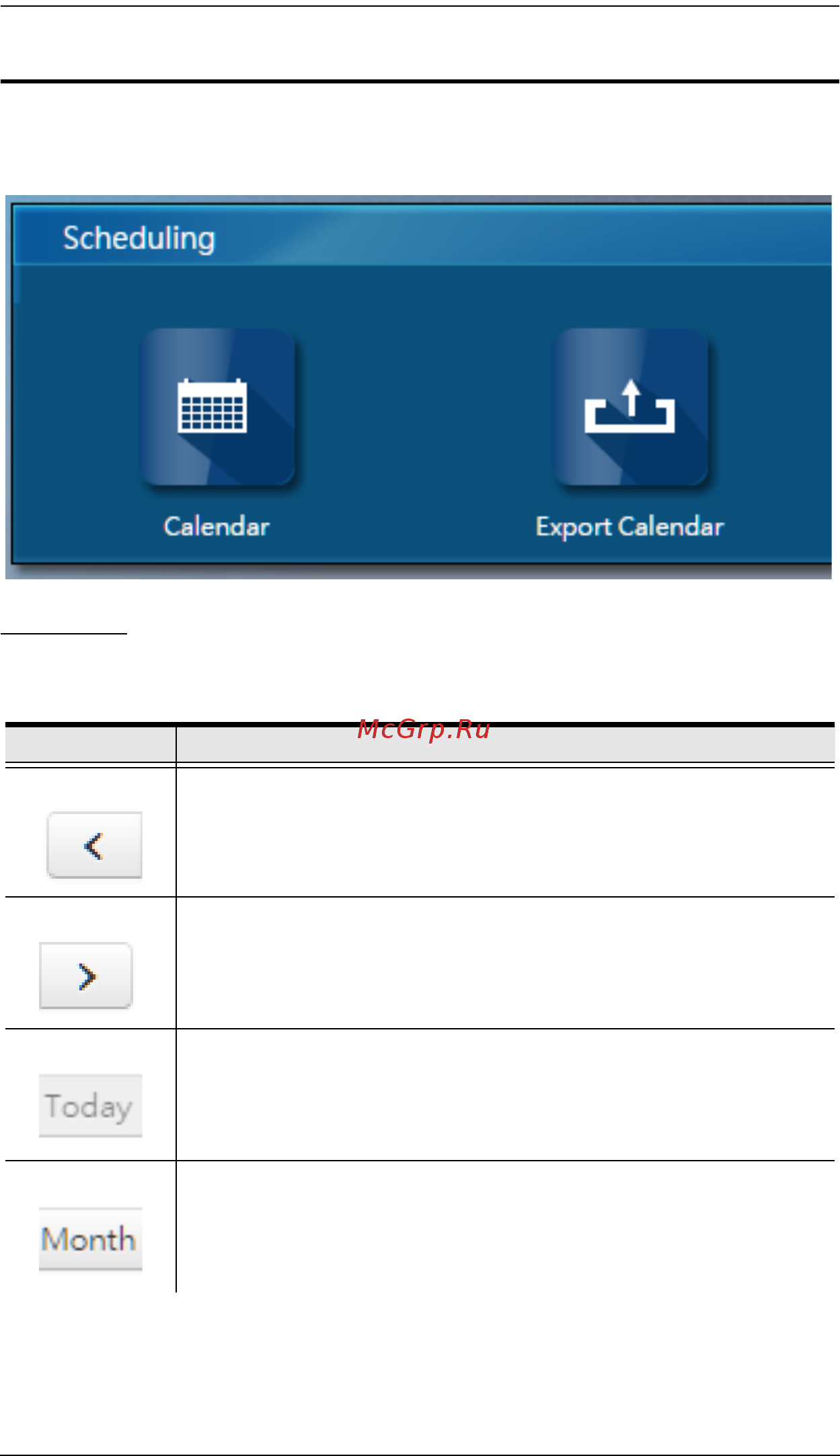

Scheduling

Scheduling is located below the Profile options. Scheduling allows you to

queue and play profiles in sequence for a specific amount of time.

Calendar

Clicking on the [Calendar] icon will display a profile schedule. The following

options are available for browsing and viewing the [Calendar].

Option Description

The Left button scrolls to the previous month/week/day.

The Right button scrolls to the next month/week/day.

The Today button returns you to the current month/week/day.

The Month button displays the Calendar in monthly increments.
