VC812 User Manual

Utility Tool

The VC812 HDMI to VGA converter with Scaler comes with a software CD

that contains the VC812 Utility Tool for quick and easy configuration of the

device.

To manage the VC812 using the utility tool, connect your computer to the

installation via the Mini USB port. Insert the software CD into the computer’s

optical disk drive, and double-click on the application file contained within to

run it. You can also copy this file into your computer’s local drive.

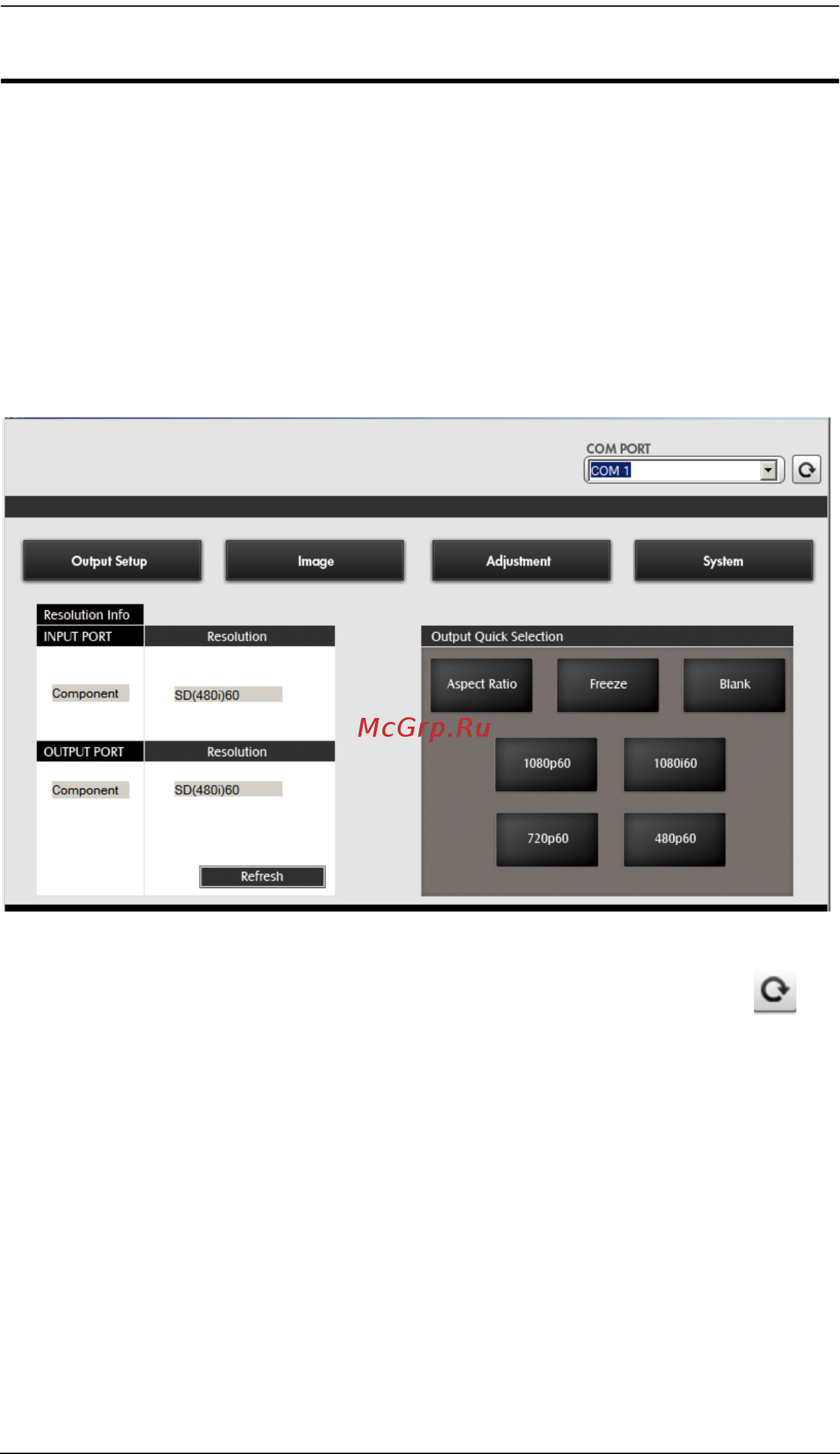

Upon execution of the Utility Tool, the Main Screen displays:

In the Main Screen, you can do the following actions:

 Select the COM PORT you want to use. Click the refresh button ( ) to

check the com port connection and refresh the selection.

 View the Resolution Info of the HDMI input source, as well as the VGA

display device. Click Refresh to have the VC812 check the input/output

source and display the latest information.

 Select the Output Quick Resolution, which enables you to manipulate

the display’s Aspect Ratio, as well as Freeze or Blank the screen. You can

also quickly select the output resolution you want to use. Options are:

1080p60, 1080i60, 720p60 and 480p60.
