Hardware Overview

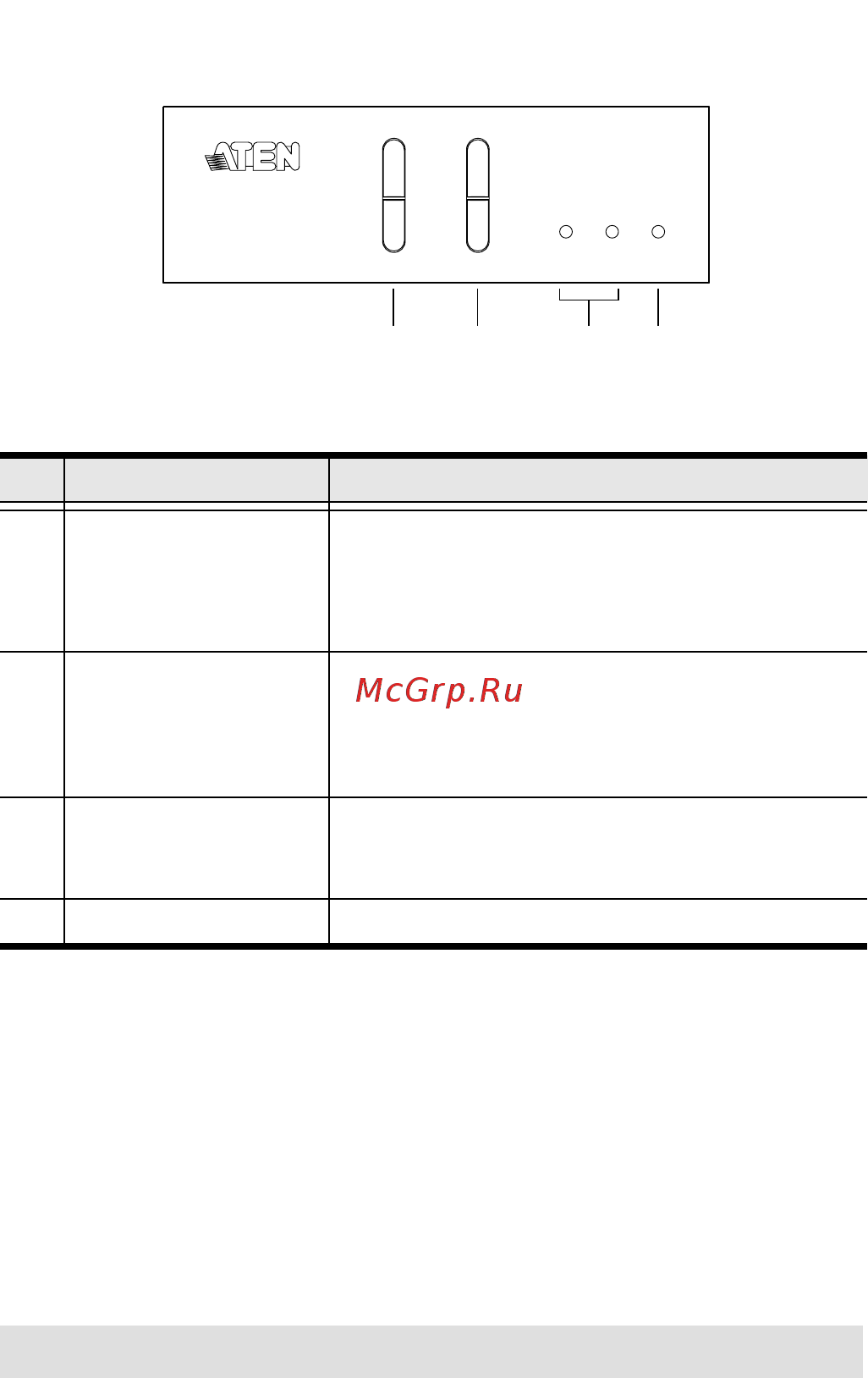

VS-0202 Front View*

* The front panel of the VS-0204 is identical to that of the VS-0202, except that it

has two additional Input Select Switches.

No. Description Function

1 Display 1 Input Select

Switch

This switch selects the input that will be sent to

output 1.

 Green LED On indicates display from Input 1

 Orange LED On indicates display from Input 2

2 Display 2 Input Select

Switch

This switch selects the input that will be sent to

output 2.

 Green LED On indicates display from Input 1

 Orange LED On indicates display from Input 2

3 Source LEDs Each of these LEDs corresponds to an input port.

A lit LED indicates data transmission from the

source connected to its corresponding input port.

4 Power LED Lights to indicate that the unit is receiving power.

12 43
