- 6 -

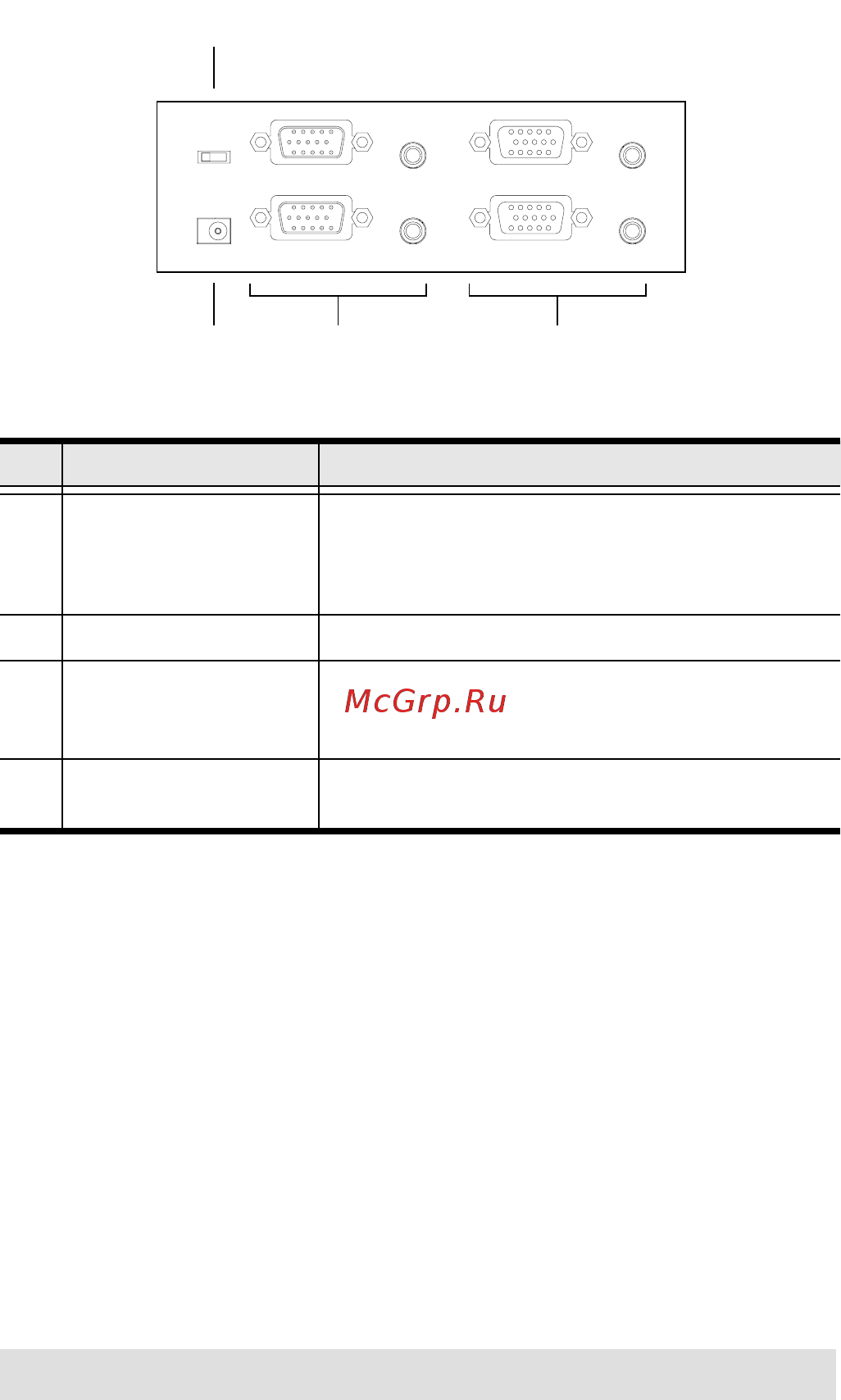

VS-0202 Rear View*
* The rear panel of the VS-0204 is identical to that of the VS-0202, except that it
has two additional Video/Audio OUT ports.
No. Description Function
1 Video Gain Switch
(VS-0202 only)
Adjust this three position switch to improve video
signal strength. It is especially useful when the
monitor cable is longer than a few meters or when
cascading the video signal to other video splitters.
2 Power Jack The Power Adapter cable plugs in here.
3 Video / Audio IN Ports The video and audio cables from the computer’s
video (monitor) and audio (speaker) output ports
plug in here.
4 Video / Audio OUT
Ports
The video and audio cables from the monitors
and speakers plug in here.
1
2
3 4
VS-0202_0204_manual.fm Page 6 Friday, March 3, 2006 3:51 PM
