ECS Elitegroup HDC-M [9/56] Introducing the motherboard

Introducing the Motherboard

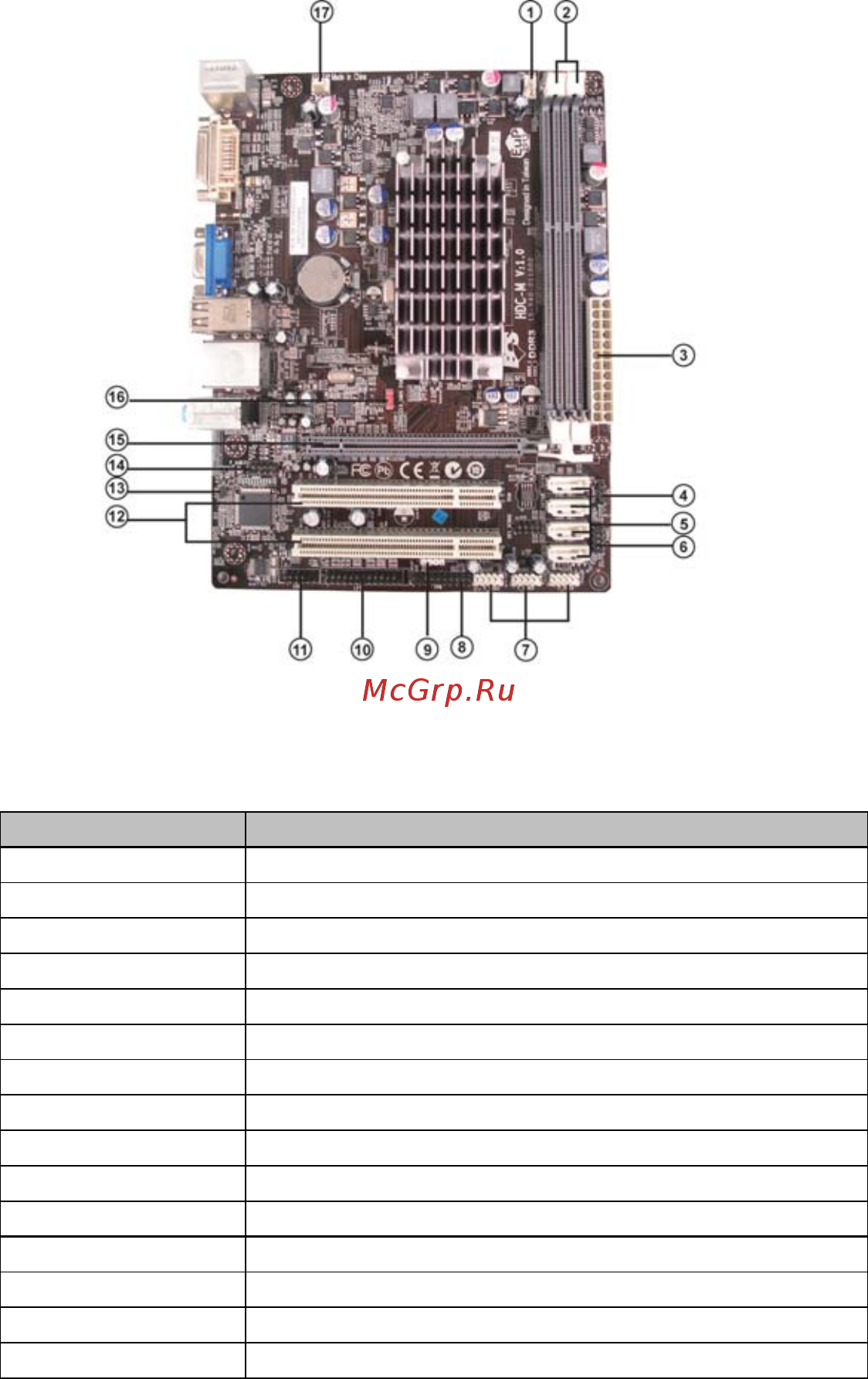

Motherboard Components

Table of Motherboard Components

This concludes Chapter 1. The next chapter explains how to install the motherboard.

LABEL COMPONENTS

1. CPU_FAN CPU cooling fan connector

2. DDR3_1~2 240-pin DDR3 SDRAM slots

3. ATX_POWER Standard 24-pin ATX power connector

4~6. SATA1~4 Serial ATA connectors

7. F_USB1~3 Front panel USB headers

8. TPM Trusted Platform Module header (Optional)

9. SPDIFO SPDIF out header

10. LPT Onboard parallel port header

11.COM Onboard serial port header

12. PCI1,2 32-bit add-on card slot

13. CASE CASE open header

14. F_AUDIO1 Front panel audio header

15. PCIE16x PCI Express 16x slot for graphics interface

16. CLR_CMOS Clear CMOS jumper

17. SYS_FAN System cooling fan connector
