36
Using BIOS
Parallel Port (Enabled)
Use this item to enable or disable the parallel LPT or LPTE port.
Device Settings (IO=3F8h;IRQ=5)
Use this item to setting devices parameter.
Change Settings (Auto)
Use this item to change the settings automatically.
Device Mode(Standard and B1-dire...)
This item allows you to select the device mode for a better operation environment.
Press <Esc> to return to the Super IO Configuration Menu page.
Press <Esc> to return to the Advanced Menu page.

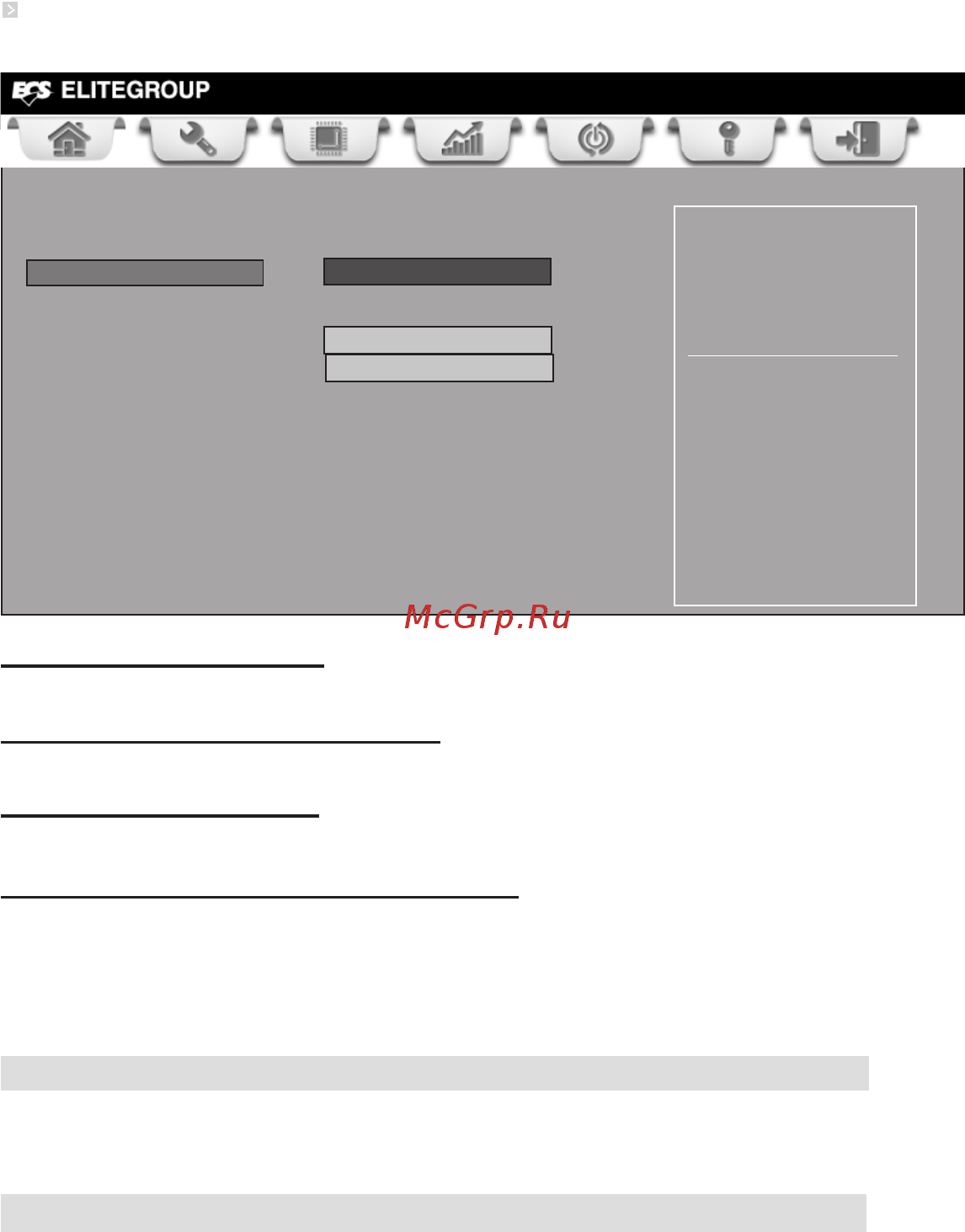

Parallel Port Configuration
Use this item to show the information of Parallel port configuration.
Main Advanced Chipset M.I.B III Boot Security Save & Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enable or Disable Parallel
Port (LPT/LPTE)
Parallel Port Configuration
Parallel Port Enabled
Device Settings IO=378h; IRQ=5;
Change Settings Auto
Device Mode Standard and B1-dire...
